The DEVIreg™ 850 / ECtemp 850 version IV is an advanced thermostat with an LED display used for outdoor ground or roof applications. The sensors provide information about both moisture level and temperature, resulting in optimal control of the heating system.
The controller can handle up to 2 independent areas.
In the dual / combination systems it is possible to prioritize between the zones, e.g. if only a limited power output is available.
Applications:
• Roofs, gutters, downpipes, drain lines
• Ground, walkways, outdoor steps
• Road/concrete asphalt
• Mastic asphalt
DEVIreg™ Multi is 7 channel electronic programmable controller to be installed on DIN rail. Every channel can be individually set up with three control modes—with temperature sensor, time proportional power regulation without sensor, and manually on/off with time limitation. Сhannel inputs can be selected via software between 8 types of temperature sensors including NTC 15 kOhm at 25°C. Modbus RS485 opto-insulated serial interface gives the possibility for BMS control.
Verwandte Produkte
Self-limiting heating cables are designed with a temperature-dependent resistant element between two parallel copper bus wires. When the bus wires are connected to the mains, a current goes through the temperature-dependent resistant element which will then heat.
Outdoor heating cables are used for efficient snow removal and ice prevention. They provide safety for people, buildings, and the environment. It is a sustainable solution for a green and clean future through low energy consumption during the frost period.
The outdoor heating mats are designed for melting ice and snow and may be installed into special mastic for ground, grass and asphalt constructions. Mats are available in different lengths for two power supply options—230 and 400 V.
Accessories
Dokumente
Tools und Apps
The Plugin supports your engineering and design journey by making your work faster due to simple functionalities in calculating all lengths, dimensions and product data of cables and mats. It covers all applications within Electric Heating projects: Electric floor heating, Ice & Snow melting systems, Pipe tracing, Cold stores, Sport fields, Vineyards etc.
By utilizing Plugin, you will reduce design time for the project, provide all necessary information for installers in HTML/PDF format: BoM, resistance value check list, warranty list format. It means all project information can be consolidated in one file.
Plugin can be used with AutoCAD 2017-2023.
Gewährleistung
At Danfoss, it is important for us to deliver high-quality products with long-lasting effects. Should you, against all expectations, experience a problem with your product, Danfoss offers a warranty for electric heating products valid from the date of purchase that was no later than 2 years from production date.
Depending on the product, the product guarantee is valid for two years, five years, or twenty years.
Product warranty covers costs for:
- product replacement with a new comparable product or repair of the product
- transportation costs
Fallstudien

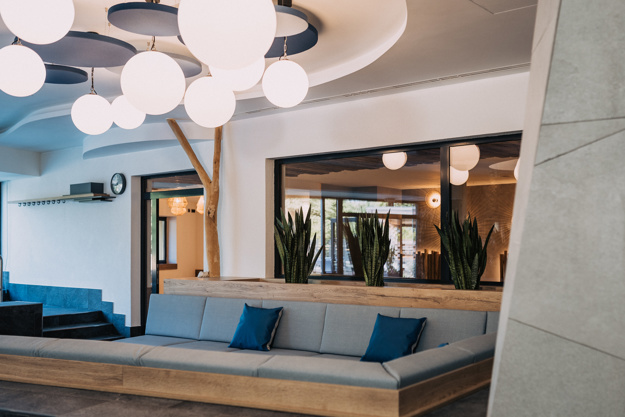

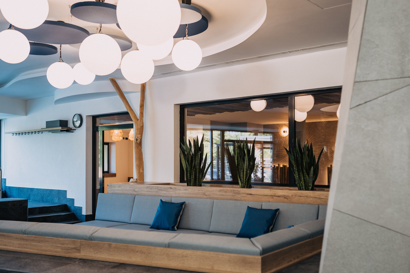

Das AGGUA in Troisdorf direkt an der Agger ist bei Bade- und Saunagästen weithin bekannt und beliebt. Ein besonderes Erlebnis bietet das Pfahlbau-Saunadorf. Ein schwerer technischer Defekt erforderte eine umfassende Sanierung. Mit DEVI Produkten und langjährigem Know How konnte eine innovative Lösung zur Sanierung der Beheizung des Außensteges verwirklicht werden.
