Semi-welded plate heat exchanger for industrial refrigeration ammonia applications

  • Overview
  • Documents
  • Related products
  • Support

Meet application needs with maximum performance

Our semi-welded plate heat exchangers are optimized for industrial refrigeration applications. The semi-welded plate heat exchangers from Danfoss are designed for ammonia systems and can be used for applications such as condensers, flooded and pumped evaporators, sub-coolers, desuperheaters, superheaters, economizers and oil coolers. The product range includes the sizes SW19-SW59, with more to come, and can handle temperatures ranging from -40°F up to 248°F and pressure ranges up to 300 psi.

Features and benefits

Excellent heat transfer capabilities

Reliable design - operational safety

Easy product configuration

Comprehensive testing

Part of diversified product range for IR systems

New plate design delivers excellent heat transfer capabilities

The SW19-59 range features excellent heat transfer capabilities via improved thermal performance due to optimized plate geometry supporting high turbulent ammonia flow enabling a compact design and supporting lower charge for your refrigeration.

New gasket system improves plate pack stability

The new gasket system ensures high gasket stability and optimal plate alignment due to new gasket and gasket grove design, enabling easy and fast service and maintenance. The new design improves the sealing effect and prevents gasket-blow out. Furthermore, the risk of contamination is reduced due to the double gasket barrier that will drain potential leakages outside of the plate pack. The new gasket system is glue free for easy maintenance.

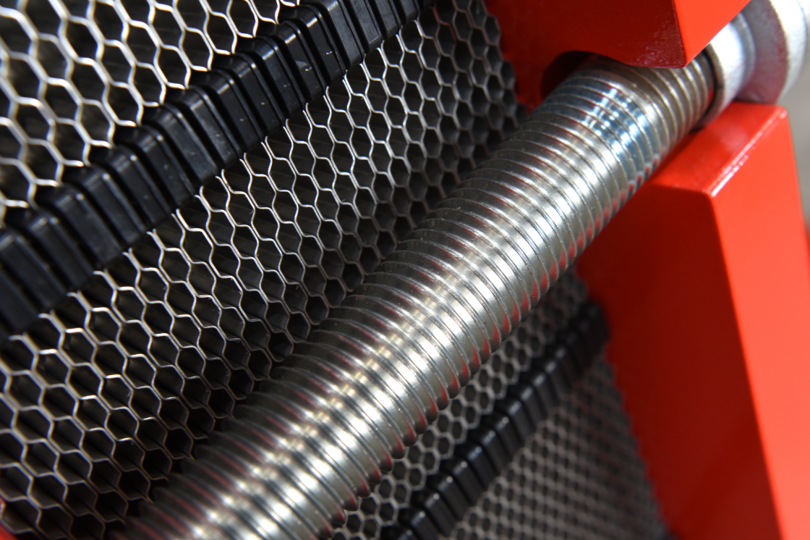

Easy maintenance and service

The new range is easy to service and maintain. Assembly of the plate heat exchanger is fast and safe thanks to fixed bolt heads and lock bushes that prevent the nut and bolt head from rotating when opening and closing the unit. The enhanced gasket system ensures easy and precise plate pack alignment, which is easy to access due to the non-corrosive nylon roller.

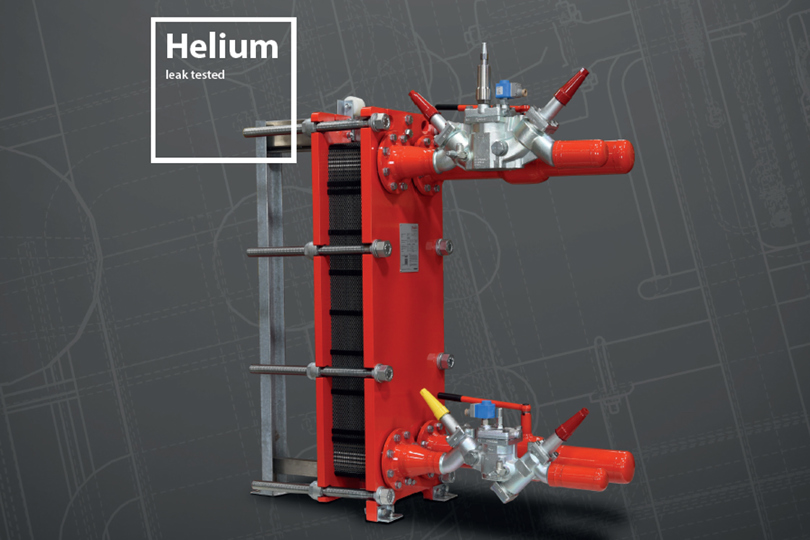

High quality product - fully tested

The Danfoss semi-welded plate heat exchanger design has been verified through thermal and mechanical tests. Furthermore, each semi-welded plate cassette and fully assembled plate heat exchanger are thoroughly leak tested with helium before they leave the Danfoss factory.

Watch video

Explore the new semi-welded plate heat exchanger and see its innovation in design and production.

Download brochure

The new series of semi-welded plate heat exchangers has been optimized for industrial applications and include improvements to both plate design and the gasket system.

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide Plate Type Heat Exchangers, Single plate and Semi-welded Installation, Commissioning and Maintenance English Multiple 22 Jul, 2019 6.1 MB .pdf
User guide Plate Type Heat Exchangers, Single plate and Semi-welded Installation, Commissioning and Maintenance German Multiple 22 Jul, 2019 6.1 MB .pdf
User guide Plate Type Heat Exchangers, Single plate and Semi-welded Installation, Commissioning and Maintenance Danish Multiple 22 Jul, 2019 6.1 MB .pdf
User guide Plate Type Heat Exchangers, Single plate and Semi-welded Installation, Commissioning and Maintenance French Multiple 22 Jul, 2019 6.1 MB .pdf
User guide Plate Type Heat Exchangers, Single plate and Semi-welded Installation, Commissioning and Maintenance Spanish, Castilian Multiple 22 Jul, 2019 6.1 MB .pdf
User guide Plate Type Heat Exchangers, Single plate and Semi-welded Installation, Commissioning and Maintenance Italian Multiple 22 Jul, 2019 6.1 MB .pdf
User guide Plate Type Heat Exchangers, Single plate and Semi-welded Installation, Commissioning and Maintenance Portuguese Multiple 22 Jul, 2019 6.1 MB .pdf
User guide Plate Type Heat Exchangers, Single plate and Semi-welded Installation, Commissioning and Maintenance Chinese (CN) Multiple 22 Jul, 2019 6.6 MB .pdf
User guide Plate Type Heat Exchangers, Single plate and Semi-welded Installation, Commissioning and Maintenance Polish Multiple 22 Jul, 2019 6.1 MB .pdf
User guide Plate Type Heat Exchangers, Single plate and Semi-welded Installation, Commissioning and Maintenance Russian Multiple 22 Jul, 2019 6.1 MB .pdf
Brochure Semi-welded plate heat exchanger Danish Denmark 31 Mar, 2019 2.7 MB .pdf
Brochure Semi-welded plate heat exchanger Spanish, Castilian Spain 26 Feb, 2019 8.7 MB .pdf
Brochure Semi-welded plate heat exchanger French France 26 Feb, 2019 8.8 MB .pdf
Brochure Semi-welded plate heat exchanger Italian Italy 26 Feb, 2019 8.7 MB .pdf
Brochure Semi-welded plate heat exchanger Finnish Finland 13 Mar, 2019 2.7 MB .pdf
Brochure Semi-welded plate heat exchanger Swedish Sweden 13 Mar, 2019 2.7 MB .pdf
Brochure Semi-welded plate heat exchanger English Multiple 24 Feb, 2019 10.0 MB .pdf
Brochure Semi-welded plate heat exchanger Ukrainian Ukraine 27 Apr, 2020 2.7 MB .pdf
Brochure Semi-welded plate heat exchanger German Germany 27 Aug, 2019 8.3 MB .pdf
Brochure Semi-welded plate heat exchanger Polish Poland 05 Aug, 2019 2.7 MB .pdf
Brochure Semi-welded plate heat exchanger Portuguese Portugal 05 Aug, 2019 2.6 MB .pdf
Brochure Semi-welded plate heat exchanger Turkish Turkey 05 Aug, 2019 2.7 MB .pdf
Brochure Semi-welded plate heat exchanger Vietnamese Vietnam 20 Nov, 2019 8.9 MB .pdf
Brochure Полусварные пластинчатые теплообменники Russian Multiple 05 May, 2019 2.7 MB .pdf

Related products

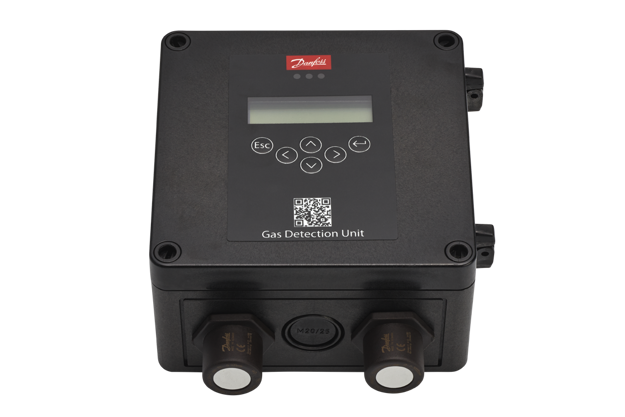

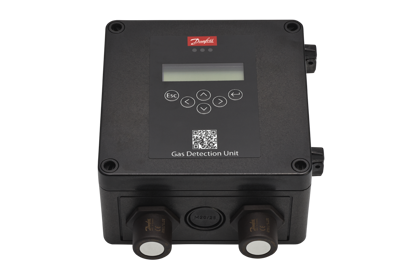

  • Product photo for the heavy duty gas detector for industrial refrigeration by Danfoss
    Gas detection solution for industrial refrigeration

    Based on a digital platform, Danfoss' next generation gas detectors deliver multiple communication and integration options for easy calibration and maintenance, improved reliability, built-in cost effectiveness, and complete regulatory compliance.

  • Product photo of the family of pilot valves for ICS Flexline™ by Danfoss
    Pilot valves for ICS Flexline™

    Featuring full backwards compatibility, Danfoss' complete line of pilot valves for ICS Flexline™ reduces the number of variants from eight to four, covers all regulation, types, and ranges, and are compatible with HCFCs, non-flammable HFCs, ammonia, and CO2

  • Product photo of the ICV Flexline™  with flanges by Danfoss
    ICV Flexline™ with flanges

    The ICV with flanges is available in five sizes: ICV 25 PM, ICV 35 PM, ICV 40 PM, ICV 50 PM and ICV 65 PM.

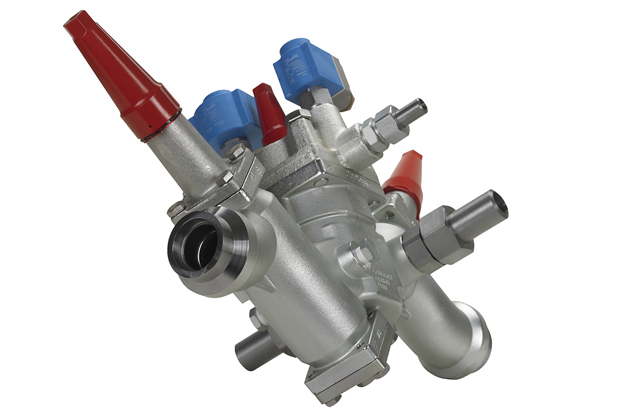

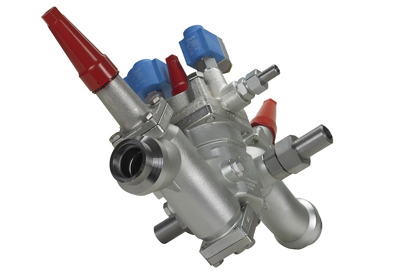

  • Product photo of the ICF Flexline™ 50-65 valves by Danfoss
    ICF Flexline™ 50-4 and 65-3 valves

    With the ICF 50-4 and ICF 65-3 valves, the ICF Flexline™ range covers every DIN size, are compatible with low-GWP refrigerants, can withstand pressures up to 755 psi, operate at a 36% higher capacity, and feature an 86% lower pressure drop than similar valves, resulting in superior efficiency and versatility.

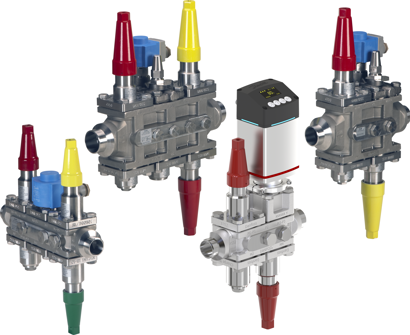

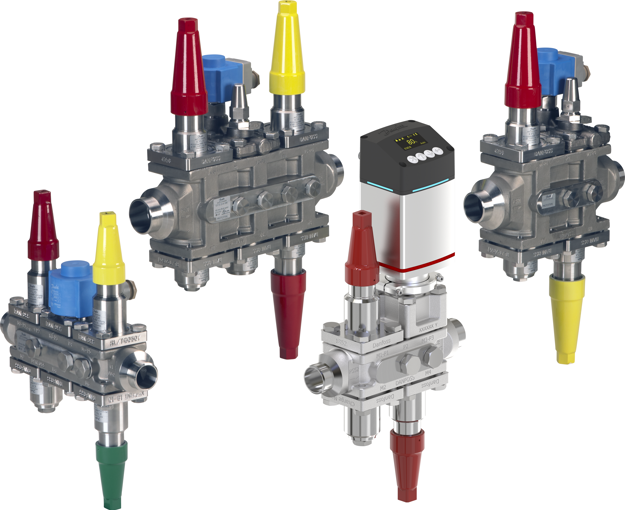

  • Product photo of the ICF stainless steel valve station by Danfoss
