LX cables - easy, flexible, reliable warmth

Danfoss offers reliable LX cables which are suitable for both residential and commercial applications. LX Cables are typically installed with renovations, in bathrooms, basements and kitchens to heat tiles, stone, or engineered wood flooring.



Danfoss LX Cable offers the same quality cables that are embedded in our LX Mats, but the loose cable option allows for flexible installation. To improve the ease of installation, we have also given both the cable and the cold lead of the LX Cable a round profile to prevent curling and make it easier to bend. It also features fully screened twin conductor cables and an easy-strip, reinforced single-cable cold lead. Danfoss LX Cables are cost-effective, versatile, easy to install, and exceptionally durable.

Features and benefits

Genuine 20-year warranty

Easy to install - flexible installation options

Minimal thickness-only add 3/16" height to the floor

Safety approved for wet locations

Single point connection

Eliminates electromagnetic fields (EMFs)

Technical Data:



Cable Construction: Twin Conductor

Cable Diameter: 3/16" (4.8mm)

Rated Voltage: 120V, 240V

Max. Rated Temperature: 212°F (100°C)

Conductor Insulation: Teflon™ FEP

Outer Insulation: PVC


Installation

LX Mat and Cable Installation video

Install the LX Mat & Cable system in minutes. Video includes install tips and tricks.

Flexibility

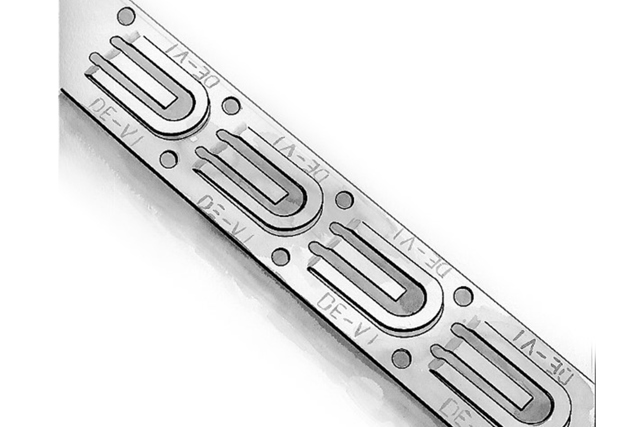

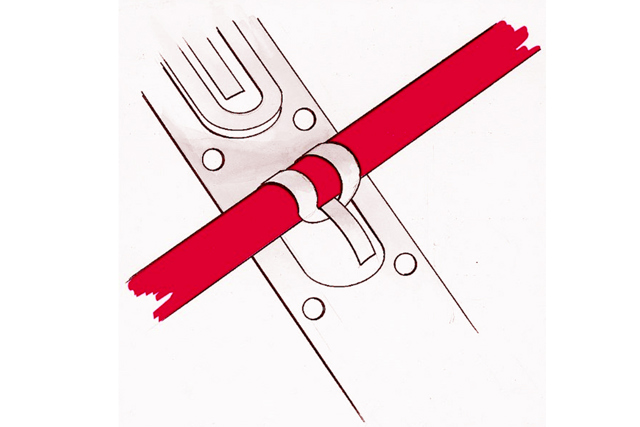

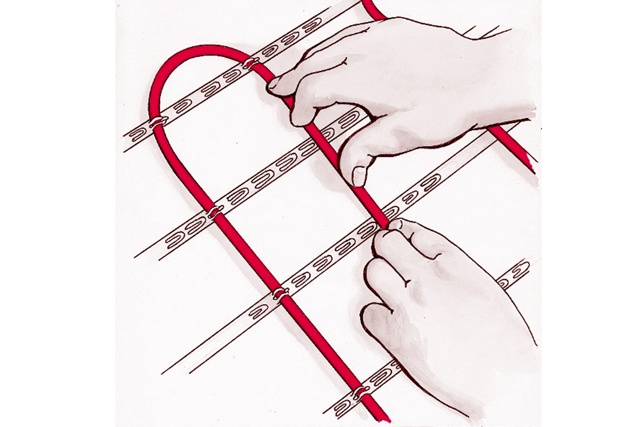

LX Cable strapping may be spaced with 2", 3", or 4" centers allowing for easy in-field adjustments for odd shaped areas or rooms, as well as the ability to customize the wattage output per square foot.

Documents

Type Name Language Valid for Updated Download File type
Catalog - AF Electric Heating Product Catalog English United States 02 May, 2019 2.5 MB .pdf
Catalog - AF Electric Heating Product Catalog English United States 08 Mar, 2019 14.8 MB .pdf
Catalog Electric Heating Product Catalog VKAPA1022_2 English United States 02 May, 2019 2.5 MB .pdf
Catalog - AF Electric Heating Product Catalog VKAPA922 English United States 05 Feb, 2019 2.6 MB .pdf
Data sheet - AI LX Cable Datasheet English United States 01 Nov, 2018 399.8 KB .pdf
Data sheet LX Cable Datasheet English United States 02 May, 2019 233.2 KB .pdf
Data sheet LX Cable Floor Heating Specification Sheet English United States 02 May, 2019 23.1 KB .pdf
Operating guide LX Cable Installation Manual English United States 02 May, 2019 1.0 MB .pdf
Brochure LX Cable Trifold Brochure English United States 02 May, 2019 929.0 KB .pdf

Warranty

Warranty Registration Form

Warranty Registration Form

Register your LX, TX, or GX mats and cables using the online warranty registration form, and view the terms and conditions.
