Award winning snow melt control

The GX850 ACP or GX850M controllers are an ideal choice for the most optimal control.

The AWARD WINNING Danfoss GX Dual Zone Automatic Control Panel (ACP) and GX850M the most optimal solution for keeping any area free of ice and snow. The GX 850 acts on information received from sensors which register both temperature and moisture, then calculates the information ensuring that the heat will only be turned on when snow and/or ice is present. The result is increased efficiency, saving energy and minimizing operating costs.

Features and benefits

User interface allows total control of snow melting system set points

Set to maximum melting, or maximum energy savings or anywhere in between

Dual zone feature allows for energy savings

Digital sensors provide precise feedback on snow and ice conditions

Fault finding program detects and alarms on faults

Can be field upgraded to take advantage of new features

Integrate one to four separate sensors

Two year warranty

Product range

GX850 Dual Zone Automatic Control Panel

GX850 Dual Zone Automatic Control Panel

  • Control Voltage: 120V
  • Max. Heating Load: 150A
  • Max. Ambient Temperature: 14°F to 104°F (-10°C to +40°C)
  • Enclosure Type: NEMA 4X
  • Mounting: Wall mounted, indoors
  • Dimensions (HxWxD): 10.5" x 12.5" x 7" (267mm x 318mm x 178mm)

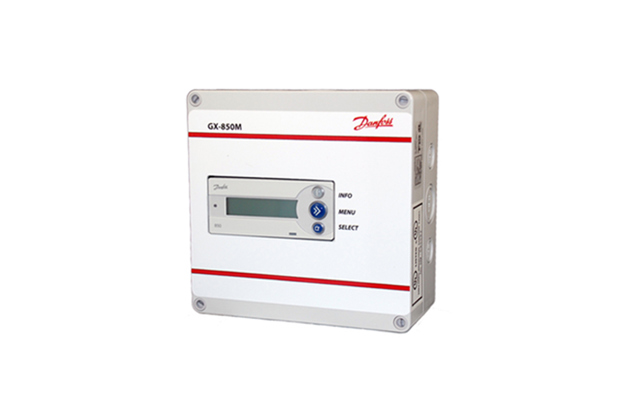

GX850M

GX850M

  • Control Voltage: 120V
  • Max. Heating Load: NA, Contactors required
  • Max. Ambient Temperature: 14°F to 104°F (-10°C to +40°C)
  • Enclosure Type: NEMA 1X
  • Mounting: Wall mounted, indoors
  • Dimensions (HxWxD): 7" x 7" x 3" (177mm x 177mm x 76mm)

Documents

Documents
Type Name Language Valid for Updated Download File type
Catalog Electric Heating Product Catalog VKAPA1022_2 English Multiple 14 Mar, 2019 2.6 MB .pdf
Brochure GX Snow Melting Brochure English Multiple 21 Aug, 2017 1.4 MB .pdf
Data sheet GX850 Automatic Control Panel (ACP) Datasheet English Multiple 31 Aug, 2016 339.8 KB .pdf
Installation guide GX850ACP/GX850M Installation Manual English Multiple 01 Oct, 2019 1.0 MB .pdf
Data sheet GX850M Controller Datasheet English Multiple 29 Jan, 2019 346.7 KB .pdf
