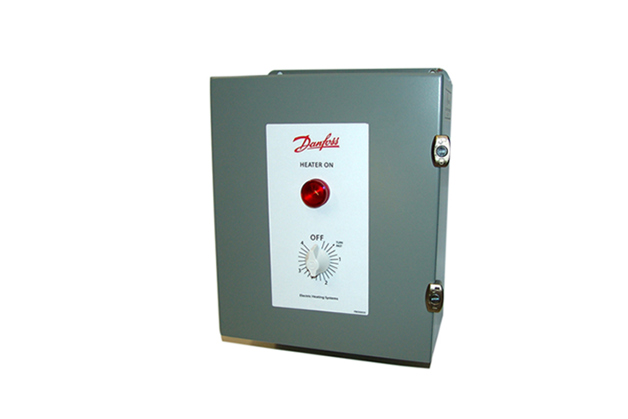

Contactor / Timer Panels

The Danfoss Contactor and Timer panels are primarily designed for snow and ice melting applications. All panels are pre-wired and UL listed complete with a NEMA 1 enclosure, wiring diagram, terminal connection block, timer (timer panels), and two or four 3-pole contactors. Timer panels can be used stand alone or in conjunction with an automatic controller. Contactor panels must be used in conjunction with an automatic controller.

Technical Data:

• Power Voltage Range: 208V - 600V
• Max. Heating Load: 300A/600A
• Control Voltage: 120V
• Enclosure Type: NEMA 1
• Mounting: Wall mounted, indoors
• Dimensions (HxWxD):10" x 10" x 4" (254mm x 254mm x 102mm), 14" x 12" x 6.5" (355mm x 305mm x 165mm)
• Timer Override: 4 Hours

Simplify your installation with the ground fault equipment protection or GFEP Panels. Danfoss GFEP panels have built-in ground fault equipment protection, minimizing the risk of faults and eliminating extra wiring installation steps and costs. The panel can be activated by a Danfoss GX850 ACP, DS controller or any other type of controller.

Technical Data:

• Power Voltage Range: 208V - 600V
• Max. Heating Load: 300A/600A
• Control Voltage: 120V
• Enclosure Type: NEMA1
• Mounting: Wall mounted, indoors
• Dimensions:12" x 12" x 6" (305mm x 305mm x 152mm),
  14" x 12" x 6.5" (355mm x 305mm x 165mm)
• GFEP: 30mA trip
