The digital thermostats used for electric heating allow the user precise control of the floor surface, air temperatures, or a combination of both.
Digital thermostats have multiple features enabling you to reduce energy waste, for instance by using timed periods. Some of our thermostats have Wi-Fi, providing the possibility to remote control of your heating systems via mobile application.
Check our application manuals via the links below to get the best recommendations for design and installation of floor heating systems.
DEVI indoor application manual
Danfoss indoor application manual
Accurate settings providing possibility to improve economy
Savings up to 30%
User definable heating
Intuitive interfaces (touch screen / button / app)
Ease of installation
Pre-settings made for schedule, comfort and away temperature
ECtemp Smart is an intuitive programmable timer thermostat to be connected to Wi-Fi and ECtemp Smart App, controllable from anywhere, at any time.
Read brochure
Control your electric underfloor heating from your smartphone device, anytime and anywhere. Balance heating costs by using heating periods or zones and increase comfort of your home.
A comfortable ambient temperature and quick response time are just a couple of the benefits electric heating offers. Learn more about these and other benefits of electric heating
Find the latest crimp machine software for your Danfoss crimp machine.

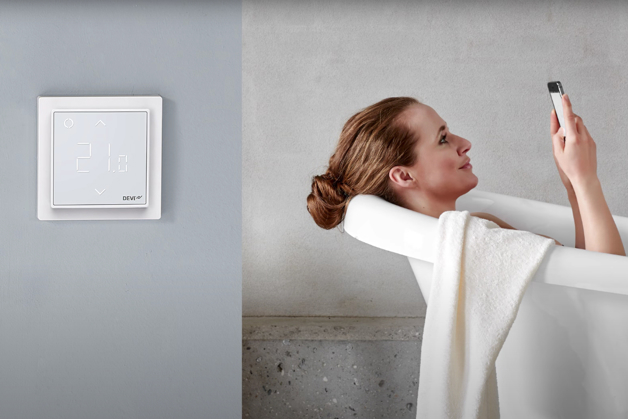

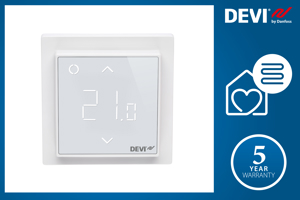

With DEVIreg™ Smart it’s easy to adjust electrical underfloor heating from the smartphone. The intuitive DEVIsmart™ App turns the smartphone into a remote control and enables homeowner to easily operate underfloor heating system at home – from anywhere in the world.

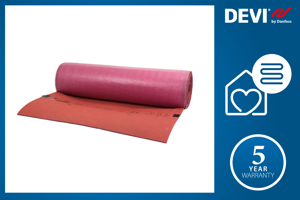

DEVIdry™ is a floor heating system consisting of a foam construction only 8 mm high with heating elements inside.

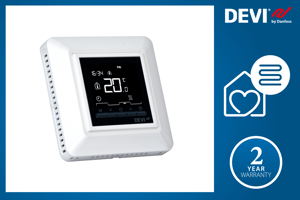

The DEVIreg™ Opti electronic thermostat is the combination of precise electrical underfloor heating control and elegant design. It is easy to install thanks to its preprogrammed settings. The open window function and low standby consumption will offer comfort with minimum stress on homeowner’s wallet.

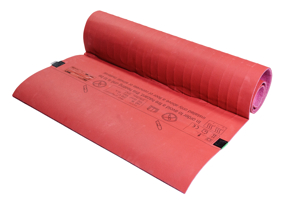

Ecdry is all-in-one heating element, consisting of a foam construction and underlay system can be used under wooden floorings, parquets, and laminates up to 22 mm.
The LDU has a compact design and features a U-style layout in one housing. Best-in-class efficiency ensures high performance and low fuel consumption, and a low noise design improves operator comfort.
Airflex expanding clutches and brakes use a rugged tire-like constricting tube, which expands to generate friction uniformly inside a drum to create torque. Available in four different series spanning a range of sizes and features, you’ll find the perfect fit for grinding mills, marine propulsion, drill rigs, and much more.
Our BDU Z-style transmission features a variable displacement pump and a fixed displacement motor. The pump features a cradle swashplate with a direct proportional displacement control. The motor uses a fixed swashplate.
Airflex constricting clutches and brakes use a rugged tire-like constricting tube, concentrating friction uniformly around a drum to create torque. Available in four different series spanning a range of sizes and features, you’ll find the perfect fit for grinding mills, marine propulsion, drill rigs, and much more.
SystemStak is a revolutionary, compact system for sandwich-mounting modular valves between a directional control valve and a standard mounting surface. SystemStak gives you a full range of complementary pressure, flow and check valve functions, while saving space, reducing installation costs and increasing efficiency in hydraulic systems.
Find relevant accessories by following this link
You can see all our videos about Electric Heating on a dedicated playlist on YouTube. Follow the link below.
Go to the Electric Heating playlist on YouTube
ECtemp™ Smart application offers wireless control of electric floor heating systems equipped with ECtemp™ Smart thermostat. The app turns your mobile device into an intuitive floor heating remote control.

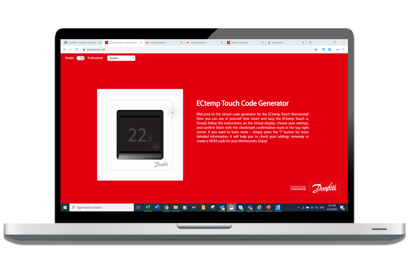

Try the virtual code generator for the ECtemp Touch thermostat for Electric Heating. This virtual instrument allows to create special HEXA code according to specific ECtemp Touch thermostat’s settings in order to have two-way communication to setup them by distance.
DEVIreg™ Smart application ensures wireless control of electric underfloorfloor heating systems equipped with DEVIreg™ Smart thermostat. This app turns your mobile device into an intuitive underfloor heating remote control.

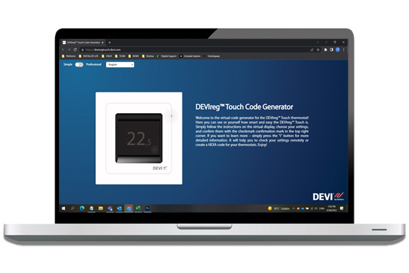

The virtual code generator for the DEVIreg™ Touch thermostat allows you to check your settings remotely or create a HEXA codes for your thermostats.
A floor sensor is a device that is connected to the thermostat, and allows the floor temperature to be fully controlled.
The floor sensor is wired back to the thermostat, and connected to the “NTC” terminal. There is no polarity on the cables.
We always recommend to install a floor sensor. The electronic programmable thermostats can be programmed to operate as any 1 of these 3 options:
A Floor sensor must be installed when floor or floor/air sensing is chosen.
Without a floor sensor, the maximum floor temperature cannot be controlled. A floor sensor is essential with wood, vinyl or carpet floor coverings.
The heating will start and end the away mode at the beginning (00:00) of the day. If the start day is today, then away mode starts immediately.
Yes it can. From the main menu, go to Settings > Options > Dim level, and select OFF. With the same navigation, the safety lock, forecast (adaptive function, both start and end), window open and min. floor temperature can also be turned off.
Twenty minutes in room regulation mode and 20/40/60 minutes in floor regulation mode or room/floor regulation mode. The time depends on the response time of the floor (light/heavy floor).
Temporary unlock by pushing the quick button on the side. To unlock permanently from the main menu, go to Settings > Options > Safety lock, and select OFF.
Yes it can. The back part only contains a relay, power supply, and terminals.
Turn the thermostat off at the mains, and turn it back on again. If this doesn’t resolve the issue, the back section and the front section are not connected properly. The user should remove the front section and the back section, move it forward then try putting the front section back on again. This should resolve the issue.
This indicates the 2 cores are touching on the floors sensor, which happens if the sensor has been damaged. If this is the case, you can start by checking the wiring on the back of the thermostat to make sure there are no loose connections. If the connections are okay, then you will need to test the resistance of the floor sensor using a multimeter; it should get a reading of between 10-20 kOhms. If the reading is significantly lower or higher than this, the floor sensor is damaged and will require replacement.
Yes you can. The DEVIreg™ Touch / ECtemp Touch works with floors sensors from DEVI, Warmup, Aube, OJ, Eberle, Ensto, Fenix, Raychem, Teplolux and many others.
The target (3 circles) symbol on the bottom right of your screen indicates a point to press the screen if you wish to wake it up.
The hand symbol in the top left corner indicates the timer function is off, and the thermostat is operating in manual mode.
These arrows indicate the thermostat is providing power to the underfloor heating system, and it is currently warming up.
At Danfoss, it is important for us to deliver high-quality products with long-lasting effects. Should you, against all expectations, experience a problem with your product, Danfoss offers a warranty for electric heating products valid from the date of purchase that was no later than 2 years from production date. Depending on the product, the product guarantee is valid for two years, five years, or twenty years. Product warranty covers costs for:
Danfoss offers online training materials for technicians and designers working with electric heating. There are 3 e-lessons available free and on-demand through Danfoss Learning portal. For more information, register in our support section by following the link or find the overview of available relevant trainings in the table below.
Register here

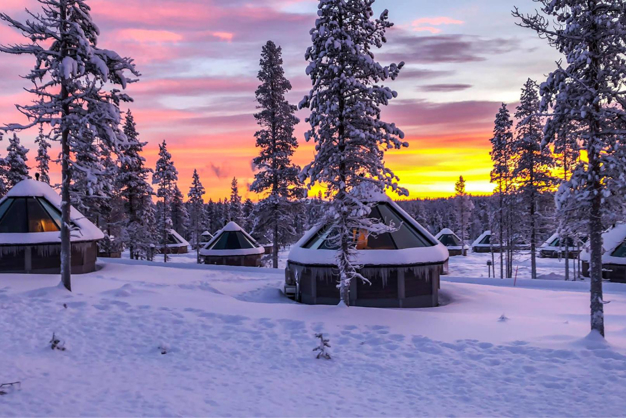

40 igloos - Aurora cabins – are located in the wintry forest. They are glass-roofed so that guests can wrap up in a blanket and enjoy the breathtaking views of the Milky Way, the North star and the Northern lights.

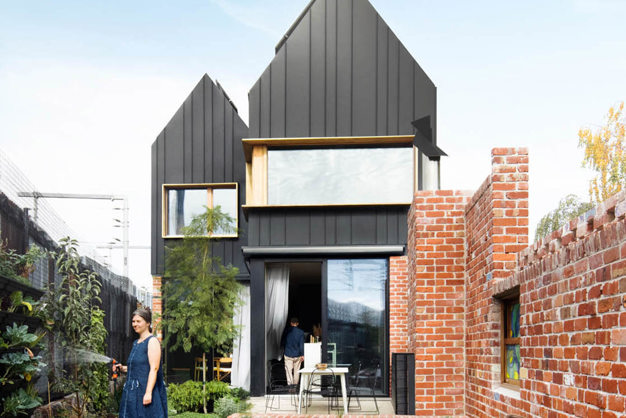

Home By Hutt, Melbourne Design Studios, and Grand Designs Australia designed and built the first Passive Home in the humble suburb of Coburg, Melbourne.
Coming soon...
Electric underfloor heating for all types of floors
Electric heating is an energy-efficient and environmentally friendly floor heating solution. It is flexible for new build homes and renovations for both wet and dry installation.
Nothing is as personal as how individuals experience comfort. To achieve the expected level of cabin comfort for passengers on cruise ships, Danfoss offers heating, cooling, and control solutions which also improve energy efficiency.
The hotel industry is a highly competitive sector where margins are constantly under pressure. The service towards guests must remain on a high level to hold the hotels' reputation. Saving energy is a key-differentiator. Danfoss offers comfort increasing HVAC solutions which help reduce the energy consumption.
Modern heating technology gives property owners and managers numerous ways to improve energy efficiency in their buildings. Whether planning a new build, renovation or refurbishment.
The ways office buildings are used is changing fast. Trends such as smart offices, digitalization and flexible work stations require adaptations in the technical aspects as well. Optimal indoor comfort for workers is essential. Danfoss offers comfort-increasing and energy-saving HVAC solutions.
Heating accounts for most of the energy used in 1- and 2-family houses. Most existing houses have the potential to realize significant energy savings, by improving the heating system and optimizing control of heating operations.
Whether you are building a new home or renovating the existing one, our experience and expertise are at your disposal.
