The heating mats are used for installation in a thin layer of tile adhesive, self-leveling mixture, or similar. The standard minimum thickness of the floor layer is 5-8 mm while the thickness of electric heating mat is 3–4.5 mm. This minimizes the floor level increase. Electric heating mats consist of a thin cable securely fixed on self-adhesive glass-fiber mesh, usually of 50 cm width. Thin heating mats are manufactured as ready-made heating sections with a specific area (i.e. 0.5, 1, 1.5 … 12 m²) including a power supply cable (cold lead) and hermetically sealed connections.
Check our application manuals via the links below to get the best recommendations for design and installation of floor heating systems.DEVI indoor application manualDanfoss indoor application manual
A comfortable ambient temperature and quick response time are just a couple of the benefits electric heating offers. Learn more about these and other benefits of electric heating.
Easy and quick installation
Quick responding floor heating
Low floor height increase
High durability, no maintenance
Long life-time with up to 20-year full warranty

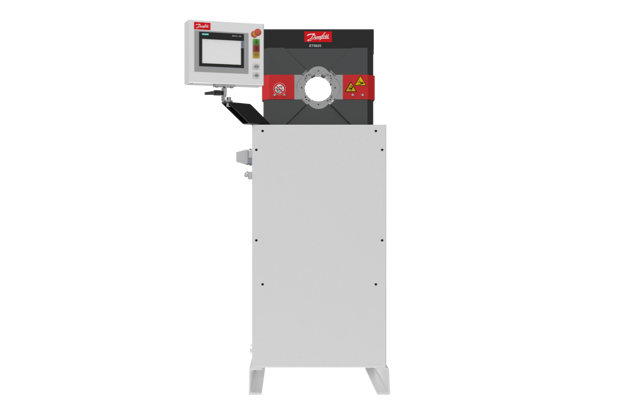

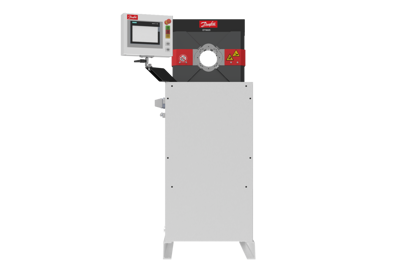

Find the latest crimp machine software for your Danfoss crimp machine.

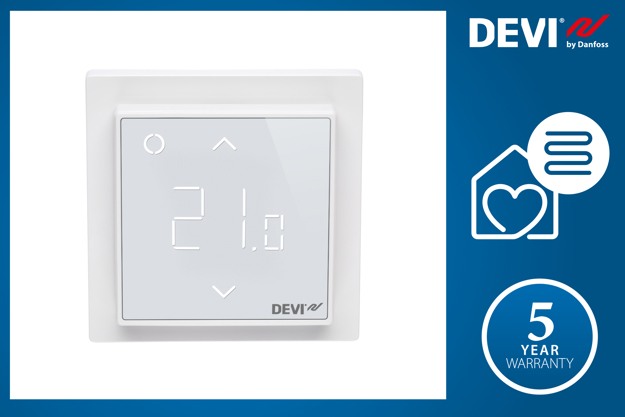

With DEVIreg™ Smart it’s easy to adjust electrical underfloor heating from the smartphone. The intuitive DEVIsmart™ App turns the smartphone into a remote control and enables homeowner to easily operate underfloor heating system at home – from anywhere in the world.

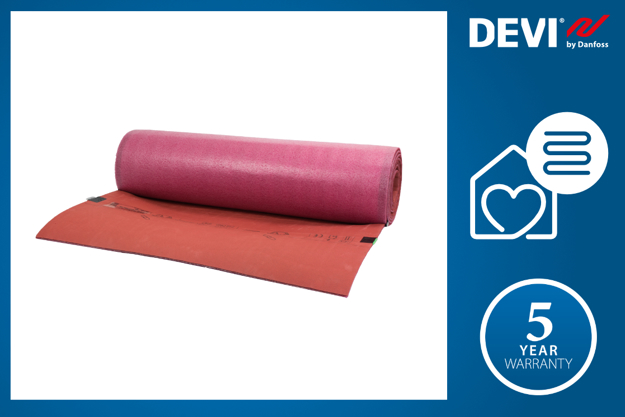

DEVIdry™ is a floor heating system consisting of a foam construction only 8 mm high with heating elements inside.
Ecdry is all-in-one heating element, consisting of a foam construction and underlay system can be used under wooden floorings, parquets, and laminates up to 22 mm.
DEVImat™ is an extremely high-quality, 360°, fully screened, twin conductor, self-adhesive, all-in-one mat with FEP insulated conductors and a red PVDF outer sheath (non UV stable).
The LDU has a compact design and features a U-style layout in one housing. Best-in-class efficiency ensures high performance and low fuel consumption, and a low noise design improves operator comfort.
Airflex expanding clutches and brakes use a rugged tire-like constricting tube, which expands to generate friction uniformly inside a drum to create torque. Available in four different series spanning a range of sizes and features, you’ll find the perfect fit for grinding mills, marine propulsion, drill rigs, and much more.
Our BDU Z-style transmission features a variable displacement pump and a fixed displacement motor. The pump features a cradle swashplate with a direct proportional displacement control. The motor uses a fixed swashplate.
Airflex constricting clutches and brakes use a rugged tire-like constricting tube, concentrating friction uniformly around a drum to create torque. Available in four different series spanning a range of sizes and features, you’ll find the perfect fit for grinding mills, marine propulsion, drill rigs, and much more.
SystemStak is a revolutionary, compact system for sandwich-mounting modular valves between a directional control valve and a standard mounting surface. SystemStak gives you a full range of complementary pressure, flow and check valve functions, while saving space, reducing installation costs and increasing efficiency in hydraulic systems.
Find relevant accessories by following this link
In some home renovation cases, when floor construction needs to stay as thin as possible, electric heating mats are the perfect fit. With electric heating mates floor height can be within 12-15 mm, including the tiles.As the mats are self-adhesive, they ensure a quick and easy installation, also possible directly on the existing floor.
Find out how to install electric underfloor heating mat and learn how to:
Check installation of thin heating mat for electric underfloor heating.
You can see all our videos about Electric Heating on a dedicated playlist on YouTube. Follow the link below.
Go to Electric Heating playlist on YouTube

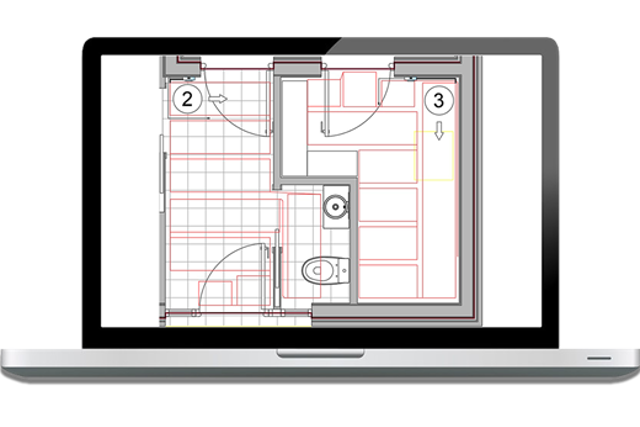

The Plugin supports your engineering and design journey by making your work faster due to simple functionalities in calculating all lengths, dimensions and product data of cables and mats. It covers all applications within Electric Heating projects: Electric floor heating, Ice & Snow melting systems, Pipe tracing, Cold stores, Sport fields, Vineyards etc.By utilizing Plugin, you will reduce design time for the project, provide all necessary information for installers in HTML/PDF format: BoM, resistance value check list, warranty list format. It means all project information can be consolidated in one file.
Plugin can be used with AutoCAD 2021.
the Danfoss Heat Selector is a best-in-class online selection tool that optimizes planning process for heating application experts. The Heat Selector saves time in calculation for product selection and guides you to the recommended product mix for the application at hand. At the same time, the Heat Selector provides you with easy access to all required documentation.
Read more
Most floor finishes are suitable for use with underfloor heating, provided the floor has been prepared correctly and any manufacturer’s temperature guidelines have been followed. With finishes, such as wood laminates and carpets, it is essential that the heating mat is completely covered with a suitable floor leveling compound before the specified finish is applied.
Moreover, for flooring, such as laminate, wooden parquet or carpet, we recommend DEVIdry™ / ECdry solutions as well as the use of a thermostat/regulator with a floor sensor.
The heating mat is designed to be laid directly onto an existing floor surface, so it does not require insulation. However, if there is room within the floor to add insulation or a tile-backer board, we strongly recommend this as it will enhance performance and reduce operating costs. Please contact us in Electric heating for information.
CONTACT YOUR ELECTRICIAN. Fuses can blow or circuit breakers can trip on either short circuit or overload, short circuit being the most common cause
No, the electric heating mat cannot be shortened as this will alter the resistance of the element, which may lead to overheating. It is therefore important that the area to be heated is measured accurately (free floor area only) and that you select the closest smaller area element. Please feel to ask DEVI service for help. Mesh can be cut, but take care to not cut or damage a cable.
The mat has an adhesive backing; if the floor is dusty or greasy, it will not stick particularly well. Priming the floor will significantly help the mat to fully adhere to the floor surface.
The cold tails/leads have to be brought out of the floor and have to be connected in parallel, e.g., core colors connected together, brown with brown, blue with blue, etc. into a thermostat.
The underlay that is usually supplied with wood laminate is an acoustic about 2-3mm thick; this is acceptable. If you are installing anything else, please call our technical team for advice.
For laminate, we recommend DEVIdry™ / ECdry solution.
We in electric heating do not recommend that the heating mat is installed under any such fixtures for a number of reasons. For example, it can inhibit the heat being produced from the system; and, if ever a fault was to occur, it would be extremely difficult to carry out a repair.
We strongly recommend that each section of floor with a different covering has its own ‘mat’ as well as thermostat since each floor surface has a different maximum temperature limit. We advise to use a thermostat with a floor heating sensor.
Contact our local office to discuss the best options for this floor.
The actual width of the mat is 480 mm, but it is recommended that it be laid at 500 mm intervals to ensure the correct gap between runs is achieved.
The difference between the two mats is the cold tail/lead (connection to thermostat).
The twin conductor mat does not have a second connection tail/cable to return to the thermostat. The single conductor mat has a single “cold tail” at each end of the mat, and they have to be brought back together at the connection point.
This is the connection at the end of the twin conductor mat where the heating element is connected to the neutral return. This is manufactured within the cable.
At Danfoss, it is important for us to deliver high-quality products with long-lasting effects. Should you, against all expectations, experience a problem with your product, Danfoss offers a warranty for electric heating products valid from the date of purchase that was no later than 2 years from production date. Depending on the product, the product guarantee is valid for two years, five years, or twenty years. Product warranty covers costs for:
Learn how to properly check cables or mats, do a resistance test and take all the necessary steps to get a warranty.
Play video
Danfoss offers online training materials for technicians and designers working with electric heating. There are 3 e-lessons available free and on-demand through Danfoss Learning portal. For more information, register in our support section by following the link or find the overview of available relevant trainings in the table below.
