DSE Flex

DSE FLEX is a compact substation platform designed for indirect district heating with up to 3 circuits with possibility to make combinations between modules if more circuits are required.

Maximum capacity is determined by temperature, allowable pressure drops and local regulations. HE 560 kW, DHW 590 kW. It is an exclusive solution designed to optimally fulfill specific requests and stringent requirements for district heating. Only available on request.

Features and benefits

Flexible substation design saves space and makes installation easy.
Suitable for various applications such as heating, domestic hot water and/or other water based heating systems.
Suitable for heating of multifamily houses, commercial and industrial buildings.
The substation is floor mounted, has a light profile, compact size and is designed for fast and safe transportation.
Pre‑assembled & factory‑tested – Ensures quick commissioning, reliable operation, and reduced installation costs.
Efficient heat transfer & hydronic balancing – Improves energy efficiency and system performance.
Robust, service‑friendly construction – Durable components with easy access for maintenance, lowering lifecycle costs.
Scalable & compliant – Meets district heating standards and allows future expansion or adaptation.

High performance district heating solutions – DSA HOME, DSA WALL & DSE FLEX

Experience efficient, reliable district heating with DSA HOME, DSA WALL, and DSE FLEX. This brochure reveals how each pre‑configured Danfoss substation delivers heating and domestic hot water with ease, energy efficiency, and lasting quality.

All feature high‑efficiency MicroPlate™ heat exchangers, precise ECL Comfort control, and remote monitoring via Leanheat® Monitor. Dive into the technical specifications and find the perfect fit for your next project.

Download the brochure

Documents

Documents
Type	Name	Language	Updated	Download	File type

Videos

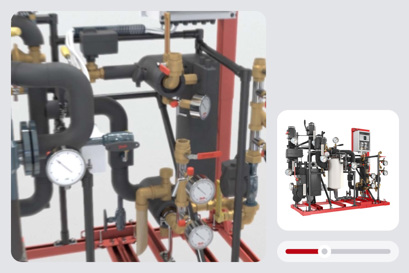

Split DSE Flex in parts

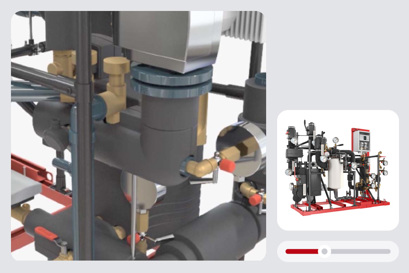

Full insulation of DSE Flex reduces the energy loss

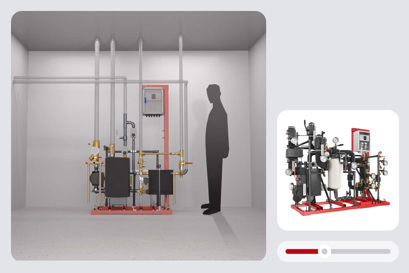

Make your connections easier with DSE Flex

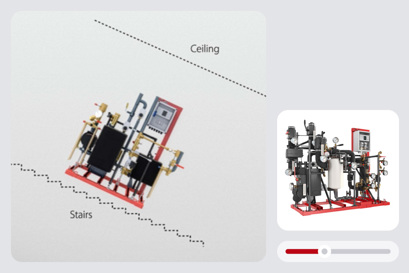

The compact dimensions of DSE Flex makes it easy to move inside buildings

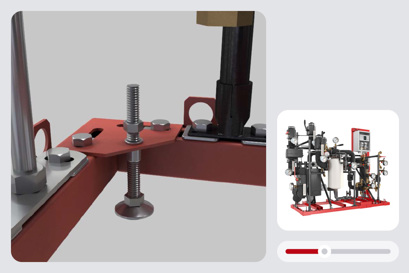

Positioning of DSE Flex with adjustable feet

FAQ

Is the DSE FLEX controller pre-configured from the factory?

Yes, it is preset according to available data. After commissioning, it performs a self-test, displays a default system code, and enters operating mode. Fine-tuning should follow the controller manufacturer’s manual attached to the station.

What should I check before commissioning?

Ensure all hydraulic and electrical connections are correct, water quality meets Danfoss guidelines, and the controller manual is available for precise settings.

What water quality is required for optimal performance?

Follow the Danfoss Guideline to Water Quality for Copper Brazed Plate Heat Exchanger (VJ.KV.D3.02 or newer) to maximize heat exchanger performance and lifetime.

What causes excessive noise in the system?

Incorrect pump setting
Missing hydraulic setup
Flow noise in pipes or foreign objects in piping
Loose parts in components (e.g., non-return valve springs)
Incorrect system dimensioning (e.g., undersized control valve)
Defective control valve or pump impeller

How can I fix excessive noise?

Check and correct pump and hydraulic settings, rinse the substation, inspect valves, and replace defective components as needed.

What are common reasons for no heat?

Clogged strainers or filters
Defective differential pressure controller, sensor, actuator, or thermostat
Dirt in control valve housing
Incorrect or defective automatic controls / power failure
Pump not operating or set to low speed
Air in the system

How can I restore heating?

Clean strainers and filters, check and replace defective components, verify controller settings and power supply, adjust pump speed, and vent the system thoroughly.

Are there specific safety precautions for DSE FLEX?

Yes, follow the safety section in the operating guide, including electrical isolation before maintenance, correct handling during installation, and adherence to water quality standards
