Highly energy efficient and environmentally friendly compressor
The Danfoss Turbocor® TG Series of centrifugal compressors delivers nominal capacities of 40-150TR / 140 – 540 kW and uses next generation refrigerant HFO-1234ze. This refrigerant offers ultra-low Global Warming Potential GWP < 1, zero Ozone Depletion Level ODP and is not subject to the hydrofluorocarbon (HFC) phasedown required by the European Union's F-gas regulation.

Turbocor® fact sheet
Danfoss Turbocor® portfolio of oil free centrifugal compressors, models TT, TG and VTT, deliver innovative technology that reduces operating costs and maintenance for your air conditioning applications.
The TG Series is available in four compressor models:
TG230 | TG310 | TG390 | TG520 |
|
|
|
|
Features and benefits
Developped for ultra-low GWP HFO-1234ze refrigerant
From 40-150TR / 140 – 540 kW
Outstanding energy efficiency at full and part load
Compact, lightweight and simple system design reduce installation and maintenance costs
Soft Start reduces in-rush current at startup
Exceptionally quiet operation - 70 dB(A)

TurboTool®
Compressor service for Danfoss Turbocor® compressors is easier than ever with the Danfoss TurboTool® App. You can troubleshoot potential issues right from your mobile phone by entering the symptoms into the app and instantly receive a list of recommendations for how to resolve the problem.
Documents
Type | Name | Language | Valid for | Updated | Download | File type |
---|---|---|---|---|---|---|
Brochure | Danfoss Solutions for Chillers | Spanish, Castilian | Multiple | 26 Oct, 2018 | 44.2 MB | |
Brochure | Danfoss Solutions for Chillers | English | Multiple | 14 Apr, 2020 | 3.9 MB | |
Brochure | Danfoss Solutions for Chillers | Chinese (CN) | Multiple | 19 May, 2017 | 2.3 MB | |
Brochure | Danfoss Solutions for Chillers | French | Multiple | 29 Oct, 2018 | 44.2 MB | |
Brochure | Danfoss Solutions for Chillers | Italian | Multiple | 20 Mar, 2018 | 3.7 MB | |
Brochure | Danfoss Solutions for Chillers | Russian | Multiple | 28 Jun, 2019 | 2.8 MB | |
Brochure | Danfoss Solutions for Chillers | Ukrainian | Ukraine | 27 Apr, 2020 | 2.8 MB |
Related products
-
if (isSmallPicture) {
; } else if (isBigColumns) { } else { }Turbocor® - TTDanfoss Turbocor® model TT oil free compressors are available in four different models ranging from 60 tons to 200 tons / 200 to 700 kW utilizing R134a or non-flammable, low GWP R513A.
-
if (isSmallPicture) {
; } else if (isBigColumns) { } else { }Turbocor® - VTTDanfoss Turbocor® model VTT oil free compressor is available with a capacity up to 400 tons / 1430 kW using R134a. This compressor is designed for water and evaporative cooled chiller applications.
-
if (isSmallPicture) {
; } else if (isBigColumns) { } else { }Turbocor® - TTH / TGHDanfoss Turbocor® model TTH / TGH oil free compressors, optimized for high lift applications, are available in two different models utilizing R134a, non-flammable low GWP R513A (107 tons / 376 kW) and ultra-low GWP HFO1234ze (82 tons / 288kW).
Related solutions
-
if (isSmallPicture) {
; } else if (isBigColumns) { } else { }Variable speedExplore the different facets of variable-speed technology for efficient commercial air conditioning and precision cooling. Includes system descriptions, cases, training.
Case studies
-
if (isSmallPicture) {
; } else if (isBigColumns) { } else { }Oil-free compressors maintain consistent performance over timeDanfoss conducted a study to see how long term operation affected performance on Danfoss Turbocor® compressors. The results showed that oil-free, magnetic bearing compressors maintained consistent performance even after 10+ years of operation.
-
if (isSmallPicture) {
; } else if (isBigColumns) { } else { }Diaper Poultry invests in new dispatch area cold room powered by Optyma™ PlusDiaper Poultry are really pleased with the result. Compared to the old refrigeration solution, the new Optyma™ solution is only about a quarter of the size, it works much more quietly and at the same time it is just as efficient as the old system.
-
if (isSmallPicture) {
; } else if (isBigColumns) { } else { }Compressor checkup tipsCompressor checkup tips to catch potential issues early that may lead to premature failure in the future.
-
if (isSmallPicture) {
; } else if (isBigColumns) { } else { }Coolselector®2 - from complexity to simplicity in one downloadThe real value of Coolselector®2 is the complexity that is made simple. All calculations are done fast based on the best data sources and presented in easy-to-use graphics making it an indispensable tool in every type of refrigeration project.
-
if (isSmallPicture) {

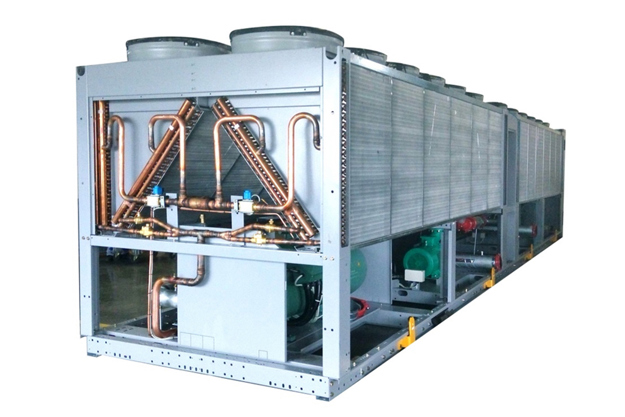

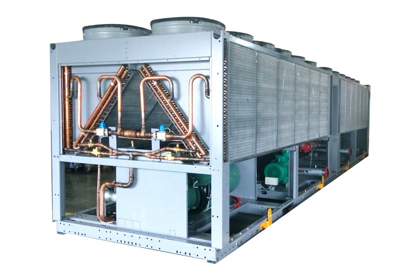

; } else if (isBigColumns) { } else { }Data center solutions from climaveneta and Danfoss are popular in ChinaWith the fast development of the Internet, cloud computing, and mega data centers, the Chinese data center industry is experiencing significant growth This includes the building of large-scale data facilities and moving the industry towards centralization and greener construction processes
-
