Position sensors for mobile hydraulic solutions
Danfoss is taking functional safety to the next level with a full program of state-of-the-art rotary position sensors, wire position sensors, and inclination sensors.
All variants come as both single and redundant sensor types, making the complete portfolio suitable for safety-critical applications.
For more than 30 years, Danfoss has delivered reliable, robust, and cost-effective sensor technologies for leading mobile hydraulic producers in the off-highway industry. With a complete program of hydraulic position sensors, Danfoss covers all machine types. Thus, OEMs are provided with unrivaled flexibility and scalability to meet both safety as well as environmental regulations.
Features and benefits
Hall effect technology (Rotary and wire sensors programs)
MEMS technology (Inclination program)
Single or redundant
Output: CANopen, SAE J1939 or Ratiometric
IP Protection Level: IP67 – IP69K with female mating connector
Position sensors in action
See our position sensors being put to the test at our Application Development Center in Nordborg, Denmark.
Reaching new heights in sensor reliability
PLUS+1® compliant
All sensors are PLUS+1® compliant. With simple and intuitive interfaces, this software platform offers seamless integration with development and service tools, to bring products faster to market while making it easy to keep machines current with parameter adjustments and software updates. Furthermore, real-time, remote access makes staying up to date even easier.
Documents
Type | Name | Language | Valid for | Updated | Download | File type |
---|---|---|---|---|---|---|
Data sheet | Inclination position sensor, type DST X710 | English | Multiple | 26 Feb, 2021 | 2.7 MB | |
Data sheet | Inclination position sensor, type DST X720 | English | Multiple | 03 Mar, 2021 | 11.6 MB | |
Data sheet | Inclination position sensor, type DST X730 | English | Multiple | 03 Mar, 2021 | 4.4 MB | |
Data sheet | Rotary position sensor, type DST X510 | English | Multiple | 26 Feb, 2021 | 1.9 MB | |
Data sheet | Rotary position sensor, type DST X520 | English | Multiple | 26 Feb, 2021 | 1.3 MB | |
Data sheet | Wire position sensor, type DST X800 | English | Multiple | 26 Feb, 2021 | 4.4 MB |
Product range
-

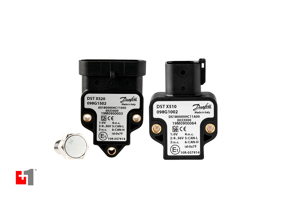

if (isSmallPicture) { ; } else if (isBigColumns) { } else { }DST X510 and X520 series, rotary position sensors
These sensors are able to detect angles from ±15° up to 360° e.g. pedal accelerator, front or rear steering, suspension position, or cabin rotation.
-
if (isSmallPicture) { ; } else if (isBigColumns) { } else { }DST X800 series, wire position sensors
Danfoss DST X800 wire position sensor is developed to ensure a robust and high-performance solution for applications. The stability control of e.g. a crane, telehandler or aerial platform is kept under control with draw wire sensors that determine the withdrawal of lateral stabilizers at different positions; on same applications the draw wire on the boom. couldevent overturn of the machine.
-

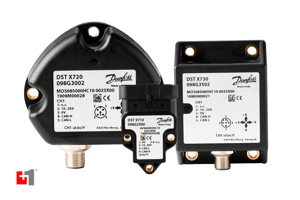

if (isSmallPicture) { ; } else if (isBigColumns) { } else { }DST X710, X720 and X730 series, inclination sensors
Danfoss program of inclinometer sensors are developed to ensure a robust and high-performance solution for applications such as agricultural- and construction machines, as well as material handling equipments. These sensors are typically used in safety applications in order to keep the inclination of a machine, or just a part of it, a safety zone for working people, under control.
Articles
The expanding demand for sensors
The demand for sensor technology is rapidly expanding. To comply with safety as well as environmental regulations, mobile hydraulic producers require more and more sensors in all machine types. Choosing the right sensor is crucial. We have made a checklist of key things to consider in your sensor specification.
Related applications
-
if (isSmallPicture) { ; } else if (isBigColumns) { } else { }Agriculture
Farmers need agricultural machines that deliver the same high productivity every season. Hydraulic solutions from Danfoss ensure world-class performance from each machine - and a comfortable, stress-free working environment for their operators.
-
if (isSmallPicture) { ; } else if (isBigColumns) { } else { }Drives for cranes in mining and mineral processing
To optimize crane and hoist performance, Danfoss offers flexible control strategies combined with energy efficiency, operating within stringent safety requirements.
