ICLX Flexline™ 2-step solenoid valves

A superior solution for
safety and convenience

The new ICLX valves are part of the Danfoss ICV Flexline™ series. The ICLX valves are 2-step servo-operated main valves with pilot solenoid valves.

ICLX valves can be used in suction lines for opening against high differential pressure, for instance after hot gas defrosting in large industrial refrigeration systems with all normal, non-flammable refrigerants, including ammonia and CO₂.

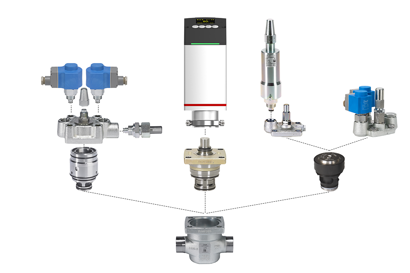

The ICLX valves feature all the characteristics of ICV Flexline™ valves and offer safe, flexible and convenient installation, operation and service. For instance, the standard ICV Flexline™ housing makes the ICLX valves a true plug and play solution with easy and time-saving switch between the functions.

Reduce lifecycle costs, increase savings and design freedom

The ICV Flexline™ control valves are not only designed to give you savings and design freedom, but they also provide a reliable, safe and green solution for your needs - both now and in the future.

Download brochure

Brochure - Danfoss ICLX 2-step solenoid valves for industrial refrigeration

Features and benefits

Full, hermetic external tightness preventing leakage
Normal closed type minimizes the system risk
Direct weld eliminates pipe flanges to increase system safety and simplify installation
Outstanding flow characteristic, ideal for systems where low pressure drop is required
Simple installation
No hot gas leakage to the suction line due to teflon valve plates and gas tight piston rings

Application Development Centers

Partner up with us to prepare for the future. At our global Application Development Centers we offer a collaborative environment with expert support and state-of-the-art test facilities for refrigeration and air conditioning.

We are Engineering Tomorrow. Together. Today.

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
Brochure	Danfoss ICLX : Electrovannes à deux temps d'ouverture. Une solution de choix alliant sécurité et commodité	French	Multiple	01 Dec, 2014	517.6 KB	.pdf
Brochure	Danfoss ICLX tweestapssservogestuurde hoofdventielen. Een superieure oplossing voor veiligheid en gebruiksgemak	Dutch, Flemish	Multiple	01 Dec, 2014	511.9 KB	.pdf
Brochure	Danfoss ICLX two-step servo-operated main valves---A superior solution of safety and convenience (sales brochure)	English	Multiple	01 Dec, 2014	433.5 KB	.pdf
Brochure	Danfoss ICLX two-step servo-operated main valves---A superior solution of safety and convenience (sales brochure)	Russian	Multiple	01 Dec, 2014	517.3 KB	.pdf
Brochure	Dwustopniowe, serwosterowane zawory typu ICLX. Doskonałe rozwiązanie zapewniające bezpieczeństwo i wygodę	Polish	Multiple	01 Dec, 2014	508.7 KB	.pdf
Brochure	Mniejsze koszty eksploatacyjne - Większe oszczędności i swoboda projektowania (ICV Flexline)	Polish	Multiple	26 Nov, 2014	655.9 KB	.pdf
Brochure	Reduce lifecycle costs - Save more and increase your design freedom (ICV Flexline)	Dutch, Flemish	Multiple	22 Mar, 2015	4.2 MB	.pdf
Brochure	Reduce lifecycle costs Increase savings and design freedom - The ICV Control Valve - member of the Flexline family	Russian	Multiple	03 Apr, 2016	4.3 MB	.pdf
Brochure	Reduce lifecycle costs Increase savings and design freedom - The ICV Control Valve - member of the Flexline family	Spanish, Castilian	Multiple	22 Mar, 2015	4.2 MB	.pdf
Brochure	Reduce lifecycle costs Increase savings and design freedom - The ICV Control Valve - member of the Flexline family	English	Multiple	20 Feb, 2024	15.6 MB	.pdf
Brochure	Reduce lifecycle costs Increase savings and design freedom - The ICV Control Valve - member of the Flexline family	French	Multiple	22 Mar, 2015	4.2 MB	.pdf
Brochure	Reduce lifecycle costs Increase savings and design freedom - The ICV Control Valve - member of the Flexline family	Italian	Multiple	22 Mar, 2015	4.2 MB	.pdf
Brochure	Reduce operating costs Increase your savings and gain design freedom (ICV Flexline)	Portuguese	Multiple	22 Mar, 2015	4.2 MB	.pdf
Brochure	Reduce your costs Maximum flexibility and cost savings - ICV main and motorised valves as part of the Flexline series	German	Multiple	22 Mar, 2015	4.3 MB	.pdf
Brochure	Reducerede levetidsomkostninger - Større besparelser og designfrihed (ICV Flexline)	Danish	Multiple	22 Mar, 2015	4.2 MB	.pdf
Brochure	Válvulas ICLX da Danfoss, servo-operadas com abertura em dois estágios. Uma solução de alto nível em segurança e conveniência	Portuguese	Multiple	01 Dec, 2014	570.5 KB	.pdf
Brochure	Válvulas principales servoaccionadas de dos etapas ICLX de Danfoss - Una solución de calidad, cómoda y segura	Spanish, Castilian	Multiple	01 Dec, 2014	502.6 KB	.pdf
Brochure	Zweistufige, servogesteuerte Hauptventile der Reihe ICLX von Danfoss. Eine intelligente Lösung für Mehr Sicherheit und Komfort	German	Multiple	01 Dec, 2014	540.9 KB	.pdf

Software

The truth is Cool(selector®2)

Coolselector®2 features unbiased calculations for the selection of refrigeration and air conditioning components based on the user’s requirements or based on standard operating conditions.

Try Coolselector®2 now for free

Related products

Danfoss ICS Flexline family for industrial refrigeration

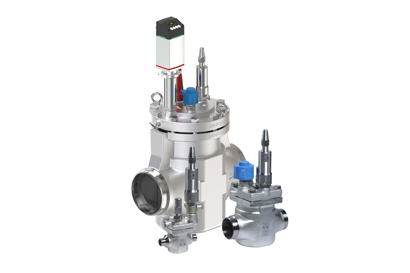

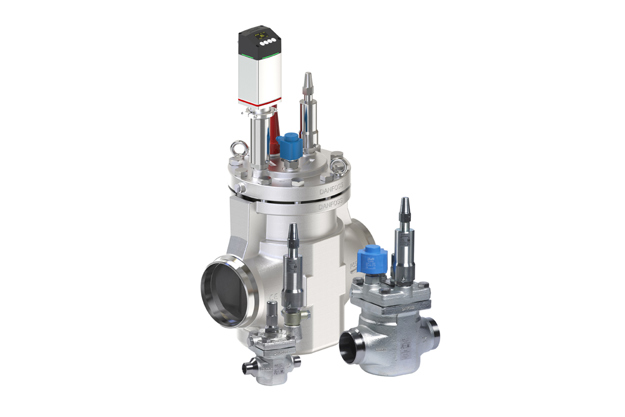

ICS Flexline™ servo operated valves

The ICS pilot operated servo valves from Danfoss ICV Flexline™ platform are quick and simple to handle, install and service due to their low weight and compact design.

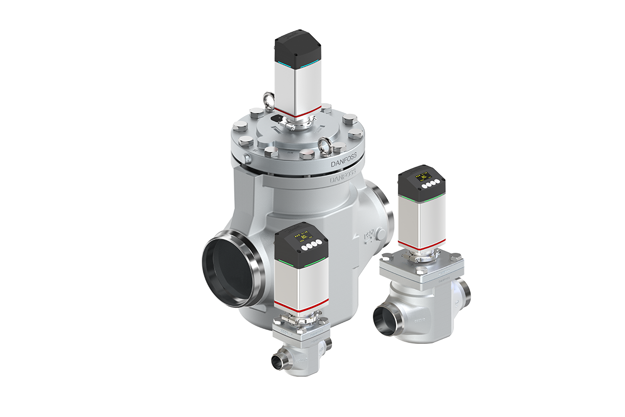

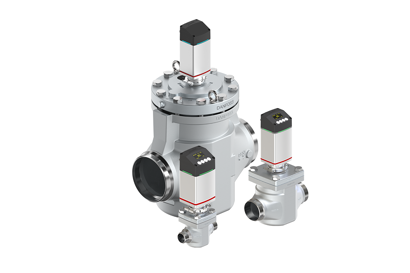

ICM Flexline™ motor valves
