Compact but powerful soft starters
Two series of soft starters that provide a total motor starting solution for motors up to 110 kW. The MCD 201 offers efficient motor-starting features, while the extended MCD 202 version provides enhanced soft-start functionality and additional motor-protection features.
The series of soft starters offer easy DIN rail mounting for sizes up to 30 kW, 2-wire or 3-wire start/stop control and excellent starting duty (4 x le for 6 seconds; heavy starting ratings at 4 x le for 20 seconds). They are compatible with grounded delta power systems.
Supply voltages and power range
- 3 x 200-575 V...7.5-110 kW (200 A)
- 24 V AC or DC/110-440 V AC
Features and benefits
Easy connectivity for the soft starter to Ethernet/IP-based networks, such as Rockwell PLC systems
Panel space can be saved due to the compact size
Installation costs are minimized and power loss eliminated thanks to the built-in bypass
More starts per hour and a higher load is possible as a result of advanced SCR Control Algorithms that balance output waveform
Overall project investment is reduced due to essential motor protections
No external cooling or oversizing is necessary thanks to the maximum ambient temperature of 50°C without derating
Documents
Type | Name | Language | Valid for | Updated | Download | File type |
---|---|---|---|---|---|---|
Brochure | Danfoss Drives Product Overview | English | Multiple | 20 Mar, 2019 | 1.7 MB | |
Brochure | Danfoss Drives Product Overview | English | United States | 01 Nov, 2019 | 1.5 MB | |
Brochure | DrivePro® Life Cycle Services | English | Multiple | 28 Dec, 2018 | 2.5 MB | |
Case story | Drives for grape destemming | English | Multiple | 19 Feb, 2019 | 751.8 KB | |
Brochure | Ecodesign - meet requirements | English | Multiple | 01 Jun, 2020 | 1.1 MB | |
Brochure | Ecodesign flyer | English | Multiple | 01 Nov, 2019 | 406.7 KB | |
Certificate | El. Safety, EMC/Low Voltage Directive | English | Multiple | 01 Aug, 2022 | 2.4 MB | |
Certificate | Electrical Safety ANSI/UL 508C | English | Multiple | 17 Aug, 2016 | 87.9 KB | |
Brochure | Energy efficiency - 3 questions | English | Multiple | 10 May, 2016 | 253.6 KB | |
Certificate | ESMA ECAS Certificate E20-07-003509 | English | Multiple | 01 Sep, 2020 | 843.2 KB | |
Certificate | ESU UA.1O078.C. 003-17 MCD 100/200/500 | English | Multiple | 01 Sep, 2020 | 139.2 KB | |
Installation guide | EtherNet/IP Module | English | Multiple | 01 May, 2017 | 10.2 MB | |
Installation guide | EtherNet/IP Module | English | Multiple | 01 May, 2017 | 8.0 MB | |
Installation guide | EtherNet/IP Module Installation Guide | English | Multiple | 17 Oct, 2022 | 9.4 MB | |
Installation guide | Finger Guards | English | Multiple | 20 Apr, 2016 | 544.7 KB | |
Certificate | ISO 9001 Drives BV 500F1065en | English | Multiple | 01 Jan, 2019 | 627.9 KB | |
Certificate | Manufacturers Declaration MCD 200 | English | Multiple | 01 Feb, 2021 | 322.3 KB | |
Certificate | MCD 200 LR2037188TA | English | Multiple | 01 Nov, 2020 | 417.6 KB | |
Certificate | MCD 200 MCD 500 PROFIBUS Z11866 | English | Multiple | 01 Mar, 2019 | 329.0 KB | |
Installation guide | Modbus TCP Module | English | Multiple | 29 Nov, 2022 | 9.4 MB | |
Brochure | Motor technology - free choice | English | Multiple | 10 May, 2016 | 877.6 KB | |
Installation guide | PROFINET Modulet | English | Multiple | 29 Nov, 2022 | 9.3 MB | |
Certificate | UA.1O078.C.029-20 MCD 100/200/500 | English | Multiple | 01 Nov, 2020 | 4.7 MB | |
Fact sheet | VLT® Compact Starter MCD 200 | English | Multiple | 08 Jul, 2008 | 240.6 KB | |
Fact sheet | VLT® Compact Starter MCD 200 | English | Multiple | 21 Jun, 2016 | 166.2 KB | |
Operating guide | VLT® MCD DeviceNet Module | English | Multiple | 24 Jan, 2012 | 442.8 KB | |
Operating guide | VLT® MCD Modbus Module | English | Multiple | 14 Mar, 2012 | 1.7 MB | |
Operating guide | VLT® MCD Profibus Module | English | Multiple | 01 Sep, 2009 | 538.0 KB | |
Installation guide | VLT® MCD USB Modules | English | Multiple | 20 Nov, 2020 | 1.0 MB | |
Design guide | VLT® Soft Starter MCD 200 | English | Multiple | 28 Feb, 2005 | 1.3 MB | |
Design guide | VLT® Soft Starter MCD 200 | English | United States | 28 Feb, 2005 | 1.2 MB | |
Brochure | VLT® Soft Starter Selection Guide | English | Multiple | 01 Jan, 2021 | 1.3 MB |
Software
Type | Name | Language | Updated | Version | Status | Download | File type |
---|---|---|---|---|---|---|---|
Software Tools | Danfoss WinStart for MCD 500 and MCD 200 | 16 Apr, 2015 | 4.4 | RL | 3.2 MB | ZIP | |
Fieldbus Configuration Files | VLT® Drives PROFIBUS GSD | 03 Nov, 2010 | RL | 76.9 KB | ZIP | ||
Fieldbus Configuration Files | VLT® MCA101 PROFIBUS GSD | 03 Nov, 2010 | RL | 76.9 KB | ZIP | ||
Fieldbus Configuration Files | VLT® MCD200 DeviceNet EDS | 20 Jun, 2008 | RL | 678.0 B | ZIP | ||
Fieldbus Configuration Files | VLT® MCD500/200 PROFINET GSDML | 16 May, 2018 | RL | 2.2 KB | ZIP | ||
Fieldbus Configuration Files | VLT® MCD600/500/200 EtherNet/IP EDS | 16 May, 2018 | RL | 6.5 KB | ZIP | ||
Software Tools | VLT® Soft Starter Ethernet Config Tool | 10 Aug, 2018 | RL | 6.5 MB | ZIP | ||
Fieldbus Firmware | VLT® Soft Starter USB Drivers | 06 Mar, 2017 | RL | 1.1 MB | ZIP |
Related applications
Pumps, conveyors, fans, mixers and compressors.
-
if (isSmallPicture) {
; } else if (isBigColumns) { } else { }Drives for commercial compressorsVariable speed control with AC drives enables you to reduce enegy coonsumption by running compressor applications at a lower speed.
-
if (isSmallPicture) {
; } else if (isBigColumns) { } else { }Drives for compressorsImprove your COP and save on energy consumption by applying Danfoss AC drives to optimize the capacity control of refrigeration compressors, condensers and evaporators.
-
if (isSmallPicture) {
; } else if (isBigColumns) { } else { }Drives for compressors in residential buildingsVariable speed control of a chiller allows you to provide constant pressure regulation while matching the capacity to the actual need based on measurements in the system. Speed control is beneficial when a compressor runs for long periods at partial load. Reduce operational costs by running applications at a lower speed which reduces energy consumption. And reduce installation costs by optimizing the system and the compressor itself.
-
if (isSmallPicture) {

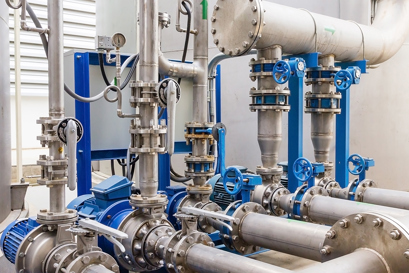

; } else if (isBigColumns) { } else { }Drives for pumpsEnhance your system performance, extend your equipment life, and protect against leakages, by optimizing pump operations using Danfoss AC drives.
Case studies
-
if (isSmallPicture) {

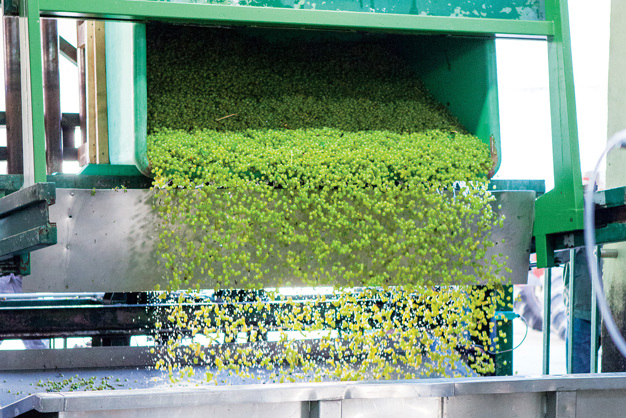

; } else if (isBigColumns) { } else { }High production throughput for ReicholzheimVLT® Midi Drive FC 280 helps sweet grapes make sweet wine.
