DST P40I titanium pressure transmitter for in corrosive environments and aggressive media

DST P40I pressure transmitter for use in desalination systems, seawater cooling, and chemical processing

For use in corrosive environments, Danfoss offers the robust DST P40I pressure transmitter made of Titanium and with ceramic pressure sensing element. DST P40I is optimized for use in applications such as desalination systems, seawater cooling, and chemical processing. The transmitter housing is made from high-strength Titanium Grade 2, which is exceptionally resistant to a wide range of acids, alkalis, Sodium Chloride, and polluted water. The pressure sensing element is made from ceramic AI2O3 96% with superior chemical immunity. The pressure transmitter works following the piezo resistive principle, and the Wheatstone Bridge is printed directly on the inside of the ceramic diaphragm to ensure fast response time and a high degree of precision in measurements. DST P40I has been designed and tested to be highly resistant to continuous vibrations and cavitation in reverse osmosis desalination pump systems.

View the 3D model

Features and benefits

High corrosion resistance, designed for use in harsh environments
Transmitter housing made of Titanium Grade 2
Ceramic sensing element made of AI2O3 96%
Pressure range 4-100 bar (standard)
Accuracy ± 1.5% FS (typical)
Temperature range 0-80°C
Output signal: 4 – 20 mA
Outstanding shock and vibration performance
Excellent EMC immunity, ensuring a failsafe measuring signal

Sea Water Reverse Osmosis (SWRO)

Sea Water Reverse Osmosis may hold the key to prevent a global water crisis, but it requires powerful technology to be viable on a global scale.

Our four core technologies work together to make SWRO efficient and environmentally friendly.

DST P40I part of our desalination solution

The Danfoss DST P40I is a robust and accurate pressure transmitter designed specifically to meet requirements in desalination systems.

Download our desalination brochure

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type

Approvals

Approval Certificates


Type	Name	Approval authority	Language	Valid for	Download	Expiration date	File type
EU-UK Declaration	Danfoss EU-UK 078R0006.04		English	Multiple	1.4 MB	31 Aug, 2027	.pdf
Electrical Safety Certificate	UL E31024		English	Multiple	5.0 MB		.pdf

Related solutions

Danfoss solutions for brine mining

As global demand for lithium, magnesium, and food-grade salt surges, brine mining is emerging as a less environmentally disruptive alternative to conventional mining. But brine valorization is only economically viable if energy use and system complexity are kept in check.
Danfoss APP pumps and iSave ERDs form the foundation of ultra-energy-efficient SWRO and OARO systems. They deliver the precise, stable high-pressure performance needed to make brine valorization commercially and environmentally feasible.

Desalination

The global water challenges call for innovative solutions. Desalination is fast becoming a leading technology to transform sea water into clean fresh water for multiple purposes.

Learning

Articles

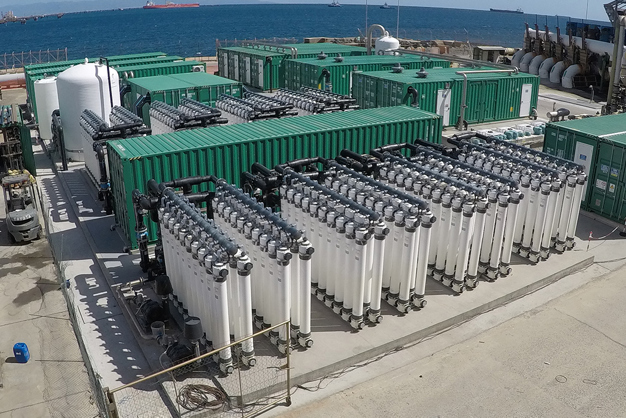

Sarlux refinery saves energy with 12000 m3/day industrial desalination plant
