MBS 1600, pressure transmitter for plastic processing

  • Overview
  • Documents
  • Case studies

Tailored to the specific requirements of the plastics industry

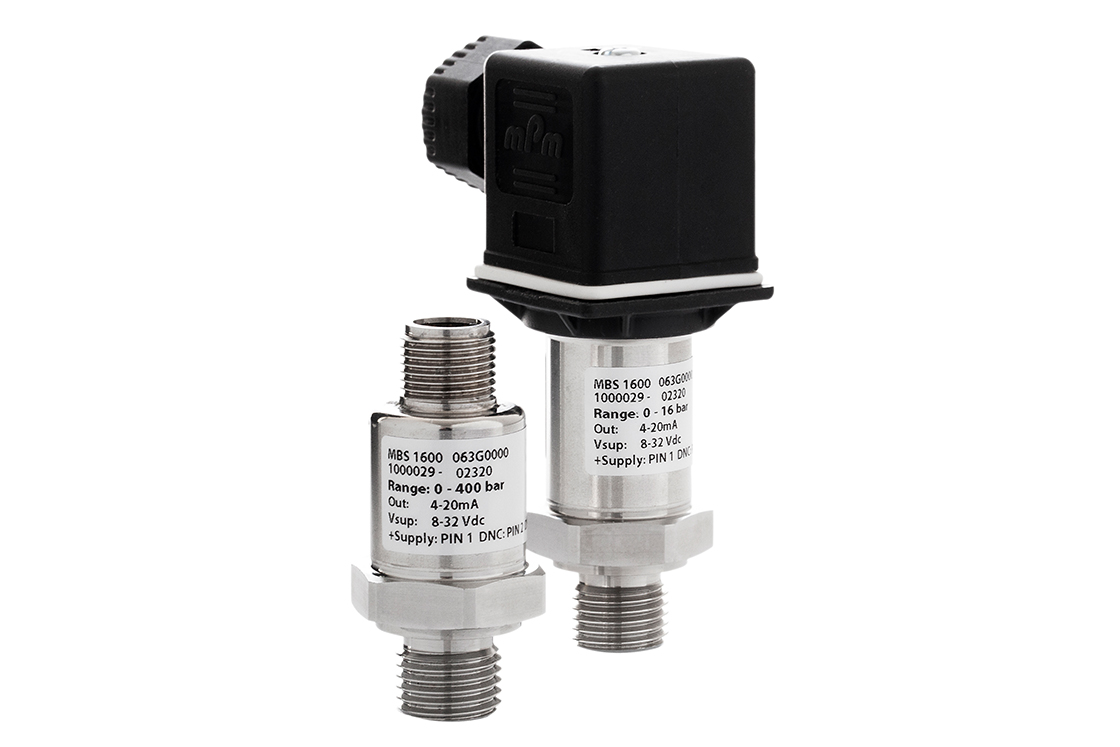

The MBS 1600/1650 pressure transmitter is tailored to the specific requirements of the plastics industry. The high-quality and EMC-immune pressure transmitter comes in two versions:

  • MBS 1600 – without integrated pulse-snubber
  • MBS 1650 – with integrated pulse-snubber

The integrated pulse-snubber offers a high degree of protection against cavitation and liquid hammer. The fully welded and compact design provides excellent vibration stability and exceptional robustness. MBS 1600/1650 is 100 % immune to VFD-induced electric noise and noise from other direct-coupled electrical fast transients from valves and relays.

Features and benefits

Tailored for use in plastic processing applications

100 % immune to electric noise from VFD and other direct-coupled electrical fast transients from valves and relays

High burst and over pressure capabilities due to fully welded design

Protected against cavitation and liquid hammering

Fast time constant to support industry requirement (< 1 m sec 10 to 90% step response)

Wide operating temperature range (-40 to 125 °C)

Fully welded design and wetted parts made of stainless steel

Vibration and shock stability due to the ridged design

Zero drift due to excellent long term stability

Wide range of electrical and pressure connections

All absolute voltage output signals: 0 – 5 V, 1 – 5 V, 1 – 6 V, 0 – 10 V

Approvals and certificates

  • CE
  • UL508

Electrical noise

It can cause lost production hours, material waste and ultimately expensive damage and repair of machinery, if electric noise interferes with your plastic molding machinery. See how to avoid this.

Documents

Documents
Type Name Language Valid for Updated Download File type
Brochure MBS 1600 For Industrial Hydraulic English Multiple 07 Jan, 2022 6.8 MB .pdf
Data sheet OEM transmitters for heavy-duty applications, MBS 1600 and MBS 1650 Chinese (CN) Multiple 22 Jul, 2020 589.4 KB .pdf
Data sheet OEM transmitters for heavy-duty applications, MBS 1600 and MBS 1650 Spanish, Castilian Multiple 22 Jul, 2020 521.7 KB .pdf
Data sheet OEM transmitters for heavy-duty applications, MBS 1600 and MBS 1650 German Multiple 22 Jul, 2020 554.6 KB .pdf
Data sheet OEM transmitters for heavy-duty applications, MBS 1600 and MBS 1650 Italian Multiple 22 Jul, 2020 527.8 KB .pdf
Data sheet OEM transmitters for heavy-duty applications, MBS 1600 and MBS 1650 Danish Multiple 22 Jul, 2020 519.3 KB .pdf
Data sheet OEM transmitters for heavy-duty applications, MBS 1600 and MBS 1650 English Multiple 22 Jul, 2020 517.5 KB .pdf
Data sheet OEM transmitters for heavy-duty applications, MBS 1600 and MBS 1650 French Multiple 22 Jul, 2020 520.6 KB .pdf

Case studies

Articles

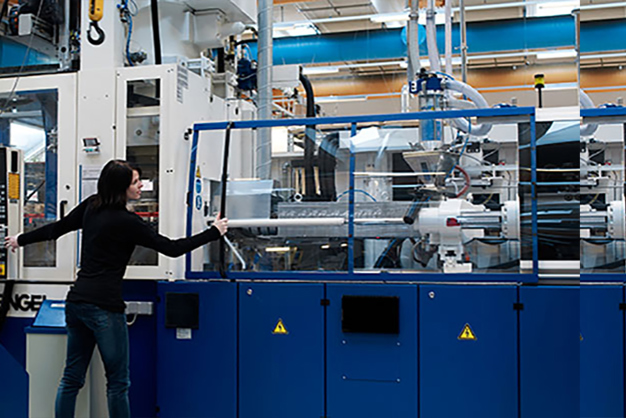

Surf the productivity wave with fast and EMC-resistant pressure transmitters

Surf the productivity wave with fast and EMC-resistant pressure transmitters

The plastic industry is one of the world’s fastest growing industries. Competition is tough and to be at the forefront, equipment and processes must be top-tuned. Increasing consumer expectations to product quality and sustainable materials further fuel the development of next generation plastic processing machines.
