MBS 9200 millibar pressure transmitter for general purpose applications
MBS 9200 millibar pressure transmitter is designed for use for general purpose applications. It is designed for use in general purpose applications as well as applications within level measurement.
The 4 – 20 mA and ratiometric 10-90% signals cover from 40 – 400 mbar as well as bidirectional ranges.
The robust design has excellent vibration stability and a high degree of EMC/EMI protection.
View the 3D model
Features and benefits
Full scale span from 40 – 400 mbar
- bidirectional ranges available, e.g. -40 – 70 mbar etc.
- lowest zero point –150 mbar
- max full scale 250 mbar
Digital temperature compensated
Output signals 4-20 mA and ratiometric 10-90%
Excellent shock and vibration robustness
Enclosure and wetted parts of stainless steel (AISI 316L)
For use in Zone 2 explosive atmosphere

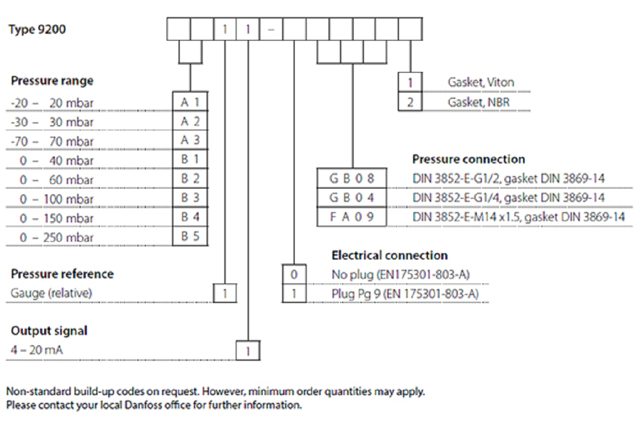

Product ordering key
Please contact your local Danfoss Office for further information.
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| Data sheet | MBS 9200 Low Pressure Transmitter for Industrial Applications | French | Multiple | 16 Mar, 2023 | 1.2 MB | |
| Data sheet | MBS 9200 Low Pressure Transmitter for Industrial Applications | Polish | Multiple | 16 Mar, 2023 | 1.2 MB | |
| Data sheet | MBS 9200 Low Pressure Transmitter for Industrial Applications | Spanish, Castilian | Multiple | 16 Mar, 2023 | 1.2 MB | |
| Data sheet | MBS 9200 Low Pressure Transmitter for Industrial Applications | Chinese (CN) | Multiple | 16 Mar, 2023 | 1.3 MB | |
| Data sheet | MBS 9200 Low Pressure Transmitter for Industrial Applications | German | Multiple | 16 Mar, 2023 | 1.2 MB | |
| Data sheet | Pressure transmitter, type MBS 9200 | English | Multiple | 03 Mar, 2021 | 1.0 MB | |
| Data sheet | Pressure transmitter, type MBS 9200 | Italian | Multiple | 16 Mar, 2023 | 1.2 MB | |
| Data sheet | Pressure transmitter, type MBS 9200 | Russian | Multiple | 16 Mar, 2023 | 1.3 MB |
Approvals
ATEX compliance
ROHS compliance
CE-marked
UL
Approval Certificates
