Industrial solenoid valves

Efficiently controlling fluids

Danfoss offers an exceptionally wide range of high performance solenoid valves, available in direct-operated, servo-operated and assisted lift versions. An easy, economical way to control and regulate fluids and gases. Danfoss solenoid valve bodies and electrical coils are normally supplied separately and then combined, but the valves are also available as complete units if required.

Solenoid valves overview

Test solenoid coils easily with Magnetic Tool

Ensuring that a solenoid valve coil is working properly, or detecting a faulty one, is an important step in many repair or installation projects.

Click to read more

We offer a general B valve series with a high capacity and the A series is more economic and compact. Danfoss solenoid valves are assembled quickly and simply without tools, providing optimum product flexibility and availability. A coil can be replaced if needed without stopping or draining the system.

Applications for solenoid valves

Our solenoid valve program includes valves for air, steam, oil, and gas, suiting a number of industrial applications that require high performance in these and other applications:

Laundry and dry-cleaning equipment
Industrial washing equipment
Autoclaves/sterilizers
Compressors and vacuum pumps
Plastic moulding machinery
Steam boilers
Food processing machinery
Sprinklers and fire fighting systems
Dentist equipment
Coffee machines
Boilers

Solenoid valve selector

The tool is intended to make it easy for installers and end-users to specify the correct industrial solenoid valves for a range of standard applications.

Industrial valve and switch selector

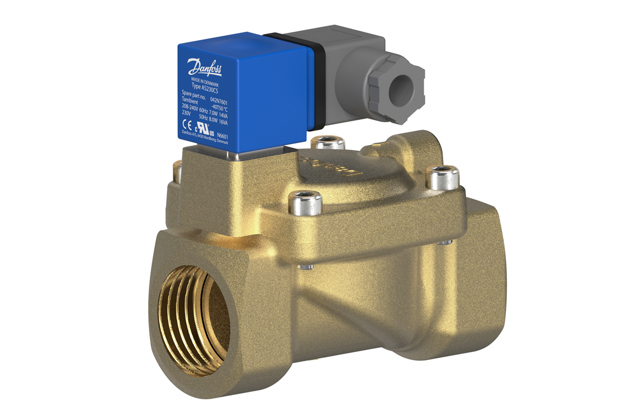

Drinking water solenoid valves - Danfoss

New solenoid valves for drinking water

WRAS and RISE approved solenoid valves ensure your compliance. Danfoss solenoid valves are the clever choice for installers and the safe choice for drinking water.

Solenoid valves for drinking water

Features and benefits

Clip-on coil

Coil range up to IP67

Best water hammer damping

Long lifetime and high
performance

Insensitive to dirt

Broad range and customized solutions

Protect your system - Hammer your costs

Solenoid, angle seat and thermostatic valves - a fluid control product overview.

Read brochure

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type

Highlighted products

Something went wrong. We are working on this. Please, try again a bit later.

Support

Looking for support?

Are you a wholesaler or installer? Visit the dedicated support portal to get easy access to all relevant tools and information from Industrial products.

Quick Links

Need technical information? Get easy access to data sheets for our products as well as direct links to our product catalog here.

Learning

Case studies

Something went wrong. We are working on this. Please, try again a bit later.

Articles

Something went wrong. We are working on this. Please, try again a bit later.

FAQ

Troubleshooting solenoid valves – NC normally closed (armature tube is straight without dent)

Symptom: Solenoid valve does not open, no flow

Power should be on coil but valve is closed. Voltage on coil?

If no voltage on coil:

Check coil supply: Is supply activated?
If not – supply or fuse may be defect.

Power should be on coil but valve is closed. Voltage on coil?

If voltage on coil:

Use a magnetic detector.
Lift coil slightly and note whether it offers resistance against lifting.
Eventually use a permanent magnet.
NOTE: Never remove a coil with voltage applied for more than
2 seconds – it may burn out.

Power should be on coil but valve is closed. Correct coil / correct coil voltage?

Check to make sure the coil’s electrical requirements are the same as
the installation supply.

Diffential pressure too high for body or coil?

Check coil data. If necessary, replace coil with correct version.
Reduce differential pressure, e.g. by limiting inlet pressure.

Differential pressure too low for body?

Check valve body data and differential pressure. If necessary, replace
valve body with correct version.

Damaged / bent armature tube.

Replace valve.

Dirt / deposit blocking armature or diaphragm too stiff,

Clean orifice with needle or similar (max diameter 0.5 mm). Blow clean with compressed air. If necessary, replace defective component(s).

Dirt / deposit in pilot hole.

Clean pilot hole with a pin or needle.

Symptom: Solenoid valve partly opens, low flow

Differential pressure too low for body?

Check valve data, incl. differential pressure.
Replace valve with correct version.

Damaged or bent armature tube.

Replace valve.

Dirt at diaphragm / diaphragm damaged.

Clean diaphragm. If necessary, replace defective component(s).

Armature partly blocked / dirt or deposit in armature tube.

Clean valve. If necessary, replace defective component(s).

Symptom: Solenoid valve does not close/partly closes

Voltage remains on coil.

First lift coil slightly and note whether it offers resistance against lifting.
NOTE: Never remove a coil with voltage applied for more than
2 seconds – it may burn out

Dirt on main orifice, or on pilot orifice, or equalizing orifice in diaphragm, in armature tube or equalizing unit blocked.

Clean orifice with needle or similar (max diameter 0.5 mm).
Blow clean with compressed air.
If necessary, replace defective component(s).

Pulsation in pressure line. Differential pressure too high in open position. Pressure on outlet side periodically higher than pressure on inlet side.

Check valve data.
Check pressure and liquid flow.
Check rest of installation.
Replace valve with a more suitable alternative.

Damaged or bent armature tube

Replace valve.

Defective valve plate, diaphragm or valve seat. Dezincification, dirt, deposit or damage on main or pilot orifice.

Check pressure and liquid flow.
Replace defective component(s).

Diaphragm upside down.

Check correct installation of valve (see instruction/datasheet).

Symptom: Solenoid valve making noise

Hum (only on AC voltage 50/60 Hz)

Hum caused by AC frequency can be removed by changing to coil
with rectifier.
Inspect and clean inside armature and armature tube.
Can also be dirt or armature or spring worn out / defect (Replace valve or parts).

Water hammer when valve opens. Water hammer when valve closes

See installation guide.
Pipes very long and pipe diameter too small.

Differential pressure too high and / or pulsation in pressure line

Check valve data.
Check pressure and liquid flow.
Check for back pressure.
Check rest of installation.
Replace valve with a more suitable alternative.

Symptom: Coil burnt – melted; coil with voltage on

Incorrect voltage / frequency.

Check coil data. If necessary, change to correct coil type. Check wiring
diagram and wiring. Check maximum voltage variation:
Permissible voltage variation: +/- 10% for dual frequency;
DC and NO applications +10% / -15% for AC on single frequency
voltages.

Differential pressure too high.

Check coil data. If necessary, replace coil with correct version.
Reduce differential pressure, e.g. by limiting inlet pressure.

Coil short cut because of humidity, wrong coil IP rating, too high ambient temperature, too high media temp.

Check coil data and differential pressure and ambience temperatures
and media and check with coil and valve specifications.

Damaged / bent armature tube.

Replace valve.

Dirt at armature / armature tube / armature stuck.

Clean armature tube and armature. If necessary, replace defective
component(s).

Troubleshooting solenoid valves – NO normally open (armature tube is straight with dent)

Symptom: Solenoid valve does not open, no flow

Power should be on coil but valve is open. Voltage on coil?

If no voltage on coil:

Check coil supply: Is supply activated?
If not – supply or fuse may be defect.

Power should be on coil but valve is closed. Voltage on coil?

If voltage on coil:

Power should be on coil but valve is closed. Correct coil / correct coil voltage?

Check to make sure the coil’s electrical requirements are the same as
the installation supply.

Diffential pressure too high for body or coil?

Check coil data. If necessary, replace coil with correct version.
Reduce differential pressure, e.g. by limiting inlet pressure.

Differential pressure too low for body?

Check valve body data and differential pressure. If necessary, replace
valve body with correct version.

Damaged / bent armature tube

Replace valve.

Dirt / deposit blocking armature or diaphragm too stiff.

Clean orifice with needle or similar (max diameter 0.5 mm). Blow clean with compressed air. If necessary, replace defective component(s).

Dirt / deposit in pilot hole

Clean pilot hole with a pin or needle.

Symptom: Solenoid valve partly opens, low flow

Diffential pressure too low for body?

Check valve data, incl. differential pressure.
Replace valve with correct version.

Damaged or bent armature tube.

Replace valve.

Dirt at diaphragm / diaphragm damaged

Clean diaphragm. If necessary, replace defective component(s) .

Armature partly blocked / dirt or deposit in armature tube

Clean valve. If necessary, replace defective component(s).

Symptom: Solenoid valve does not close/partly closes

Voltage remains on coil

First lift coil slightly and note whether it offers resistance against lifting.
NOTE: Never remove a coil with voltage applied for more than
2 seconds – it may burn out.

Dirt on main orifice, or on pilot orifice, or equalizing orifice in diaphragm, in armature tube or equalizing unit blocked.

Clean orifice with needle or similar (max diameter 0.5 mm).
Blow clean with compressed air.
If necessary, replace defective component(s).

Pulsation in pressure line. Differential pressure too high in open position. Pressure on outlet side periodically higher than pressure on inlet side.

Check valve data.
Check pressure and liquid flow.
Check rest of installation.
Replace valve with a more suitable alternative

Damaged or bent armature tube

Replace valve.

Defective valve plate, diaphragm or valve seat. Dezincification, dirt, deposit or damage on main or pilot orifice

Check pressure and liquid flow.
Replace defective component(s)

Diaphragm upside down

Check correct installation of valve (see instruction/datasheet)

Symptom: Solenoid valve making noise

Hum (only on AC voltage 50/60 Hz)

Water hammer when valve opens. Water hammer when valve closes

See installation guide.
Pipes very long and pipe diameter too small.

Differential pressure too high and / or pulsation in pressure line

Check valve data.
Check pressure and liquid flow.
Check for back pressure.
Check rest of installation.
Replace valve with a more suitable alternative.

Symptom: Coil burnt – melted; coil with voltage on

Incorrect voltage / frequency.

Differential pressure too high.

Check coil data. If necessary, replace coil with correct version.
Reduce differential pressure, e.g. by limiting inlet pressure.

Coil short cut because of humidity, wrong coil IP rating, too high ambient temperature, too high media temp.

Check coil data and differential pressure and ambience temperatures
and media and check with coil and valve specifications.

Damaged / bent armature tube.

Replace valve.

Dirt at armature / armature tube / armature stuck.

Clean armature tube and armature. If necessary, replace defective
component(s).
