Servo-operated solenoid valves for multiple applications

EV220B 6-22 is a direct servo-operated 2/2-way solenoid valve program with connections from 1/4" to 1". This program is especially for OEM applications demanding a robust solution and moderate flow rates.

EV220B 15–50 is a universal indirect servo-operated 2/2-way solenoid valve program. Valve body in brass, dezincification resistant brass and stainless steel ensures that a broad variety of application can be covered.

Built-in pilot filter as standard, adjustable closing time and enclosures up to IP67 ensures optimal performance even under critical working conditions.

EV220B 65 - 100 is a 2/2-way solenoid valve program for use in robust industrial applications, demanding high flow rates. The valve is designed with cast iron valve body and flanged connection. Water-hammer damped design and built-in pilot filter ensures a reliable operation.

特点和优势

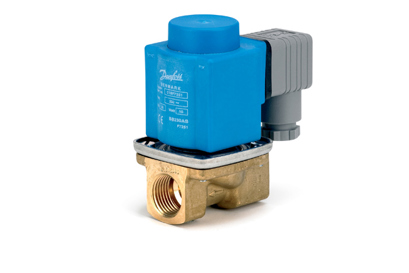

EV220B 6-22 - Danfoss
EV220B 6-22
  • For water, oil, compressed air and similar neutral media
  • Flow range from 0.2 – 19 m³/h
  • Differential pressure from 0.1 – 20 bar
  • Media temperature from -30 – 100 °C
  • Ambient temperature: Up to 80 °C
  • Coil enclosure: Up to IP67
  • Thread connections: From G ¼ – G 1
  • DN 6 – 22
  • Viscosity: Up to 50 cSt
  • Brass version NC and NO
  • DZR brass version NC
  • FKM and EPDM
  • Also available with NPT thread

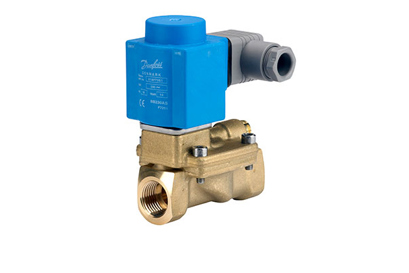

EV220B 15-50 - Danfoss
EV220B 15-50
  • For water, steam, oil, compressed air and gases
  • Flow range for water: 1.3 – 160 m³/h
  • Differential pressure: 0.3 – 16 bar
  • Media temperature from -30 – 140 °C
  • Ambient temperature: Up to 80 °C
  • Coil enclosure: Up to IP67
  • Thread connections: From G ½ – G 2
  • DN 15 – 50
  • Viscosity: Up to 50 cSt
  • Water hammer damped
  • Built in filter for protection of pilotsystem
  • Adjustable closing time available
  • EV220B NC and NO brass version for neutral liquids and gasses
  • EV220BD NC DZR version for neutral and slightly aggressive liquids and gases
  • EV220BSS NC Stainless steel version for neutral and aggressive liquids and gases
  • Also available with NPT thread

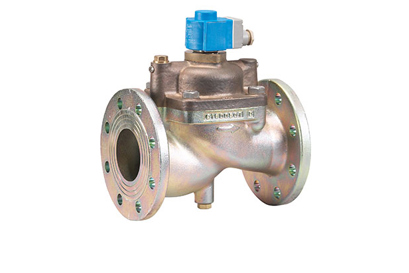

EV220B 65-100 - Danfoss
EV220B 65-100
  • For water and similar neutral media
  • Flow range for water: 25 – 400 m³/h
  • Ambient temperature: Up to 80 °C
  • Differential pressure: Up to 10 bar
  • Viscosity: Up to 50 cSt
  • Coil enclosure: Up to IP67
  • Flange connections: 2 1/2, 3 and 4”
  • Water hammer damped
  • Built-in filter for protection of pilot system
  • Seal material: EPDM and NBR

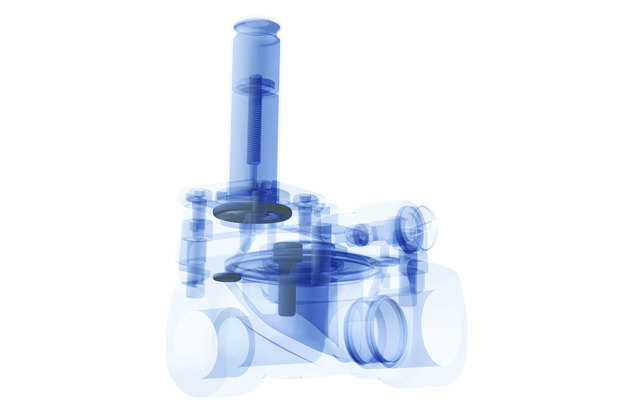

Solenoid valve selector - Danfoss

Find the right valves

The tool is intended to make it easy for installers and end-users to specify the correct industrial solenoid valves for a range of standard applications.

Go to the valve selector

文档

文档
类型 名称 语言 适用于 已更新 下载 文件类别
Data sheet Servo-operated 2/2-way solenoid valves Type EV220B 15 - EV220B 50 English Multiple 01 9月, 2023 20.6 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves Type EV220B 15 - EV220B 50 German Multiple 18 7月, 2017 2.5 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves Type EV220B 15 - EV220B 50 Spanish, Castilian Multiple 18 7月, 2017 2.5 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves Type EV220B 15 - EV220B 50 Chinese (CN) Multiple 27 6月, 2017 2.6 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves Type EV220B 15 - EV220B 50 French Multiple 27 6月, 2017 2.5 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves Type EV220B 15 - EV220B 50 Russian Multiple 18 7月, 2017 2.5 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves Type EV220B 15 - EV220B 50 Italian Multiple 27 6月, 2017 2.5 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves Type EV220B 15 - EV220B 50 Portuguese Multiple 27 6月, 2017 2.5 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves Type EV220B 15 - EV220B 50 Polish Multiple 27 6月, 2017 2.5 MB .pdf
Data sheet Solenoid valves, type EV220B 6 - EV220B 22 English Multiple 06 9月, 2023 14.5 MB .pdf
Data sheet Solenoid valves, type EV220B, EV220BW Ukrainian Ukraine 07 8月, 2023 20.8 MB .pdf
