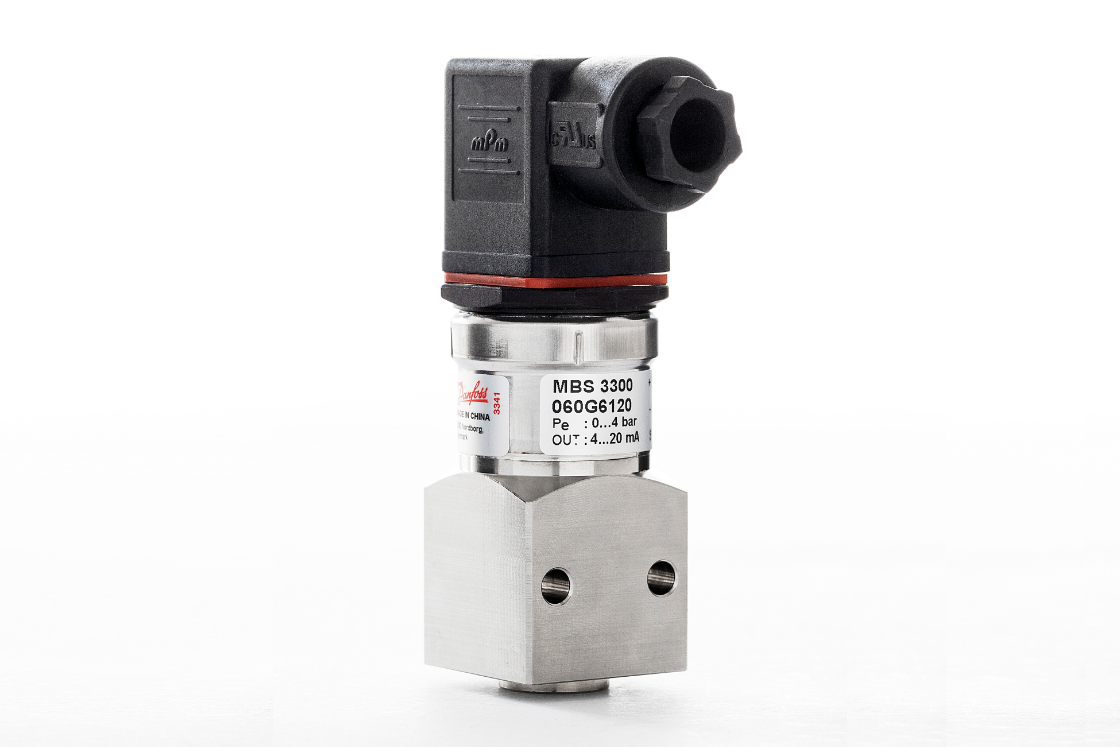

MBS 3300, general purpose pressure transmitter for marine applications

MBS 3300 marine approved general purpose pressure transmitters

The general purpose pressure transmitter is designed for use in almost all marine applications, and offers a reliable pressure measurement, even under harsh environmental conditions. The flexible pressure transmitter programme covers the relevant marine approvals, absolute or gauge (relative) versions, measuring ranges from 0 – 1 to 0 – 600 bar and a wide range of pressure and electrical connections.

View the 3D models:

The version consists of two series:

MBS 3300 – without integrated pulse-snubber
MBS 3350 – with integrated pulse-snubber

The integrated pulse-snubber offers a high degree of protection against cavitation and liquid hammer, and the well thought out design results in excellent vibration stability and an exceptional robustness. The high degree of EMI protection equips the pressure transmitter to meet most requirements.

Features and benefits

All required marine approvals to ease your engineering process
Designed to confidently fit-and-forget, with a fully welded design that provides superb media compatibility as well as zero drift construction ensuring long-term stability
Robust, shock- and vibration-resistant solution with high-electromagnetic compatibility for use in harsh marine applications
For medium and ambient temperatures up to 125 °C
Output signals: 4 – 20 mA
Enclosure and wetted parts of AISI 316L
A wide range of pressure and electrical connections
For use in ATEX Zone 2 explosive atmospheres

The world's biggest ships rely on tiny components

Danfoss is present all over the world. In fact, take a look inside practically any ship and you will find Danfoss components playing a key role in saving fuel costs, improving safety on board, reducing emissions and product life cycle costs.

Danfoss pressure transmitter | Walkthrough

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
Brochure	Danfoss Sensing Solutions for the marine sector	English	Multiple	06 Dec, 2020	5.5 MB	.pdf

Approvals

ABS American Bureau of Shipping
Bureau Veritas, BV
CCS China Classification Society
Det Norske Veritas/Germanisher Lloyd GL DNV
Registro Italiana Navale, RINA
Nippon Kaiji Kyokai, NKK
KR Korean Register of Shipping
RMRS Russian Maritime Register of Shipping
ATEX
CE marked
RoHS compliant
UL

Approval Certificates


Type	Name	Language	Valid for	Download	Expiration date	File type
EU-UK Declaration	Danfoss EU-UK 064G9615.11	English	Multiple	2.8 MB	29 Nov, 2027	.pdf
Explosive Safety Certificate	UL E227388	English	Multiple	68.7 KB		.pdf
Electrical Safety Certificate	UL E311982	English	Multiple	804.3 KB		.pdf
