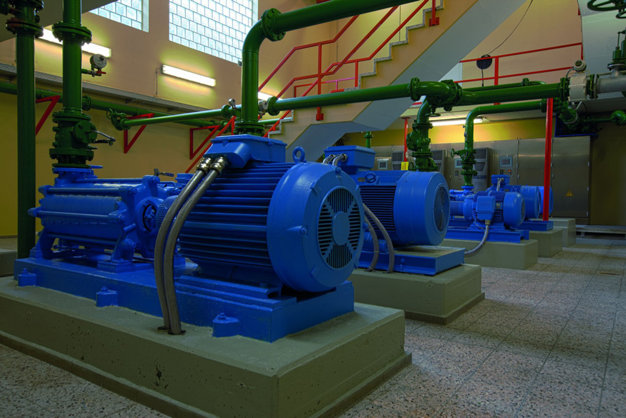

Maximaal energierendement voor water- en afvalwatertoepassingen
De VLT® AQUA Drive is ontworpen om gemotoriseerde AC-toepassingen op het gebied van water en afvalwater optimaal te laten presteren. De frequentieregelaar is dankzij zijn vele krachtige standaardfuncties, die uit te breiden zijn met prestatieverbeterende opties, geschikt voor zowel nieuwe als renovatieprojecten.
We hebben alle mogelijkheden, welke specifiek voor de water- en afvalwatermarkt ontworpen zijn, voor u op een rijtje gezet inclusief korte video's, via deze link.
Meer informatie in de VLT AQUA Drive Selectiegids.
De aanzienlijk variërende dagelijkse belasting van water- en waterzuiveringsinstallaties maakt het economisch haalbaar om motorregeling in te zetten voor draaiende apparatuur, zoals pompen en blowers. De nieuwe generatie VLT AQUA Drive kan in het eerste jaar realistische besparingen opleveren van 10-30% ten opzichte van traditionele frequentieregelaars. Door de lange levensduur, het lage energieverbruik en de lage onderhoudskosten zijn de exploitatiekosten minimaal.
De snelle en gebruiksvriendelijke setup van de water- en pompfuncties verkort de installatietijd en biedt een optimale energie-efficiëntie en motorregeling. Door de belangrijkste parameters bij elkaar te zetten, neemt de kans op een onjuiste configuratie aanzienlijk af.
Voedingsspanning en vermogensbereik
- 1 x 200-240 V...1,1-22 kW
- 1 x 380-480 V...7,5-37 kW
- 3 x 200-240 V...0,25-45 kW
- 3 x 380-480 V...0,37 kW – 1 MW
- 3 x 525-600 V...0,75-90 kW
- 3 x 525-690 V...1,1 kW – 1,4 MW
Low harmonic drive
- 3 x 380-480 V...132-450 kW
12-puls frequentieregelaar
- 3 x 380-500...250-1000 kW
- 3 x 525-690...250-1400 kW
Kenmerken en voordelen
Uw productiemiddelen worden beschermd door speciaal ontworpen software die bijvoorbeeld waterslag voorkomt
Maximaal energierendement dankzij de bedieningsalgoritmen van de frequentieregelaar en het ontwerp, die gericht zijn op vermindering van warmteverliezen
Grote energiebesparingen op het gebied van airconditioning dankzij de unieke backchannelkoeling die 90% van de vrijgekomen warmte buiten de ruimte afvoert.
De elektromagnetische verstoring en de harmonische vervorming worden beperkt, dankzij het ingebouwde, schaalbare RFI-filter en de geïntegreerde DC-tussenkringspoelen
Perfecte systeemintegratie en aanpassing aan de toepassing dankzij de vrij programmeerbare waarschuwingen en alarmen
Energiebesparing van 3-8% als gevolg van de automatische energieoptimalisatie (AEO)
