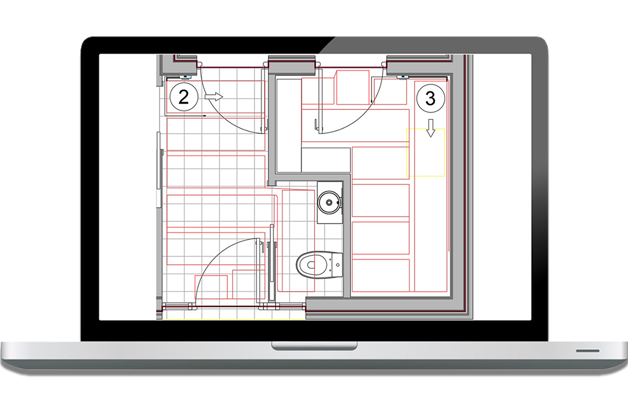

EH Plugin for AutoCAD

The plugin supports your engineering and design journey by making your work quicker - all thanks to simple functionalities in calculating all lengths, dimensions, and product data of cables and mats. It covers all applications within electric heating projects: electric floor heating, ice and snow melting systems, pipe tracing, cold stores, sport fields, vineyards etc.

By utilising the plugin, you will reduce design time for your project, providing all the necessary information for installers in HTML/PDF format: BoM, resistance value check list, warranty list format. It enables all project information to be consolidated in one file.

Plugin can be used with AutoCAD 2021.
