Digital controllers

Digital controllers have unique features allowing you to reduce energy waste. Equipped with temperature and moisture sensors, control modes, and special functions, they ensure accurate temperature settings, reducing energy consumption costs by up to 40 percent.

The DEVIreg™ 850 / ECtemp™ 850 is fully automatic, with temperature and moisture sensors for when ice and snow melts on the ground, such as pavements, roads, and ramps; as well as for the roof, gutter, gutter valleys and down pipes.

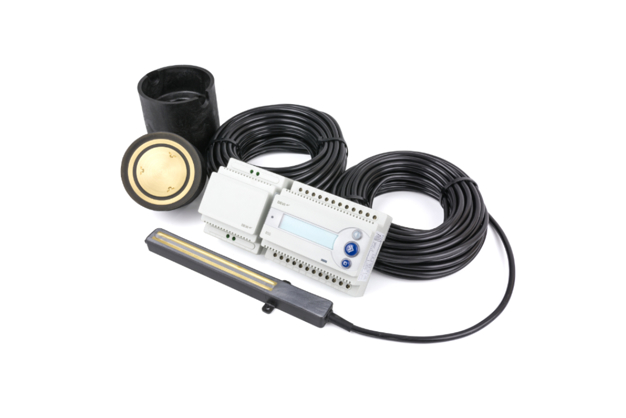

DEVIreg™ 850

The DEVIreg™ 850 is an advanced thermostat with an LED display used for outdoor ground or roof applications. The sensors provide information about both moisture level and temperature, resulting in optimal control of the heating system.
The controller can handle up to 2 independent areas.

In the dual / combination systems it is possible to prioritise between the zones, e.g. if only a limited power output is available.

Applications:
• Roofs, gutters, downpipes, drain lines
• Ground, walkways, outdoor steps
• Road/concrete asphalt
• Mastic asphalt

DEVIreg™ 850

DEVIreg™ Multi

DEVIreg™ Multi is 7 channel electronic programmable controller to be installed on DIN rail. Every channel can be individually set up with three control modes — with temperature sensors, time proportional power regulation without sensor, and manually on/off with time limitation. Сhannel inputs can be selected via software between 8 types of temperature sensors including NTC 15 kOhm at 25°C. Modbus RS485 opto-insulated serial interface gives the possibility for BMS control.

DEVIreg™ Multi

Features and benefits using outdoor digital controllers

Single, combination or dual zones

Up to 4 sensors

Moisture and temperature sensing

Alarm function

Efficient control snow removal

Up to 40% Energy saving

Automatic ”Around the Clock” snow clearing service

Warranty

At Danfoss, it is important for us to deliver high-quality products with long-lasting effects. Should you, against all expectations, experience a problem with your product, Danfoss offers a warranty for electric heating products valid from the date of purchase that was no later than 2 years from production date.

Depending on the product, the product guarantee is valid for two years, five years, or twenty years.

Product warranty covers costs for:

product replacement with a new comparable product or repair of the product
transportation costs

Warranty terms

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
Application guide	DEVI Ground Application manual	Swedish	Sweden	22 Jun, 2022	8.3 MB	.pdf
Application guide	DEVI Ground Application manual	Danish	Denmark	03 Jun, 2021	2.7 MB	.pdf
Application guide	DEVI Ground Application manual	Russian	Central Asia Unit	14 Sep, 2020	8.3 MB	.pdf
Application guide	DEVI Ground Application manual	Lithuanian	Multiple	29 Nov, 2019	8.2 MB	.pdf
Application guide	DEVI Ground Application manual	English	Multiple	25 Oct, 2016	10.2 MB	.pdf
Catalog	DEVI Product Catalogue	Finnish	Finland	25 Jan, 2023	30.6 MB	.pdf
Catalog	DEVI Product Catalogue	Norwegian Bokmål	Norway	28 Jun, 2022	13.6 MB	.pdf
Catalog	DEVI Product Catalogue	Finnish	Finland	04 Mar, 2022	10.4 MB	.pdf
Catalog	DEVI Product Catalogue	English	Multiple	05 Dec, 2022	38.3 MB	.pdf
Catalog	DEVI Product Catalogue 2022	Latvian	Latvia	29 Mar, 2022	3.1 MB	.pdf
Application guide	DEVI Roofs Application manual	English	Multiple	06 Sep, 2022	14.9 MB	.pdf
Application guide	DEVI Roofs Application manual	Danish	Denmark	03 Jun, 2021	3.5 MB	.pdf
Application guide	DEVI Roofs Application manual	Swedish	Sweden	26 Feb, 2021	15.0 MB	.pdf
Application guide	DEVI Roofs Application manual	Russian	Central Asia Unit	15 Sep, 2020	14.8 MB	.pdf
Data sheet	DEVIreg 850	German	Multiple	19 Mar, 2021	545.9 KB	.pdf
Data sheet	DEVIreg™ 850	English	Multiple	09 Jun, 2022	892.7 KB	.pdf
Data sheet	DEVIreg™ 850	Romanian, Moldavian, Moldovan	Romania	16 Feb, 2016	200.1 KB	.pdf
Data sheet	DEVIreg™ 850	Ukrainian	Ukraine	24 Dec, 2021	98.6 KB	.pdf
Data sheet	DEVIreg™ 850	Czech	Czech Republic	30 Oct, 2015	200.4 KB	.pdf
Data sheet	DEVIreg™ 850	Danish	Denmark	19 Oct, 2022	589.3 KB	.pdf
Data sheet	DEVIreg™ Multi	Ukrainian	Ukraine	24 Dec, 2021	70.5 KB	.pdf
Data sheet	DEVIreg™ Multi - Data sheet	Finnish	Finland	02 Sep, 2020	518.1 KB	.pdf
Data sheet	DEVIreg™ Multi Data sheet	English	Multiple	09 Jun, 2022	494.5 KB	.pdf
Catalog	Електричні кабельні нагрівальні системи DEVI	Ukrainian	Ukraine	14 Sep, 2022	5.0 MB	.pdf
