Heating Mats

Heating mats

The heating mats are used for installation in a thin layer of tile adhesive, self-leveling mixture, or similar. The standard minimum thickness of the floor layer is 5-8 mm while the thickness of electric heating mat is 3–4.5 mm. This minimizes the floor level increase. Electric heating mats consist of a thin cable securely fixed on self-adhesive glass-fiber mesh, usually of 50 cm width. Thin heating mats are manufactured as ready-made heating sections with a specific area (i.e. 0.5, 1, 1.5 … 12 m²) including a power supply cable (cold lead) and hermetically sealed connections.

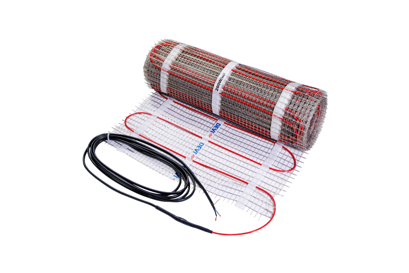

DEVImat™

DEVImat™ is an extremely high-quality, 360°, fully screened, twin conductor, self-adhesive, all-in-one mat with FEP insulated conductors and a red PVDF outer sheath (non UV stable). The round profile, low height (only 3.5 mm) and robust construction ensure a fast, simple, and safe installation, perfect for renovating existing floors. The cold lead has solid conductors ensuring fast installation. A clearly visible connection avoids accidentally installing the heated cable in the wall.

DEVImat™

DEVIheat™

DEVIheat™ is a high-quality, braided screen, single conductor, self-adhesive, all-in-one mat with FEP insulated conductors and a red PVDF outer sheath (non UV stable). The round profile, very low height (only 2.5 mm) and robust construction ensure a fast, simple and safe installation, perfect for renovating existing floors. The two cold leads have clearly visible connections to avoid accidentally installing the heated cable in the wall.

DEVIheat™

DEVIheat™ Mirror 150S

DEVIheat™ Mirror 150S heating mat is used for keeping the bathroom mirror mist free by mounting the heating mat in the adhesive behind the mirror.

The two cold leads have clearly visible connections to avoid accidentally installing the heated cable in the wall.

DEVIheat™ Mirror 150S

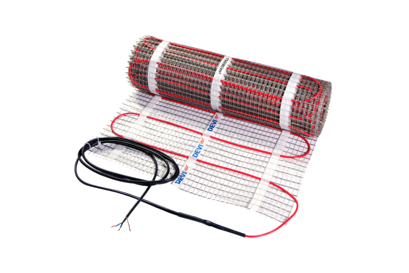

DEVIcomfort™

DEVIcomfort™ is an extremely high-quality, 360°, fully-screened, twin conductor, self-adhesive, all-in-one mat with a tough red PVC outer sheath (non UV stable). Its round profile, robust construction, and low height ensure a fast, simple, and safe installation which is perfect for renovating existing floors.

The cold lead has solid conductors ensuring fast installation. A clearly visible connection avoids accidentally installing the heated cable in the wall.
To ensure a long lifetime, all cables are closely inspected including tests for Ohmic resistance, high voltage, and material controls to ensure the quality.

DEVIcomfort™

DEVIdry™

DEVIdry™ is a floor heating system consisting of a foam construction only 8 mm high with heating elements inside.

This all-in-one heating element and underlay system can be used under wooden floorings, parquets, and laminates up to 22 mm.

DEVIdry™

Features and benefits using heating mats

Easy and quick installation

Quick responding floor heating

Low floor height increase

High durability, no maintenance

Long life-time with up to 20-year full warranty

Warranty

At Danfoss, it is important for us to deliver high-quality products with long-lasting effects. Should you, against all expectations, experience a problem with your product, Danfoss offers a warranty for electric heating products valid from the date of purchase that was no later than 2 years from production date.

Depending on the product, the product guarantee is valid for two years, five years, or twenty years.

Product warranty covers costs for:

product replacement with a new comparable product or repair of the product
transportation costs

Warranty terms

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type

Videos

Electric heating videos on YouTube

You can see all our videos about electric heating on a dedicated playlist on YouTube. Follow the link below.

Go to the electric heating playlist on YouTube

Tools and apps

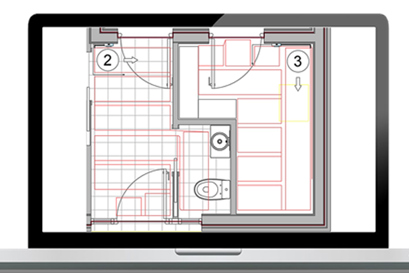

EH Plugin for AutoCAD

The Plugin supports your engineering and design journey by making your work faster due to simple functionalities in calculating all lengths, dimensions and product data of cables and mats. It covers all applications within Electric Heating projects: Electric floor heating, Ice & Snow melting systems, Pipe tracing, Cold stores, Sport fields, Vineyards etc.
By utilizing Plugin, you will reduce design time for the project, provide all necessary information for installers in HTML/PDF format: BoM, resistance value check list, warranty list format. It means all project information can be consolidated in one file.

Plugin can be used with AutoCAD 2021.

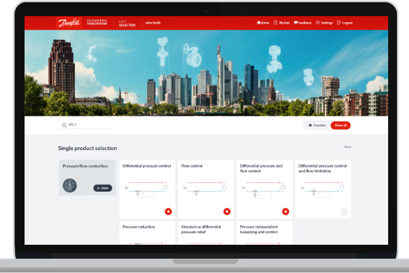

Heat Selector

the Danfoss Heat Selector is a best-in-class online selection tool that optimizes planning process for heating application experts. The Heat Selector saves time in calculation for product selection and guides you to the recommended product mix for the application at hand. At the same time, the Heat Selector provides you with easy access to all required documentation.

EH technical request forms

In order to clarify the project data for different applications use the technical request forms you find on this page

Case studies

Coming soon...

Related applications

if (isSmallPicture) { ; } else if (isBigColumns) { } else { }

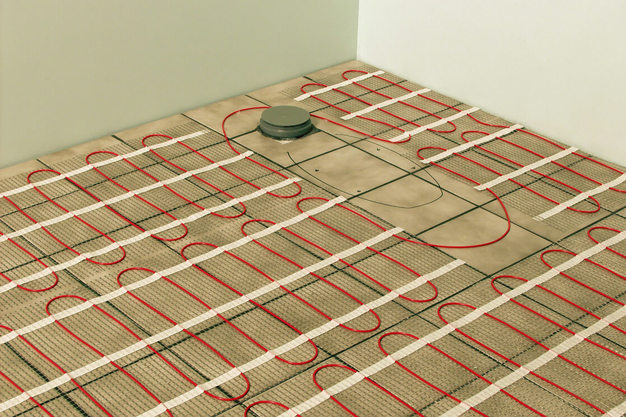

Electric floor heating
