DST P40I pressure transmitter

For use in corrosive environments, Danfoss offers the new robust DST P40I pressure transmitter made of Titanium and with ceramic pressure sensing element. DST P40I is optimized for use in applications such as desalination systems, seawater cooling, and chemical processing. The transmitter housing is made from high-strength Titanium Grade 2, which is exceptionally resistant to a wide range of acids, alkalis, Sodium Chloride, and polluted water. The pressure sensing element is made from ceramic AI2O3 96% with superior chemical immunity. The pressure transmitter works following the piezoresistive principle, and the Wheatstone Bridge is printed directly on the inside of the ceramic diaphragm to ensure fast response time and a high degree of precision in measurements. DST P40I has been designed and tested to be highly resistant to continuous vibrations and cavitation in reverse osmosis desalination pump systems.

Caractéristiques et avantages

High corrosion resistance, designed for use in harsh environments

Transmitter housing made of Titanium Grade 2

Ceramic sensing element made of AI2O3 96%

Pressure range 0-100 bar (standard)

Accuracy ± 1.5% FS (typical)

Temperature range 0-80°C

Output signal: 4 – 20 mA

Outstanding shock and vibration performance

Excellent EMC immunity, ensuring a failsafe measuring signal

DST P40I part of our desalination solution

The Danfoss DST P40I is a robust and accurate pressure transmitter designed specifically to meet requirements in desalination systems.

Documents

Documents
Type Nom Langue Valide pour Mis à jour Télécharger Type de fichier
Data sheet DST P40I Pressure transmitter for seawater data sheet Polish Poland 20 mars, 2023 1.7 MB .pdf
Data sheet Pressure transmitter, type DST P40I Spanish, Castilian Multiple 20 mars, 2023 1.7 MB .pdf
Data sheet Pressure transmitter, type DST P40I Chinese (CN) Multiple 20 mars, 2023 1.8 MB .pdf
Data sheet Pressure transmitter, type DST P40I Italian Multiple 20 mars, 2023 1.7 MB .pdf
Data sheet Pressure transmitter, type DST P40I German Multiple 20 mars, 2023 1.7 MB .pdf
Data sheet Pressure transmitter, type DST P40I English Multiple 26 févr., 2021 1.6 MB .pdf
Data sheet Pressure transmitter, type DST P40I Russian Multiple 20 mars, 2023 1.8 MB .pdf
Data sheet Pressure transmitter, type DST P40I French Multiple 20 mars, 2023 1.7 MB .pdf

Solutions associées

  • if (isSmallPicture) { ; } else if (isBigColumns) { } else { }

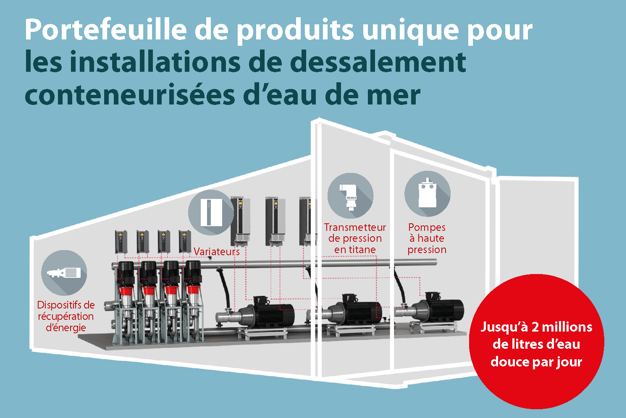

    Installation conteneurisée de dessalement d'eau de mer (SWRO - système d'osmose inverse)
