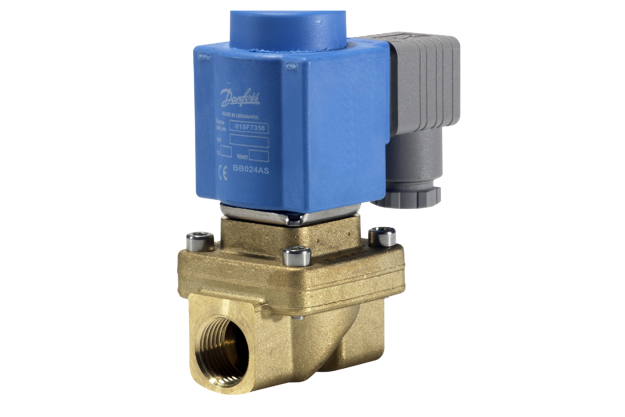

Válvulas solenoides EV250BW 10-22
EV250BW 10,12,18 & 22 with assisted lift can operate from zero and up to 10 bar differential pressure. This 2/2-way valve program is especially used in applications with low differential pressure but demanding moderate flow rates. This valve type is designed with an EPDM seal, lead-free dezincification resistant ECO brass for drinking water applications. - For water supply - Houses and large apartments - Kitchens and bathrooms - Commercial buildings - Industrial buildings - Zoning - Laundry - Dishwashing - Main inlet valves - Dosing Machines - Food processing.
EV250BW 10,12,18 y 22 con elevación asistida puede operar desde cero y hasta 10 bar de presión diferencial. Este programa de válvulas de 2/2 vías se utiliza especialmente en aplicaciones con baja presión diferencial pero que exigen caudales moderados. Este tipo de válvula está diseñado con un sello de EPDM, latón ECO sin plomo resistente a la descincificación para aplicaciones de agua potable. - Para suministro de agua - Casas y apartamentos grandes - Cocinas y baños - Edificios comerciales - Edificios industriales - Zonificación - Lavandería - Lavavajillas - Válvulas de entrada principales - Máquinas dosificadoras - Procesamiento de alimentos.
Características y ventajas
Diseñada para agua potable
Bobina Clip-on
Rango de caudal KV 2,5 - 7 m³/h
Presión diferencial 0 - 10 bar
Rango de temperatura del medio 0 – 90 °C
Temperatura ambiente: hasta 80 °C
Protección de la bobina: hasta IP67
Conexiones roscadas: G3/8, G1/2, G3/4 & G1
Viscosidad: hasta 50 CST
Golpe de ariete amortiguado
Aprobaciones y certificados
Valves are certified by RISE, notified body 1002. Valid in Denmark and Sweden. In accordance with Boverket Building Regulations (BBR 21, 2014-06-17) Certificate number SCO155-18.
Valves are certified by SINTEF. Valid in Norway. In accordance with NKB Product rules nr. 13, pkt. 3.2 – 3.6 -NT VVS 100, pkt. 6.4.2 & 6.4.8 -EN ISO 6509.
Inspection by DTI.
Valves are certified by Carso according to ACS guidelines, Circulaire 2002/571.
Hygenic certificate B-BK-60210-1275/19. Issued by Polish National Institute of Public health (PZH).
Wetted materials in accordance with 4MS (4 member states Germany, Holland, France, and UK), DVGW, KTW, and W270.
NC versions are WRAS approved.
In accordance with:
- Low Voltage Directive 2014/35/EU
- EN60730-1
- EN60730-2-8
- Pressure Equipment Directive 2014/68/EU
RoHS Directive 2011/65/EU

La elección inteligente: ¡leer más!
Lea más sobre la gama de válvulas solenoides para agua potable y encuentra una descripción general del extenso programa de productos en este folleto.
Homologaciones
Tipo | Nombre | Idioma | Valido para | Actualizado | Descargar | Tipo de archivo |
---|---|---|---|---|---|---|
Hygienic Certificate | CARSO 18 ACC LY 780 | French | Multiple | 06 jun., 2023 | 271.5 KB | |
Hygienic Certificate | PZH B-BK-60110-0524-2023 | Polish | Multiple | 23 may., 2023 | 310.4 KB | |
Hygienic Certificate | RISE SC0155-18 | English; Swedish | Multiple | 23 may., 2023 | 194.2 KB | |
Hygienic Certificate | SINTEF 3468 | English; Norwegian Bokmål | Multiple | 23 may., 2023 | 302.1 KB | |
Hygienic Certificate | WRAS 2003353 | English | Multiple | 23 may., 2023 | 787.3 KB |
Documentos
Tipo | Nombre | Idioma | Valido para | Actualizado | Descargar | Tipo de archivo |
---|---|---|---|---|---|---|
Data sheet | Solenoid valve type EV250BW | Swedish | Multiple | 29 dic., 2021 | 8.2 MB | |
Data sheet | Solenoid valve Type EV250BW | German | Multiple | 29 dic., 2021 | 8.2 MB | |
Data sheet | Solenoid valve Type EV250BW | English | Multiple | 17 abr., 2023 | 9.1 MB | |
Data sheet | Solenoid valve Type EV250BW | Danish | Multiple | 29 dic., 2021 | 8.2 MB | |
Data sheet | Solenoid valve Type EV250BW | French | Multiple | 18 may., 2023 | 9.3 MB | |
Data sheet | Solenoid valve Type EV250BW | Polish | Multiple | 29 dic., 2021 | 8.2 MB | |
Data sheet | Solenoid valve Type EV250BW | Spanish, Castilian | Multiple | 29 dic., 2021 | 8.2 MB |
