混合分流器

  • 概述
  • 文档
  • 相关产品

Danfoss 混合分流器用于将水地暖系统调节至适当的流量和供应温度。其旨在用于装配在我公司生产的 FH 型分集水器中,共同构成一个紧凑的低温地暖分配单元。

混合分流器可准确地混合热源提供的热水和地暖系统返回的冷却水。从而将地暖系统的供应温度调节至所需的温度。

我们提供不同的混合分流器供顾客选择。这些混合分流器具有不同的容量和循环泵。选配的安全温控器可保护地板免受过高温度的影响,电子变速泵可自行调节以确保正确的管路流量。我们还提供标准的 3 速泵内置止回阀确保正确的流向。顶部的通风口和供应系统中的温度计完成混合分流。

混合分流器拥有紧凑的设计和较高的灵活性,可直接安装在左侧或右侧的分集水器上。主供水管和回水管连接可以来自侧面或下面。

Midi 分流器

FHM 紧凑型混合分流器主要用于包含多个回路的地暖系统,此外,丹佛斯还提供更小型的 Midi 分流器。这些分流器旨在用于 1-3 条地暖回路,并且包含一个小型混合分流器以及 1、2 或 3 组分集水器和 CF2 + 无线控制系统主控制器,所有这些都是预先装配的。

特点和优势

根据混合分流器进行定制化制作:分集水器和混合分流器的尺寸完全匹配,因此您可以根据需要建立一个低温地暖分配单元。

更小尺寸:混合分流器和 FH 分集水器均具有较小的尺寸,可建立一个非常紧凑的分布单元,以安装在较小的空间中。

预装配 Midi 分流器:建立小型地暖系统的简单方法。只需连接到主供水源和回水管,并分配一个或多个 CF2+室内温控器来控制室温。

文档

文档
类型 名称 语言 适用于 已更新 下载 文件类别
目录 水地暖简便、可靠且多方受益 中文 (Zhōngwén), 汉语, 漢語 (CN) 中国 01 12月, 2015 5.9 MB .pdf
应用指南 专业的水地暖设计 优秀效果的保障 中文 (Zhōngwén), 汉语, 漢語 (CN) 中国 04 12月, 2015 5.2 MB .pdf
应用指南 Designing hydronic floor heating - Get the optimum results 芬兰语 芬蘭 06 10月, 2015 5.1 MB .pdf
应用指南 Designing hydronic floor heating - Get the optimum results 波兰语 波蘭 06 10月, 2015 5.1 MB .pdf
应用指南 Designing hydronic floor heating - Get the optimum results 丹麦语 丹麥 19 9月, 2019 2.8 MB .pdf
应用指南 Designing hydronic floor heating - Get the optimum results 土耳其语 土耳其 04 12月, 2015 3.6 MB .pdf
应用指南 Designing hydronic floor heating - Get the optimum results 立陶宛语 立陶宛 04 12月, 2015 5.0 MB .pdf
应用指南 Designing hydronic floor heating - Get the optimum results 俄语 Central Asia Unit 04 12月, 2015 5.2 MB .pdf
应用指南 Designing hydronic floor heating - Get the optimum results 德语 Multiple 19 5月, 2017 2.7 MB .pdf
应用指南 Designing hydronic floor heating (Application Guide) 英語 Multiple 06 7月, 2021 8.1 MB .pdf
应用指南 Designing hydronic floor heating (Application Guide) 捷克语 捷克共和國 06 3月, 2023 3.4 MB .pdf
目录 Hydronic floor heating - Easy, proven and profitable 土耳其语 土耳其 01 12月, 2015 5.4 MB .pdf
目录 Hydronic floor heating - Easy, proven and profitable 立陶宛语 立陶宛 04 12月, 2015 5.6 MB .pdf
目录 Hydronic floor heating - Easy, proven and profitable 俄语 Central Asia Unit 01 12月, 2015 5.8 MB .pdf
目录 Hydronic floor heating - Easy, proven and profitable 瑞典语 瑞典 10 3月, 2015 5.8 MB .pdf
目录 Hydronic floor heating - Easy, proven and profitable 波兰语 波蘭 16 3月, 2016 5.7 MB .pdf
目录 Hydronic floor heating - Easy, proven and profitable 捷克语 捷克共和國 24 10月, 2014 5.8 MB .pdf
目录 Hydronic floor heating - Easy, proven and profitable 法语 法國 19 10月, 2015 7.5 MB .pdf
目录 Hydronic floor heating - Easy, proven and profitable 德语 奧地利 29 10月, 2014 4.2 MB .pdf
目录 Hydronic floor heating - Product guide 丹麦语 丹麥 14 8月, 2017 5.0 MB .pdf

相关产品

  • if (isSmallPicture) { 丹佛斯板材和管道; } else if (isBigColumns) { 丹佛斯板材和管道 } else { 丹佛斯板材和管道 }

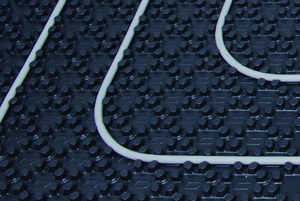

    板材和管道
