Maksimal styrke og reducerede installationsomkostninger

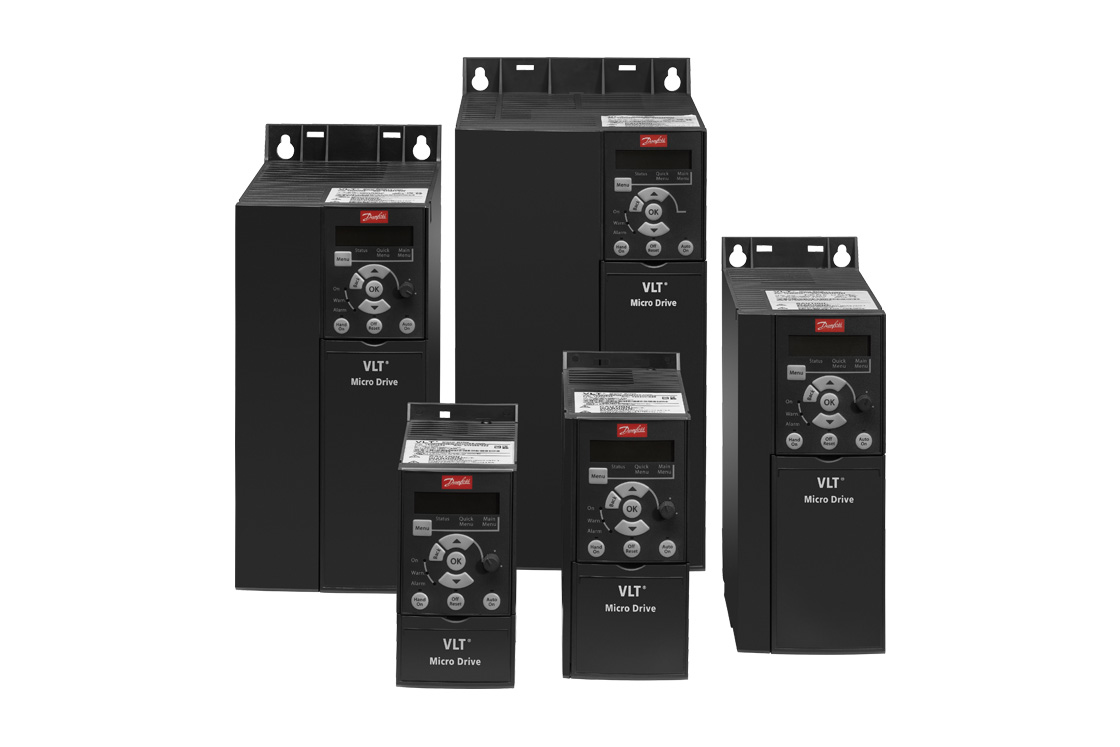

VLT® Micro Drive FC 51 er en lille frekvensomformer, men den er pålidelig og driftsikker. Der kan spares på tavleplads og installationsomkostninger takket være den kompakte størrelse og de minimale idriftsættelseskrav.
På trods af dens kompakte størrelse og nemme idriftsættelse, kan VLT® Micro Drive FC 51 indstilles til at udføre fejlfri drift, selv i komplekse applikationer. Den understøttes af en programmeringsguide til specifikke funktioner såvel som et PC-softwareværktøj til parameterudvælgelse. Og takket være de coatede PCB'er, sikrer frekvensomformeren pålidelig og omkostningseffektiv drift selv i krævende miljøer.
Forsyningsspændinger og effektområde
- 1 x 200–240 V...0,18–2,2 kW
- 3 x 200–240 V...0,25–3,7 kW
- 3 x 380–480 V..0,37–22 kW
Funktioner og fordele
Mulighed for montering side-om-side uden derating takket være det kompakte design
Minimeret risiko for indtrængen af støv takket være coatede PCB'er
Begrænsede radioforstyrrelser fra motorkabler på grund af indbyggede RFI-filtre
Forlænget levetid på frekvensomformeren og forbedret pålidelighed som resultat af den effektive køleplade, der fjerner varme fra elektronikken
Energiforbrug kan reduceres, da kinetisk energi i applikationen kan omformes til bremseeffekt, der bremser motoren
