Haptic electric steering with passive force-feedback

The electric steering input device e-Wheel 100 offers excellent steering controllability in Steer-by-wire fail safe applications. Allowing new cabin design flexibility, increased productivity and reduced operator fatigue.

It provides haptic passive force-feedback, which mimics the feel of conventional mechanically linked steering systems (such as hydro-static enforced feedback).

Features and benefits

OEMs

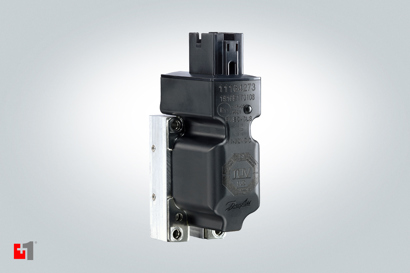

  • Direct ‘Plug & Play’ solution with PVED CLS steering and safety controller
  • Redundant CAN bus message, SIL 2 certified
  • Eliminates steering column and increases cabin design flexibility
  • Compact and robust design

Operators

  • Reduced operator fatigue - up to 57% reduced muscle activity and up to 6% increased productivity - when compared to conventional steering
  • Better visibility from cabin
  • Quick steering (variable steering ratio)
  • Smooth steering torque control

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide e-Wheel 100 Technical Information English Multiple 13 Feb, 2020 2.1 MB .pdf
