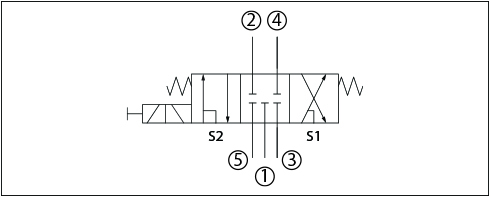

3-position, closed center
| Model code | Cavity | Rated pressure | Rated flow | 3D model |
| SV10-35-02 | SDC10-5 | 230 bar (3330 psi) | 18 lpm (4.8 gpm) |
STP files |
3-position, motor center
| Model code | Cavity | Rated pressure | Rated flow | 3D model |
| SV10-35-05 | SDC10-5 | 230 bar (3330 psi) | 18 lpm (4.8 gpm) |
STP files |
Product range
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| User guide | ICS Solenoid Valves Technical Information | English | Multiple | 22 Dec, 2022 | 28.9 MB |
