Spool type 4-way solenoid valves

  • Overview
  • Product range
  • Documents

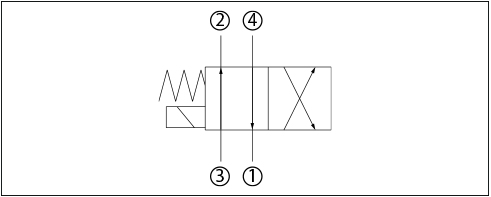

2-position, reversing

Model code

Cavity

Rated pressure

Rated flow

3D model

SV08-24-01 SDC08-4 230 bar (3300 psi) 8 lpm
(2 gpm)
STP files
HSV08-24-01 SDC08-4 350 bar (5075 psi) 11 lpm
(2.91 gpm)
STP files
SV09-24-01 SDC10-4 100 bar (1450 psi) 20 lpm
(5.3 gpm)
STP files
SV10-24-01 SDC10-4 230 bar (3300 psi) 15 lpm
(4 gpm)
STP files
HSV10-24-01 SDC10-4 350 bar (5075 psi) 25 lpm
(6.6 gpm)
STP files
SV15-24-01 NCS12/4 210 bar (3045 psi) 60 lpm
(16 gpm)
STP files

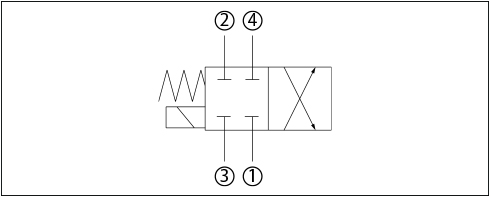

2-position, closed center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV08-24-02 SDC08-4 230 bar (3300 psi) 10 lpm
(3 gpm)
STP files
SV10-24-02 SDC10-4 230 bar (3300 psi) 20 lpm
(5.3 gpm)
STP files
SV15-24-02 NCS12/4 210 bar (3045 psi) 60 lpm
(16 gpm)
STP files

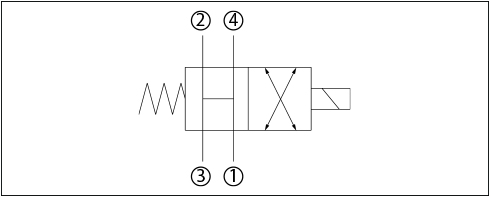

2-position, open center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV15-24-03 NCS12/4 210 bar (3045 psi) 50 lpm
(13 gpm)
STP files

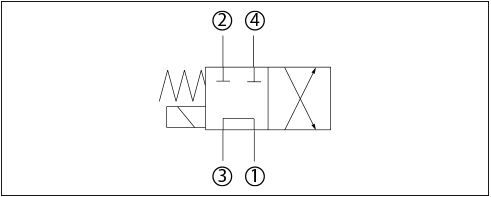

2-position, tandem center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV08-24-04 SDC08-4 230 bar (3300 psi) 8 lpm
(2 gpm)
STP files
SV15-24-04 NCS12/4 210 bar (3045 psi) 50 lpm
(13 gpm)
STP files



2-position, tandem center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV10-24-12 SDC10-4 230 bar (3300 psi) 18 lpm
(5 gpm)
STP files

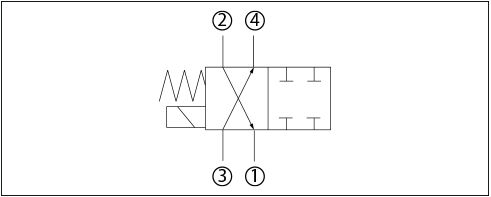

2-position

Model code

Cavity

Rated pressure

Rated flow

3D model

SV10-24-05 SDC10-4 230 bar (3300 psi) 25 lpm
(7 gpm)
STP files

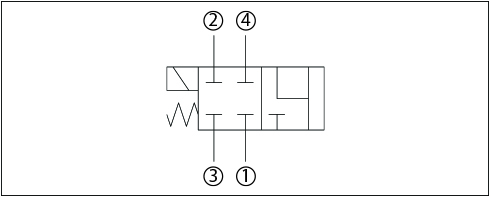

2-position, closed center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV10-24-06 SDC10-4 230 bar (3300 psi) 23 lpm
(6 gpm)
STP files

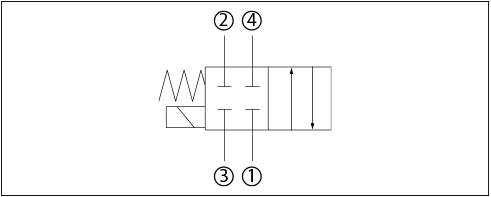

2-position, closed center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV10-24-07 SDC10-4 230 bar (3300 psi) 24 lpm
(6 gpm)
STP files

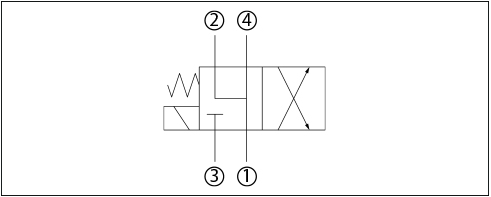

2-position, motor center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV08-24-08 SDC08-4 230 bar (3300 psi) 11 lpm
(3 gpm)
STP files

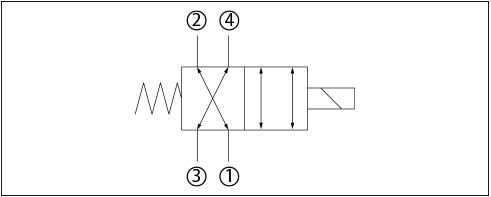

2-position, reversing

Model code

Cavity

Rated pressure

Rated flow

3D model

CP531-21 CP12-4 240 bar (3500 psi) 32 lpm
(8 gpm)
STP files

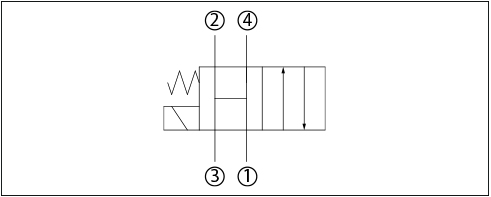

2-position, open center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV10-24-13 SDC10-4 230 bar (3300 psi) 21 lpm
(6 gpm)
STP files

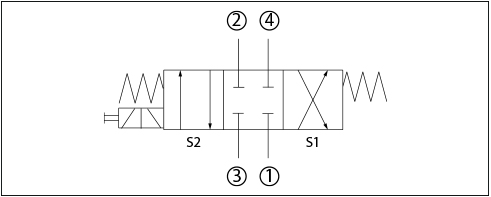

3-position, closed center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV08-34-02 SDC08-4 230 bar (3300 psi) 10 lpm
(2.6 gpm)
STP files
HSV08-34-02 SDC08-4 350 bar (5075 psi) 11 lpm
(2.91 gpm)
STP files
SV10-34-02 SDC10-4 230 bar (3300 psi) 20 lpm
(5 gpm)
STP files
HSV10-34-02 SDC10-4 350 bar (5075 psi) 25 lpm
(6.6 gpm)
STP files
SV15-34-02 NCS12/4 210 bar (3045 psi) 60 lpm
(16 gpm)
STP files



3-position, open center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV08-34-03 SDC08-4 230 bar (3300 psi) 8 lpm
(2 gpm)
STP files
SV15-34-03 NCS12/4 210 bar (3045 psi) 50 lpm
(13 gpm)
STP files



3-position, open center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV10-34-03 SDC10-4 230 bar (3300 psi) 25 lpm
(6.6 gpm)
STP files



3-position, tandem center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV08-34-04 SDC08-4 230 bar (3300 psi) 8 lpm
(2 gpm)
STP files
SV15-34-04 NCS12/4 210 bar (3045 psi) 50 lpm
(13 gpm)
STP files

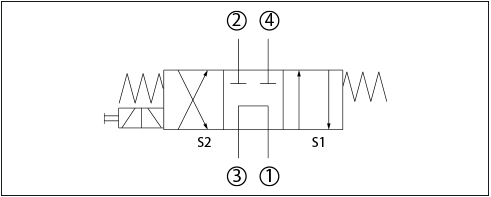

3-position, tandem center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV10-34-04 SDC10-4 230 bar (3300 psi) 15 lpm
(4 gpm)
STP files

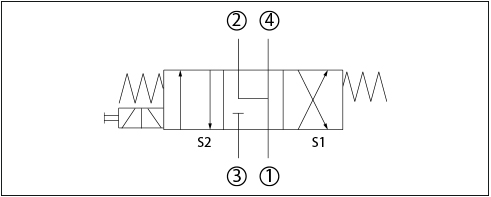

3-position, motor center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV08-34-05 SDC08-4 230 bar (3300 psi) 10 lpm
(2.6 gpm)
STP files
HSV08-34-05 SDC08-4 350 bar (5075 psi) 11 lpm
(2.91 gpm)
STP files
SV10-34-05 SDC10-4 230 bar (3300 psi) 20 lpm
(5 gpm)
STP files
HSV10-34-05 SDC10-4 350 bar (5075 psi) 25 lpm
(6.6 gpm)
STP files
SV15-34-05 NCS12/4 210 bar (3045 psi) 60 lpm
(16 gpm)
STP files

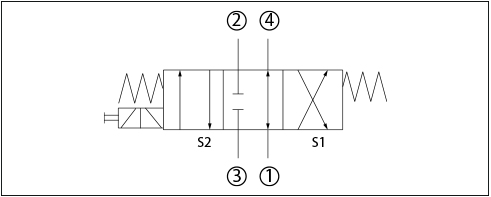

3-position, special center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV10-34-11 SDC10-4 230 bar (3300 psi) 24 lpm
(6 gpm)
STP files

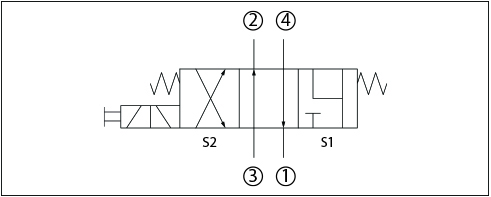

3-position, special center

Model code

Cavity

Rated pressure

Rated flow

3D model

SV10-34-14 SDC10-4 230 bar (3300 psi) 17 lpm
(4.5 gpm)
STP files



Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Solenoid Valves Technical Information English Multiple 18 Sep, 2020 34.0 MB .pdf
