Spool type 3-ways solenoid valves

Where to buy
  • Overview
  • Product range
  • Documents
Where to buy

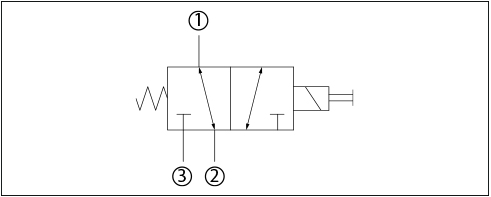

3-way, push type

Model code

Cavity

Rated pressure

Rated flow

3D model
SV08-23-01 SDC08-3 230 bar (3300 psi) 17 lpm
(4.5 gpm)		 STP files
HSV08-23-01 SDC08-3 350 bar (5075 psi) 16 lpm
(4.23 gpm)		 STP files
SV10-23-01 SDC10-3 230 bar (3300 psi) 28 lpm
(7 gpm)		 STP files
HSV10-23-01 SDC10-3 350 bar (5075 psi) 30 lpm
(8 gpm)		 STP files
CP521-21 CP12-3 240 bar (3500 psi) 60 lpm
(16 gpm)		 STP files

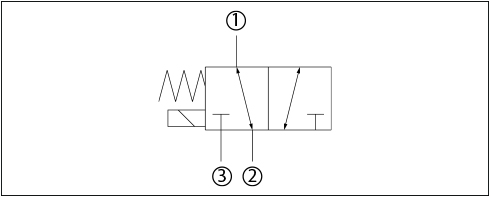

3-way, pull type

Model code

Cavity

Rated pressure

Rated flow

3D model
SV08-23-02 SDC08-3 230 bar (3300 psi) 10 lpm
(3 gpm)		 STP files
HSV08-23-02 SDC08-3 350 bar (5075 psi) 16 lpm
(4.2 gpm)		 STP files
SV09-23-02 SDC10-3 100 bar (1450 psi) 21 lpm
(6 gpm)		 STP files
SV10-23-02 SDC10-3 230 bar (3300 psi) 15 lpm
(4 gpm)		 STP files
HSV10-23-02 SDC10-3 350 bar (5075 psi) 28 lpm
(7 gpm)		 STP files

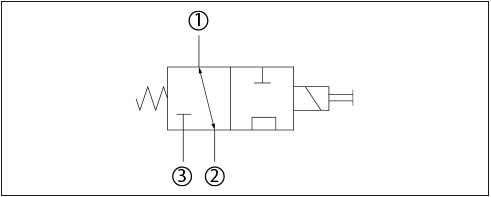

3-way, push type

Model code

Cavity

Rated pressure

Rated flow

3D model
SV08-23-03 SDC08-3 230 bar (3300 psi) 18 lpm
(5 gpm)		 STP files

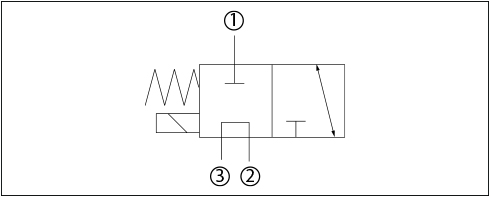

3-way, pull type

Model code

Cavity

Rated pressure

Rated flow

3D model
SV08-23-04 SDC08-3 230 bar (3300 psi) 10 lpm
(3 gpm)		 STP files
SV10-23-04 SDC10-3 230 bar (3300 psi) 20 lpm
(5 gpm)		 STP files
SV15-23-04 NCS12/3 210 bar (3045 psi) 50 lpm
(13 gpm)		 STP files



Product range

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Solenoid Valves Technical Information English Multiple 22 Dec, 2022 28.9 MB .pdf
