Spool type 2-way solenoid valves

  • Overview
  • Product range
  • Documents

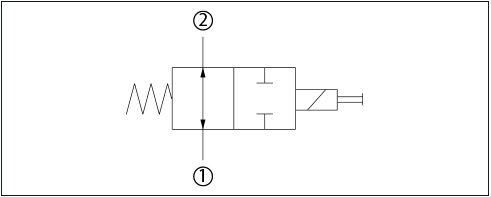

Normally open (push type)

Model code

Cavity

Rated pressure

Rated flow

3D model

SV08-22-01 SDC08-2 230 bar (3300 psi) 16 lpm
(4 gpm)
STP files
HSV10-22-01 SDC10-2 350 bar (5075 psi) 50 lpm
(13 gpm)
STP files

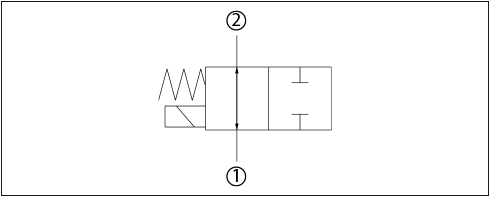

Normally open (pull type)

Model code

Cavity

Rated pressure

Rated flow

3D model

HSV08-22-01 SDC08-2 350 bar (5075 psi) 13 lpm
(3.4 gpm)
STP files
SV10-22-01 SDC10-2 230 bar (3300 psi) 27 lpm
(7 gpm)
STP files
SV15-22-01 NCS12/2 210 bar (3000 psi) 60 lpm
(16 gpm)
STP files
SV08-22-03 SDC08-2 230 bar (3300 psi) 12 lpm
(3.2 gpm)
STP files

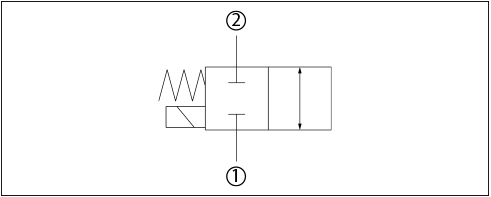

Normally closed (pull type)

Model Code

Cavity

Rated Pressure

Rated Flow

3D Model

SV08-22-02 SDC08-2 230 bar (3300 psi) 14 lpm
(4 gpm)
STP files
HSV08-22-02 SDC08-2 350 bar (5075 psi) 12 lpm
(3.2 gpm)
STP files
SV10-22-02 SDC10-2 230 bar (3300 psi) 35 lpm
(9 gpm)
STP files
HSV10-22-02 SDC10-2 350 bar (5075 psi) 50 lpm
(13 gpm)
STP files
SV15-22-02 NCS12/2 210 bar (3045 psi) 60 lpm
(16 gpm)
STP files



Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Solenoid Valves Technical Information English Multiple 18 Sep, 2020 34.0 MB .pdf
