Proportional pressure reducing valves

  • Overview
  • Product range
  • Documents

Pilot operated normally closed (inverse function)

Model code

Cavity

Rated pressure

Rated flow

3D model

PPR10-PAC SDC10-3 250 bar (3625 psi) 18 lpm
(5 gpm)
STP files

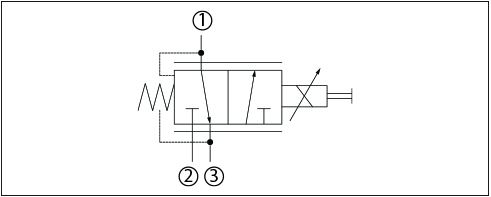

Direct acting normally open

Model code

Cavity

Rated pressure

Rated flow

3D model

CP558-24 SDC08-3 34 bar (500 psi) 4 lpm
(1 gpm)
STP files

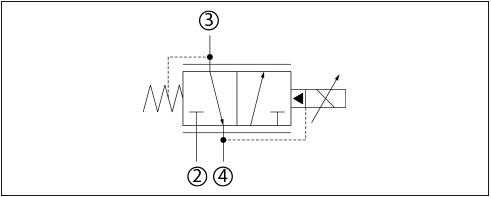

 Pilot operated normally open

Model code

Cavity

Rated pressure

Rated flow

3D model

PPR09-POD SDC10-4 50 bar (725 psi) 25 lpm
(7 gpm)
STP files

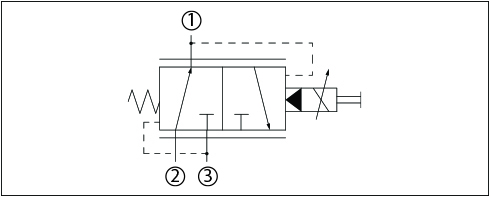

Pilot operated normally open

Model code

Cavity

Rated pressure

Rated flow

3D model

XRP 06 NCS06/3 315 bar (4500 psi) 25 lpm
(7 gpm)
STP files



Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Proportional Valves Technical Information English Multiple 18 Sep, 2020 8.5 MB .pdf
