Proportional flow control valves (compensated)

  • Overview
  • Product range
  • Documents

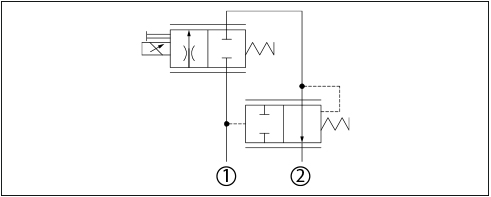

 Restrictive type normally closed

Model code

Cavity

Rated pressure

Rated flow

3D model

PFC10-RC SDC10-2 260 bar (3770 psi) 30 lpm
(8 gpm)
STP files
PFC12-RC SDC12-2 260 bar (3770 psi) 65 lpm
(17 gpm)
STP files
PFC16-RC SDC16-2 260 bar (3770 psi) 90 lpm
(24 gpm)
STP files

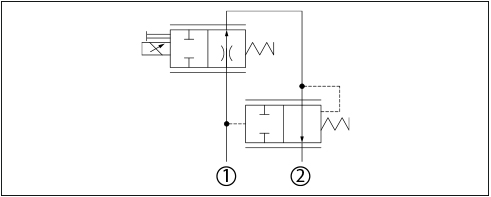

Restrictive type normally open

Model code

Cavity

Rated pressure

Rated flow

3D model

PFC10-RO SDC10-2 260 bar (3770 psi) 30 lpm
(8 gpm)
STP files
PFC12-RO SDC12-2 260 bar (3770 psi) 60 lpm
(16 gpm)
STP files
PFC16-RO SDC16-2 260 bar (3770 psi) 85 lpm
(22 gpm)
STP files

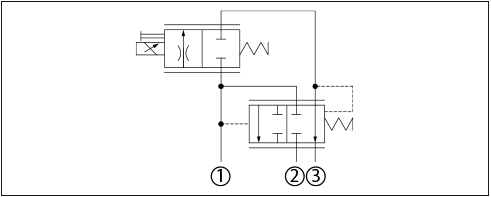

Priority type normally closed

Model code

Cavity

Rated pressure

Rated flow

3D model

PFC10-PC SDC10-3 260 bar (3770 psi) 40 lpm
(11 gpm)
STP files
PFC12-PC SDC12-3 260 bar (3770 psi) 65 lpm
(17 gpm)
STP files
PFC16-PC SDC16-3 260 bar (3770 psi) 85 lpm
(22 gpm)
STP files

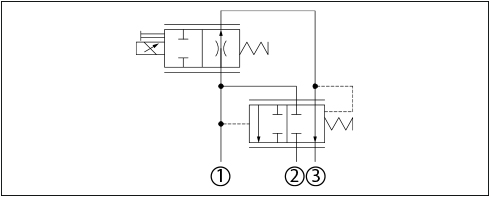

Priority type normally open

Model code

Cavity

Rated pressure

Rated flow

3D model

PFC10-PO SDC10-3 260 bar (3770 psi) 35 lpm
(9 gpm)
STP files
PFC12-PO SDC12-3 260 bar (3770 psi) 70 lpm
(18 gpm)
STP files
PFC16-PO SDC16-3 260 bar (3770 psi) 90 lpm
(24 gpm)
STP files



Proportional flow divider, compensated, catalog HIC

Model code

Cavity

Rated pressure

Rated flow

3D model

PFD10-OD CIB 230 bar (3335 psi) 40 lpm
(11 gpm)
STP files





Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Proportional Valves Technical Information English Multiple 18 Sep, 2020 8.5 MB .pdf
