3-position 4-way proportional directional valves

  • Overview
  • Product range
  • Documents

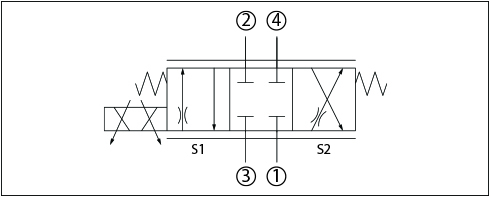

Normally closed

Model code

Cavity

Rated pressure

Rated flow

3D model

PSV10-34-02 SDC10-4 250 bar (3600 psi) 22 lpm
(6 gpm)
STP files
PSV12-34-02 CP12-4 260 bar (3770 psi) 50 lpm
(13 gpm)
STP files

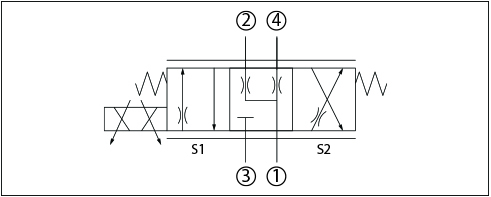

Motor center

Model code

Cavity

Rated pressure

Rated flow

3D model

PSV08-34-05 SDC08-4 240 bar (3500 psi) 12 lpm
(3.2 gpm)
STP files
PSV10-34-05 SDC10-4 250 bar (3600 psi) 22 lpm
(6 gpm)
STP files
PSV12-34-05 CP12-4 260 bar (3770 psi) 60 lpm
(16 gpm)
STP files

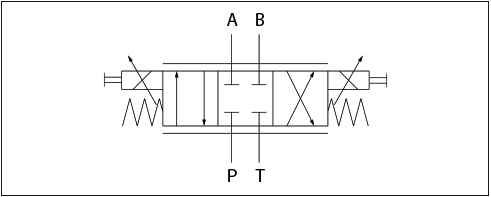

Normally closed (CETOP)

Model code

Cavity

Rated pressure

Rated flow

3D model

PDCV03-3Z11 D03 350 bar (5075 psi) 30 lpm
(8 gpm)
STP files
PDCV05-3Z11 D05 350 bar (5075 psi) 60 lpm
(16 gpm)
STP files

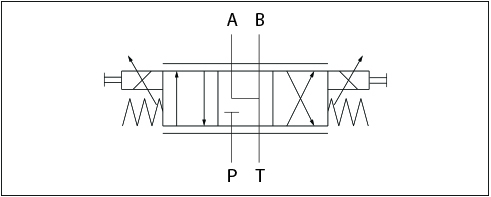

Motor center (CETOP)

Model code

Cavity

Rated pressure

Rated flow

3D model

PDCV03-3Y11 D03 350 bar (5075 psi) 30 lpm
(8 gpm)
STP files
PDCV05-3Y11 D05 350 bar (5075 psi) 60 lpm
(16 gpm)
STP files



Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Proportional Valves Technical Information English Multiple 18 Sep, 2020 8.5 MB .pdf
