Reverse pilot to open check valves

  • Overview
  • Related products
  • Documents

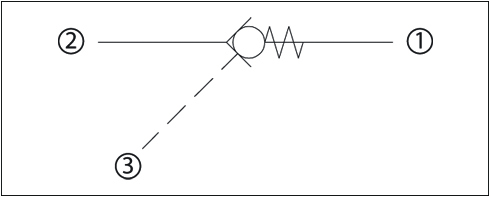

Port 3 pilot

Model code

Cavity

Rated pressure

Rated flow

3D model

CP458-2 SDC08-3 210 bar (3045 psi) 20 lpm
(5 gpm)
STP files
MC10-RO SDC10-3S 250 bar (3600 psi) 45 lpm
(12 gpm)
STP files
CP451-2 CP12-3S 210 bar (3045 psi) 95 lpm
(25 gpm)
STP files
CP452-2 SDC16-3S 210 bar (3045 psi) 130 lpm
(34 gpm)
STP files
CP453-2 CP20-3S 210 bar (3045 psi) 230 lpm
(61 gpm)
STP files

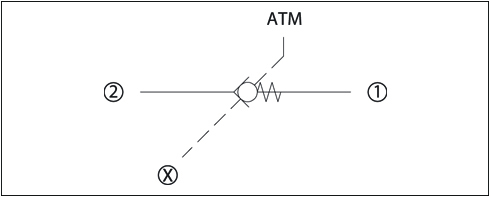

External pilot (with atmospheric vent)

Model code

Cavity

Rated pressure

Rated flow

3D model

CP453-5 SDC20-2 350 bar (5075 psi) 250 lpm
(66 gpm)
STP files



Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Pilot Operated Check Valves Technical Information English Multiple 18 Sep, 2020 1.8 MB .pdf
