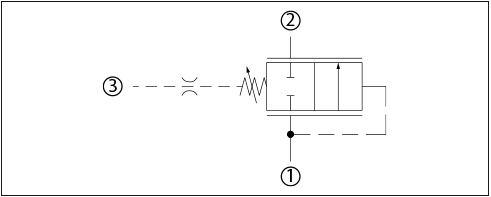

Pilot to close (adjustable)
Model code |
Cavity |
Rated pressure |
Rated flow |
3D model |
| HLEA10-CPC | SDC10-3S | 350 bar (5075 psi) | 80 lpm (21.1 gpm) |
STP files |

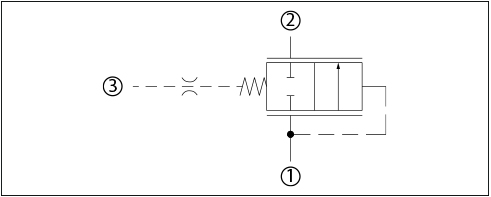

Pilot to close
Model code |
Cavity |
Rated pressure |
Rated flow |
3D model |
| CP700-1 | SDC10-3 | 210 bar (3045 psi) | 50 lpm (13 gpm) |
STP files |
| HLE10-CPC | SDC10-3S | 350 bar (5075 psi) | 82 lpm (21.1 gpm) |
STP files |
| CP701-1 | CP12-3S | 350 bar (5075 psi) | 150 lpm (40 gpm) |
STP files |
| CP702-1 | SDC16-3S | 210 bar (3045 psi) | 190 lpm (50 gpm) |
STP files |
| LE20-CPC | CP20-3S | 210 bar (3045 psi) | 340 lpm (90 gpm) |
STP files |

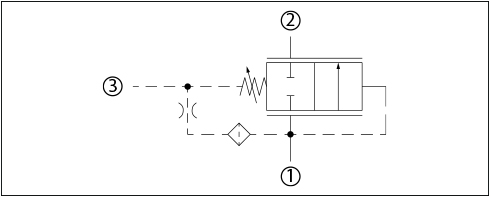

Vent to open (adjustable)
Model code |
Cavity |
Rated pressure |
Rated flow |
3D model |
| HLEA10-CVO | SDC10-3S | 350 bar (5075 psi) | 80 lpm (21 gpm) |
STP files |

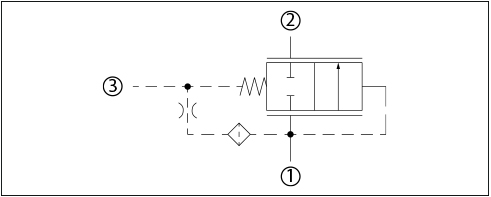

Vent to open
Model code |
Cavity |
Rated pressure |
Rated flow |
3D model |
| CP700-2 | SDC10-3 | 210 bar (3045 psi) | 50 lpm (13 gpm) |
STP files |
| HLE10-CVO | SDC10-3S | 350 bar (5075 psi) | 80 lpm (21.1 gpm) |
STP files |
| CP701-2 | CP12-3S | 350 bar (5075 psi) | 150 lpm (40 gpm) |
STP files |
| CP702-2 | SDC16-3S | 210 bar (3045 psi) | 190 lpm (50 gpm) |
STP files |
| CP703-2 | CP20-3S | 210 bar (3045 psi) | 340 lpm (90 gpm) |
STP files |
Product range
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| User guide | ICS Logic Elements Technical Information | English | Multiple | 22 Dec, 2022 | 6.8 MB |
