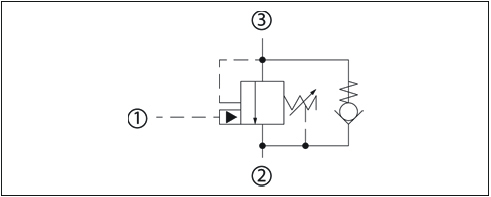

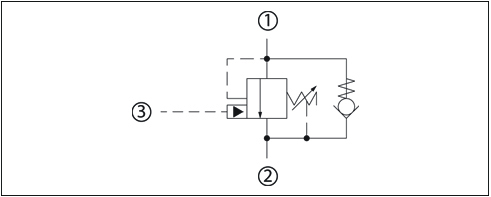

Port 3 pilot
| Model code | Cavity | Rated pressure | Rated flow | 3D model |
| CP448-1 | CP08-3L | 350 bar (5075 psi) | 20 lpm (5 gpm) |
STP files |
| CB10-HV | SDC10-3S | 350 bar (5075 psi) | 60 lpm (16 gpm) |
STP files |
| CP441-1 | CP12-3S | 350 bar (5075 psi) | 115 lpm (30 gpm) |
STP files |
| CB20-HV | CP20-3S | 345 bar (5000 psi) | 266 lpm (70 gpm) |
STP files |
Product range
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| User guide | ICS Counterbalance Valves Technical Information | English | Multiple | 18 Sep, 2020 | 9.3 MB |
