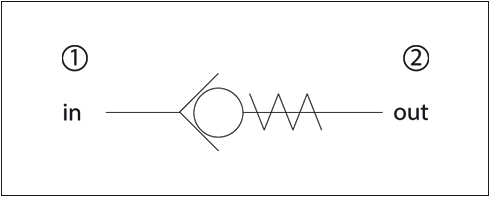

Normal direction check valve

  • Overview
  • Product range
  • Documents

Poppet type

Model code Cavity Rated pressure Rated flow  3D model
CV08-NP SDC08-2 350 bar (5075 psi) 38 lpm
(10 gpm)
STP files
CV10-NP SDC10-2 350 bar (5075 psi) 80 lpm
(21.1 gpm)
STP files
CP102-1 SDC16-2 315 bar (4570 psi) 210 lpm
(55.5 gpm)
STP files
CP103-1 SDC20-2 215 bar (3120 psi) 330 lpm
(87.2 gpm)
STP files

Slip-in

Model code Cavity Rated pressure Rated flow  3D model
3C50-01 FC-144 210 bar (3045 psi) 70 lpm
(19 gpm)
STP files
3C60-01 FC-144 140 bar (2000 psi) 70 lpm
(19 gpm)
STP files
3C80-01 FC-304 140 bar (2000 psi) 190 lpm
(50 gpm)
STP files
3C90-01 FC-304 210 bar (3045 psi) 190 lpm
(50 gpm)
STP files

Ball type

Model code Cavity Rated pressure Rated flow  3D model
CV04-NB CP04-2 210 bar (3000 psi) 3 lpm
(0.8 gpm)
STP files



Documents

Documents
Type Name Language Valid for Updated Download File type
User guide ICS Check Valves Technical Information English Multiple 18 Sep, 2020 2.6 MB .pdf
