Cleaner, safer cuts with less smoke and debris
Danfoss offers innovative saws, blades and precision cutting tools designed to ensure the success of your hose assembly operation.
- Modern blade technology for cleaner, safer cuts
- Smooth and dependable operation
- Robust construction
- Multiple blade options
ET9000 series portable hydraulic hose saw
Danfoss brings portability and affordability to your field operations with our new ET9000 series portable hydraulic hose saw. Built off the platform of an angle grinder, this easy to transport lightweight saw is a smart, low-cost solution for smaller hose assembly shops and portable applications.
- Lightweight – just 12 lbs. and ideal for cutting hose in the field
- Built to cleanly cut up to ¾ inch two-wire braided hose and comes standard with our 4.5 inch micro-slotted clean-cuts blade
- Low cost and effective solution for automotive, agricultural, maintenance departments, municipalities, and mobile applications
- Available in convenient package options including portable crimper

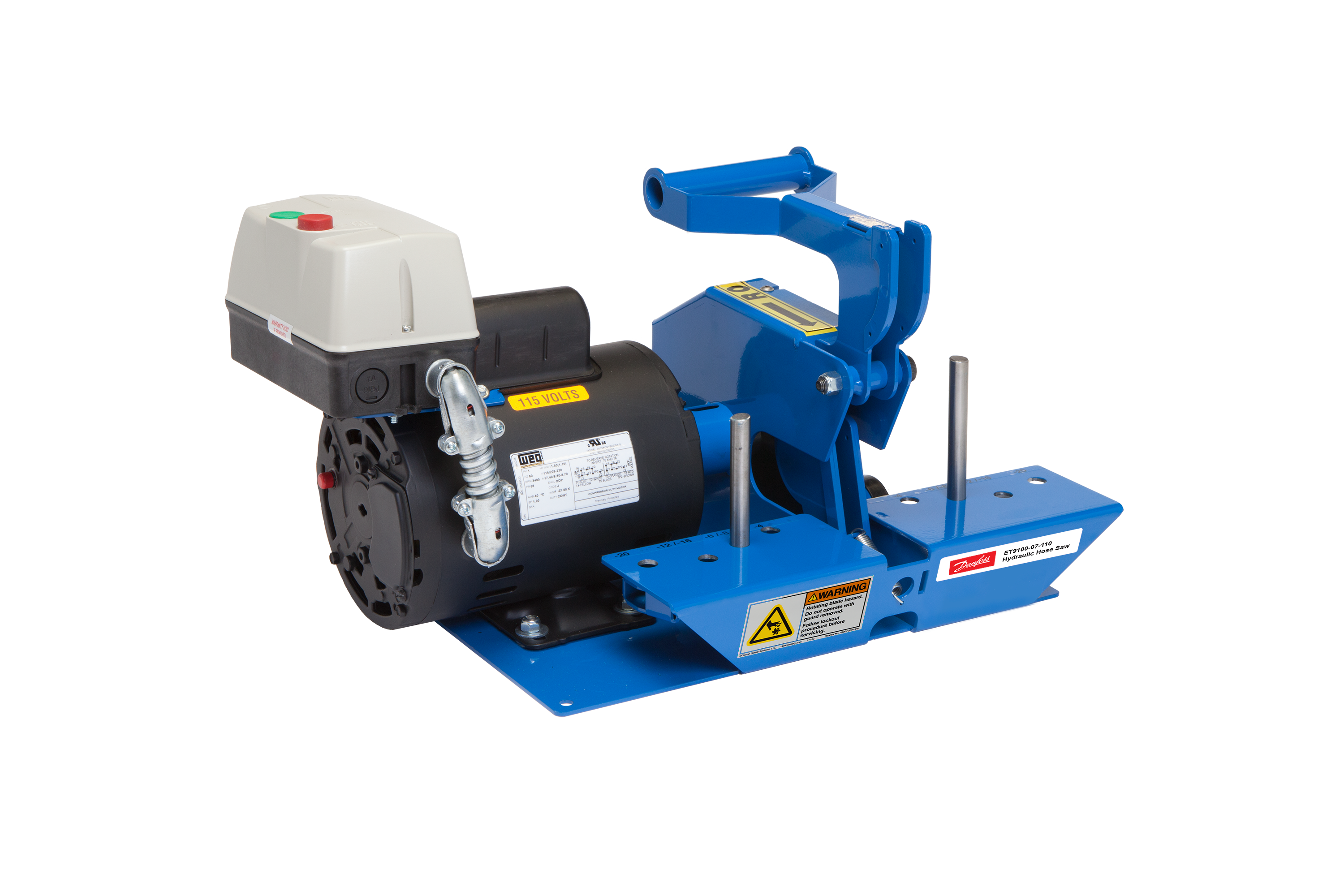

ET9100 hose saw
The Danfoss ET9100 7" hydraulic hose saw is designed to produce cleaner, safer cuts and is capable of cutting 1 1/4" ID 4-wire spiral hose.

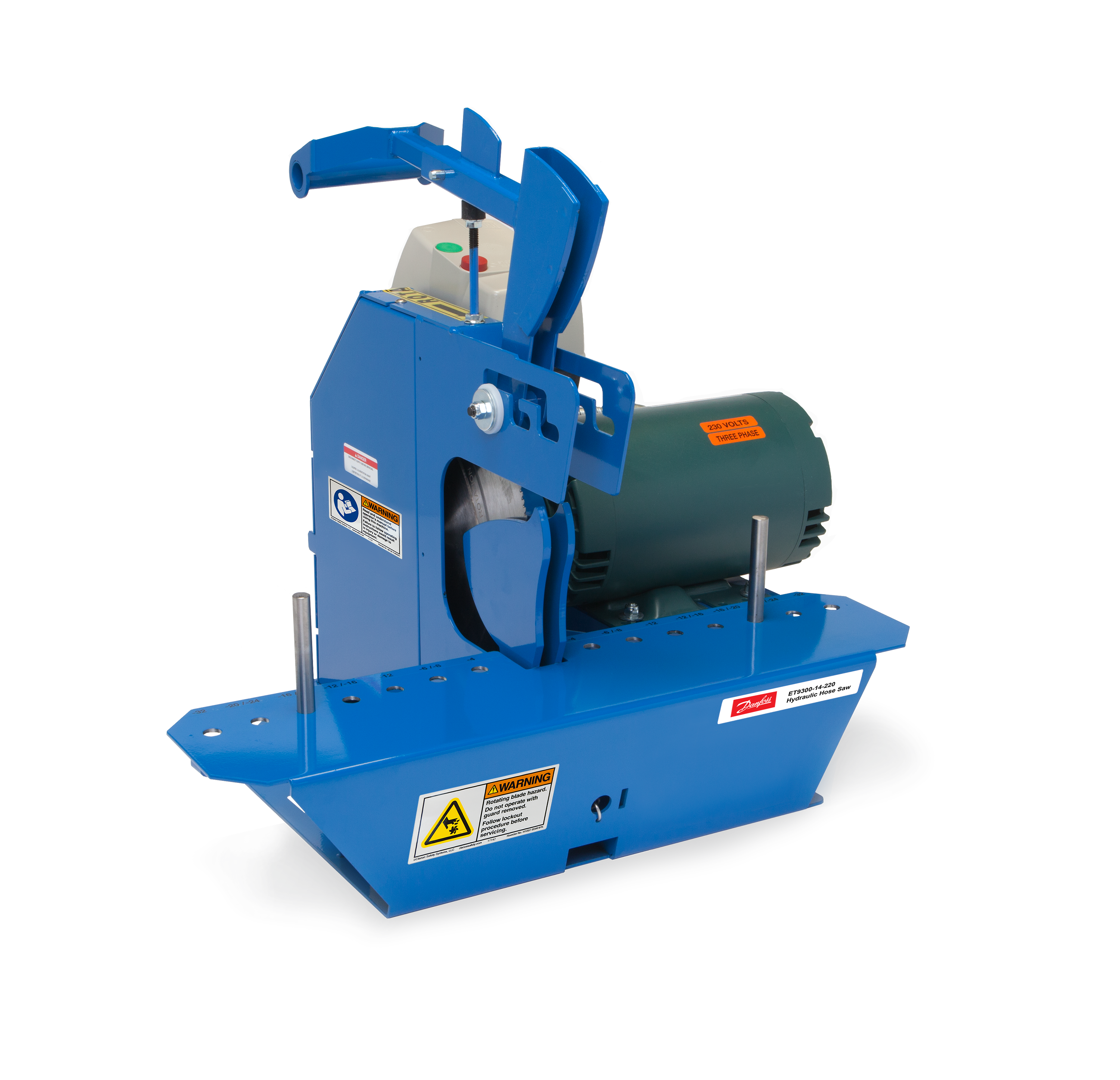

ET9300 hose saw
The Danfoss ET9300 14" hydraulic hose saw is designed to produce cleaner, safer cuts and is capable of cutting 2" ID 6-wire spiral and 5" OD industrial hose.

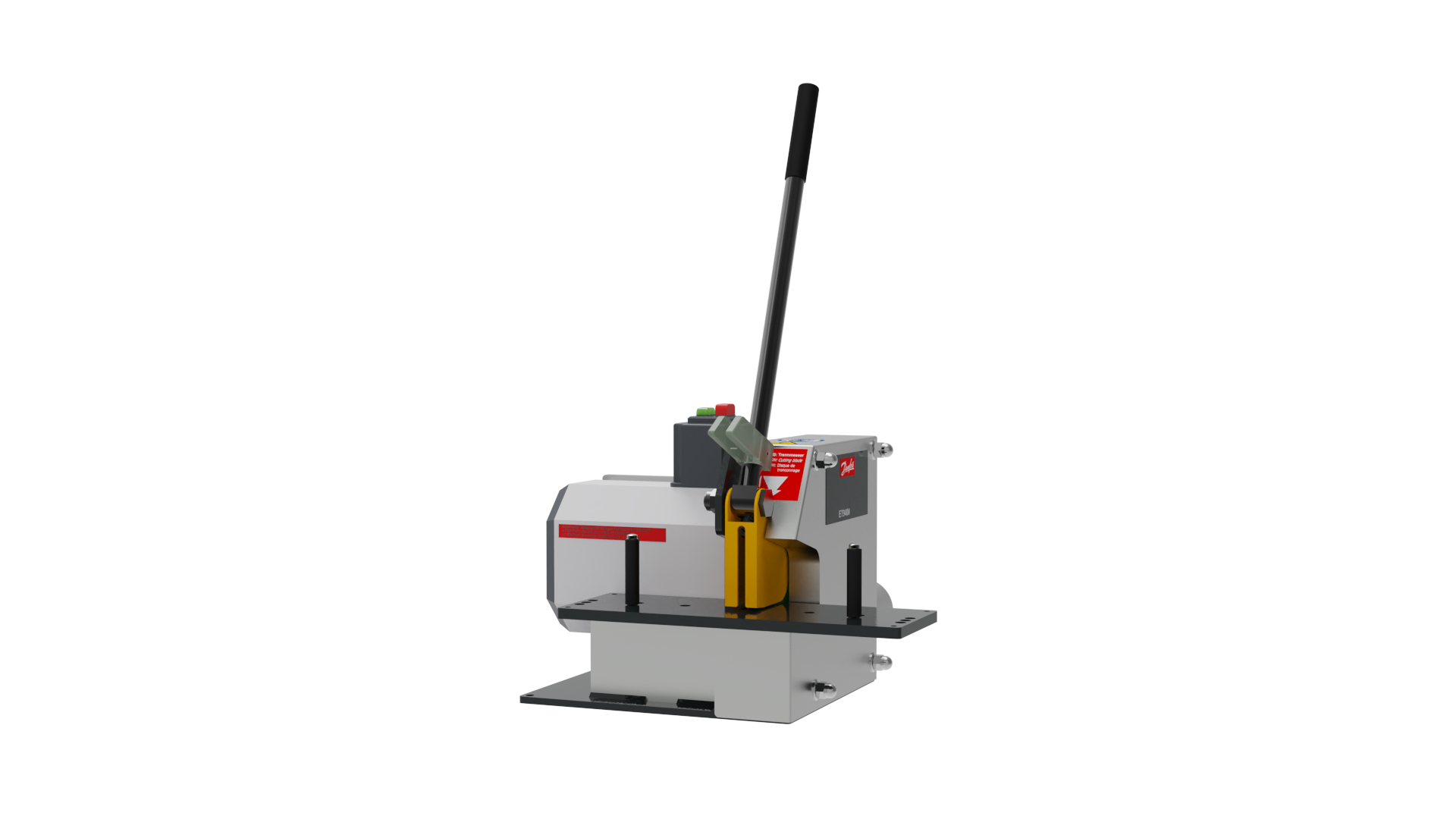

ET9400 manual cutting machine
Portable, easy to use, and designed for maximum safety, the ET9400 is a manual hose cutting machine for workshop use that also enables cost-effective field servicing. With a 3 kW drive, the ET9400 is suitable for hydraulic hoses up to 1¼” in size.

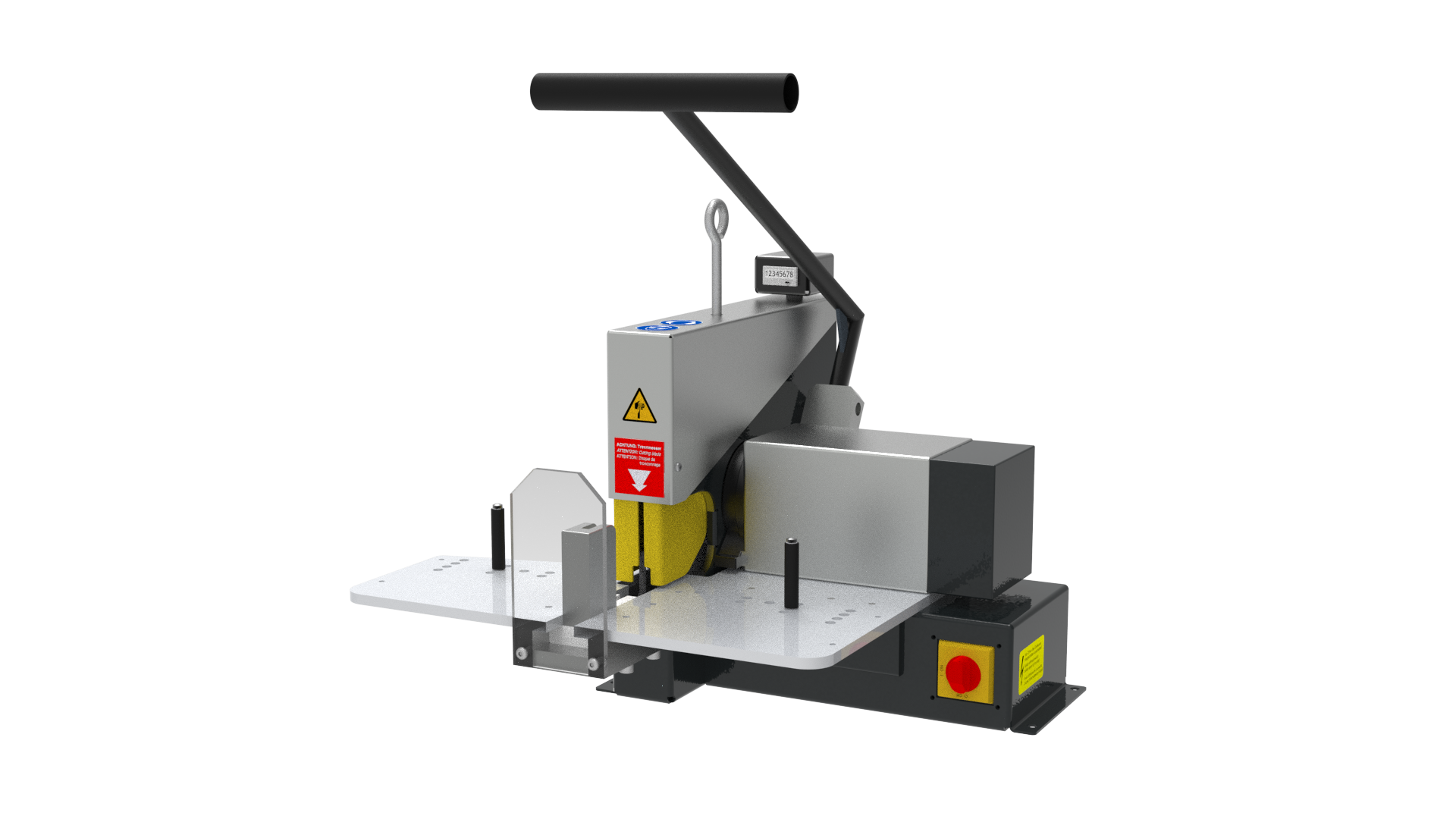

ET9500 and ET9550 workshop cutting machine
Designed for workshop use, our manual ET9500 and pneumatic ET9550 cutting machines support a wide range of the most common hose sizes at a reasonable price. They are suitable for hydraulic hoses up to 2” and a model that supports 3” industrial hoses is also available.

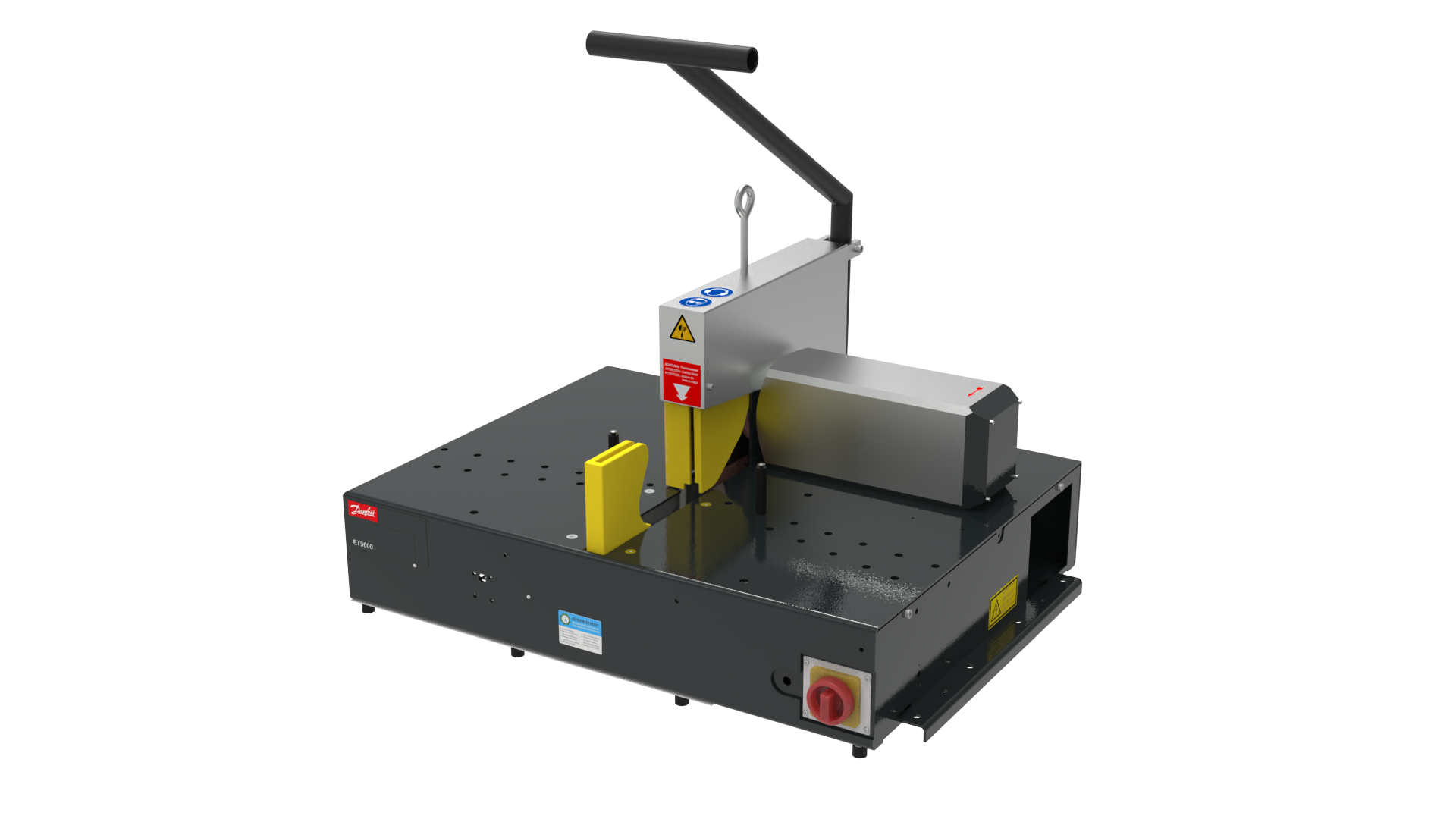

ET9600 and ET9650 workshop cutting machine
The manual ET9600 and pneumatic ET9650 cutting machines can easily cut heavier hoses or those with up to six spiral layers. These machines ensure optimum cutting results thanks to their uniquely low motor vibration and are suitable for hydraulic hose assemblies up to 2½” and industrial hose assemblies up to 4”.

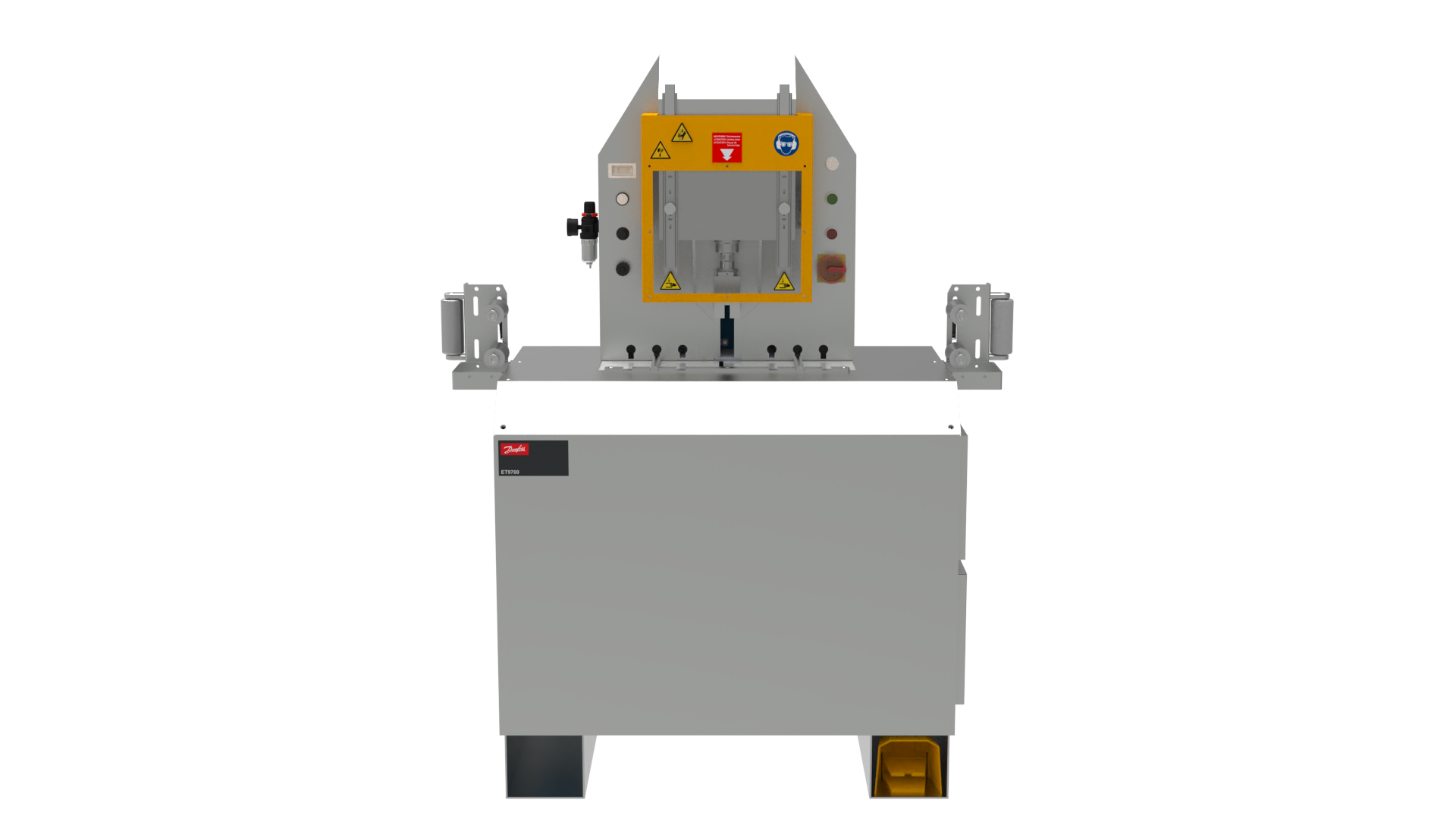

ET9700 production cutting machine
The ET9700 cutting machine can support high volume manufacturing across a broad range of hose sizes and construction types. With a 7.5 kW motor, the ET9700 is best suited to high-volume manufacturing of 2” hoses, along with a workshop capability for 3” high pressure hoses and 3” industrial hoses.
ET6100 skiving machine
The ET6100KT is a two-step workshop skiving machine for all types of hoses and fittings. It is suitable for skiving hoses from 5/8” to 2” on the inside and from 3/16” to 2” on the outside. User-friendly controls and fast change over times optimize the process, while an easy-to-open protective cover and safety flap reduce the risk of injury. The ET6100KT also includes a 2-year warranty.

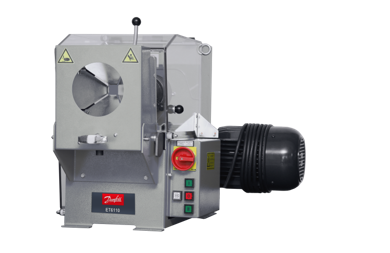

ET6110 skiving machine
The ET6110KT enables simultaneous internal and external hose skiving, completing the process in one efficient operation for higher productivity. It is suitable for skiving hoses from 3/4” to 2” on the inside and from 1/4” to 2” on the outside. User-friendly controls and fast change over times further optimize the process, with foot pedal motor control allowing the operator to use both hands to guide the hose. An easy-to-open protective cover and safety flap also reduce the risk of injury. The ET6110KT includes a 2-year warranty.
Hydraulic hose blades
Choosing the ideal blade for cutting hydraulic hose depends greatly on the saw you are using, the type of hose you are cutting and the production rates you require.
Danfoss offers several types of blades designed to cut hydraulic and industrial hose. If you’re not sure which is best suited to your application please call us for our recommendation.
In our digital catalog you can find product specifications, literature and helpful tools like product configurators, 2D/3D models, cross reference, crimp specs and many more.
