TR 6 thermostatic expansion valves, fixed orifice

Product store
  • Overview
  • Documents
  • Software
  • Related products
  • Related applications
Product store

Hermetically tight expansion valve for today's and tomorrow's refrigerants

TR 6 thermostatic expansion valves are designed and developed for ducted split (US residential) air conditioning and light commercial air conditioning systems. With the TR 6 you get a hermetically tight design which meets the environmental demands of today and tomorrow and can be used for all fluorinated refrigerants.

The TR 6 design incorporates a hot-pressed brass body with the entire power element, including the capillary tube and bulb, fabricated from stainless steel. The valve is supplied as standard in straightway version with fixed orifice and external equalization.

The valve can be delivered with or without internal check valve and with an external superheat adjustment spindle for field retrofit. The TR 6 valve has a balanced port design to reduce the influence from varying condensing pressures.

Features and benefits

Compact size, hermetic design

Laser-welded power element for long service life and high pressure tolerance

Stainless steel capillary tube, for easy installation and vibration resistance

Adjustable or non-adjustable superheat for customer specific factory setting

Solder or mechanical connections

UL certified

Close-up image of the silver thermostatic expansion valve being used as the brochure cover for the overview of Danfoss thermostatic expansion valves (TXVs)

Achieve the highest precision flow control – regardless of the system conditions

Danfoss’ range of thermostatic expansion valves are designed to ensure a precise control of the injection of refrigerant liquid into evaporators. This brochure contains an overview of our thermostatic expansion valves.

Download the brochure

Documents

Documents
Type Name Language Valid for Updated Download File type
Brochure Overview Brochure Thermostatic Expansion Valves English Multiple 18 Sep, 2023 7.2 MB .pdf
Installation guide Thermostatic expansion valve Type TR6 English Multiple 02 Nov, 2023 640.1 KB .pdf
Case story TR 6 Case Story Universal Kits English Multiple 27 May, 2015 72.6 MB .pdf

Software

Coolselector®2 app icon

The truth is Cool(selector®2)

Coolselector®2 features unbiased calculations for the selection of refrigeration and air conditioning components based on the user’s requirements or based on standard operating conditions.



Try Coolselector®2 now

Related products

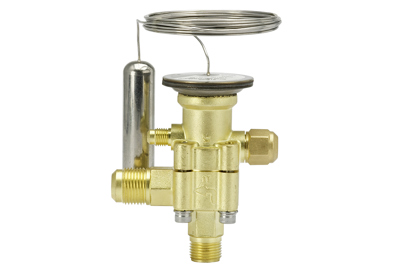

  • if (isSmallPicture) { Product photo of the TE 5 Thermostatic expansion valve by Danfoss; } else if (isBigColumns) { Product photo of the TE 5 Thermostatic expansion valve by Danfoss } else { Product photo of the TE 5 Thermostatic expansion valve by Danfoss }
    TE 5-55 thermostatic expansion valves, exchangeable orifice

    TE 5-55 thermostatic expansion valves are used for liquid injection into evaporators on both refrigeration and air conditioning systems using fluorinated refrigerants.

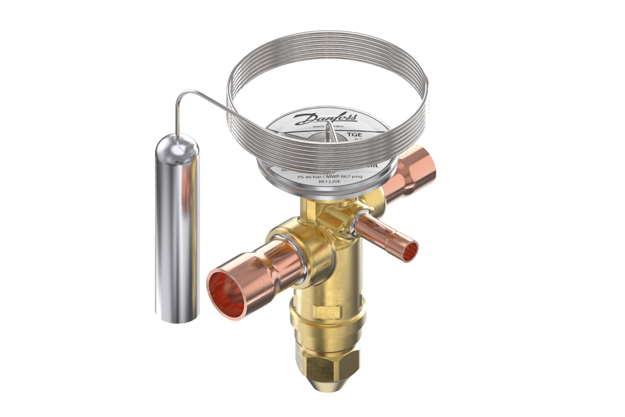

  • if (isSmallPicture) { Product photo of the TGE thermostatic expansion valve by Danfoss; } else if (isBigColumns) { Product photo of the TGE thermostatic expansion valve by Danfoss } else { Product photo of the TGE thermostatic expansion valve by Danfoss }
    TGE thermostatic expansion valves, fixed orifice

    TGE is an innovatively designed series of thermostatic expansion valves for fluorinated refrigerants. TGE has copper connections upgraded to high-pressure applications for hermetically tight soldering, and is available with a wide variety of connection types and sizes.

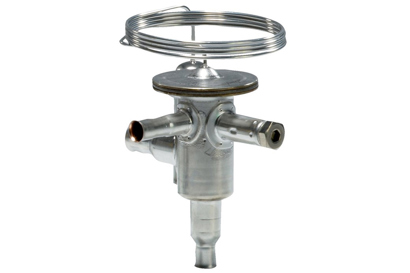

  • if (isSmallPicture) { TU thermostatic expansion valves - Danfoss; } else if (isBigColumns) { TU thermostatic expansion valves - Danfoss } else { TU thermostatic expansion valves - Danfoss }
    TU thermostatic expansion valves, fixed orifice

    TU stainless steel thermostatic expansion valves are used for liquid injection into evaporators on both refrigeration and air conditioning systems using fluorinated refrigerants.

  • if (isSmallPicture) { Product photo of the T2/TE2 thermostatic expansion valve by Danfoss; } else if (isBigColumns) { Product photo of the T2/TE2 thermostatic expansion valve by Danfoss } else { Product photo of the T2/TE2 thermostatic expansion valve by Danfoss }
    T2/TE2 thermostatic expansion valves, exchangeable orifice

    T2/TE2 thermostatic expansion valves are used for liquid injection into evaporators on both refrigeration and air conditioning systems using fluorinated refrigerants. T2/TE2 is supplied with an interchangeable orifice assembly for easy stocking and service.
